40W COB LED Beam Direction Adjustable Recessed Inground Lights

The beam angle direction adjustable XB2H-series In-ground is designed for floor integration and offers various design possibilities in architectural illumination. Optional Dimmable, autom. colour change, DMX 512, DALI, 0/1-10 V controllable by COMI Lighting recommended power supply, driver,dimmer, RGB or RGBW controller and etc.

Features and Benefits:

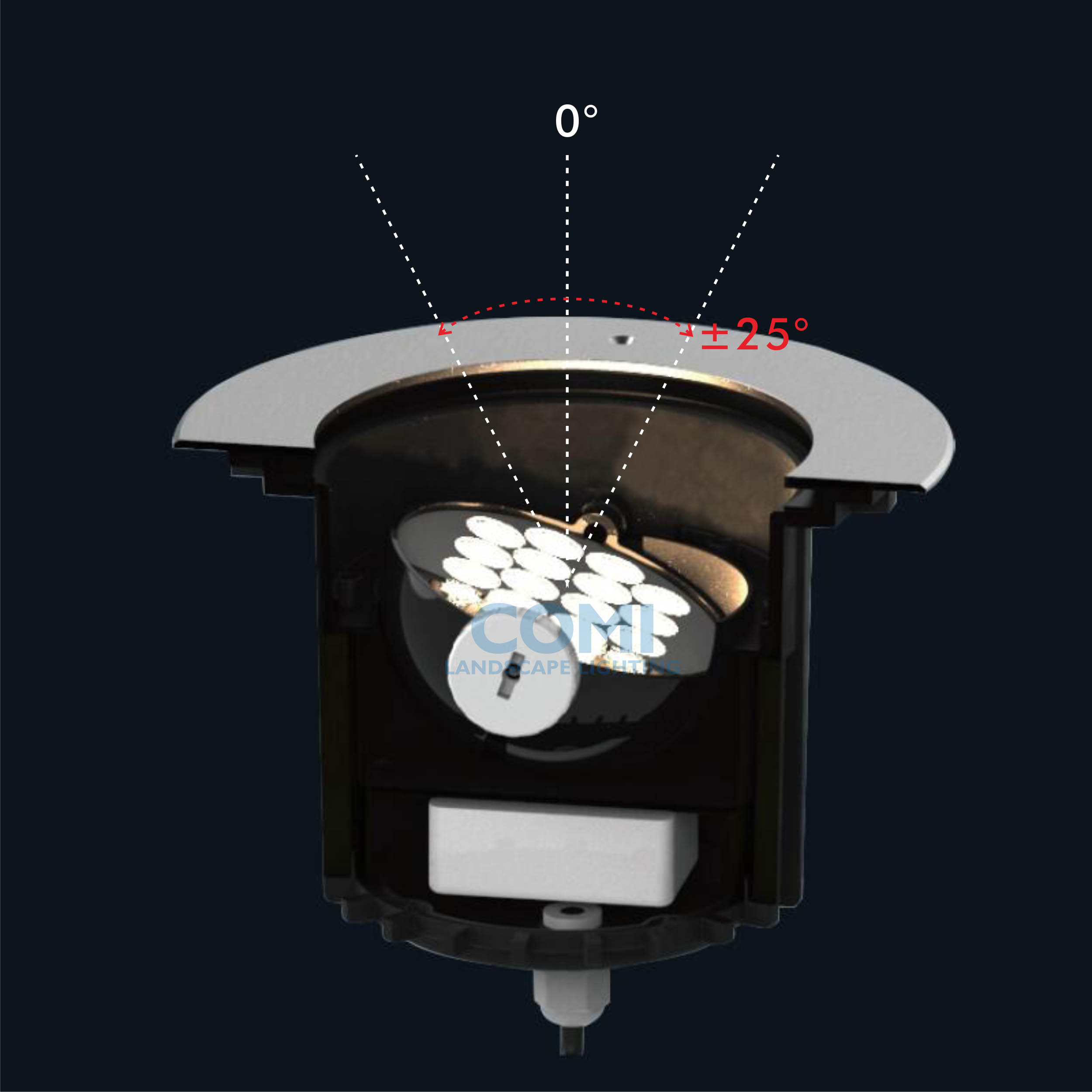

▪ Beam irection adjustable:
(1) Beam direction angle ±25degree tiltable;
(2)A simplicity of wider angle Adjustment according to the environment require to adjust the angle of light .
▪ With 1piece 40W Cree COB LED and CRI80+ as it light source.
▪ Lighting fixture with lens and beam angle available: 18°,24°,38°, 60°.
▪ Optional anti-glare honey comb louver for soft Light.
▪ CCT(K): 2200-6500K
▪ Input Voltage 24 VDC or 110/240VAC
▪ SUS 316 stainless steel front ring and aluminum lamp housing.
▪ Basic is Non-dimmable by PWM, 0/1-10V .
  (Optional PWM, 0/1-10V, DALI dimmable or DMX512 controllable support ).
▪ ABS mounting sleeve is included.
▪ IP classification IP67 for outdoor use.
▪ 2 Years warranty.

CE ROHS for beam direction adjustbale led inground lights

General Parameters:

Part Number Light Source Color or Kelvin Beam Angle

Input
Voltage

Power

Luminous Flux
(lm)

IK Rate
XB2HFR0140


1x40W
 CREE COB LED


2200-6500K
18°,24°,
38°,60°
24VDC 36.2W
Cool whie=2555LM
Warm White=2172LM
IK10
XB2HFR0140
1x40W
 CREE COB LED
2200-6500K
18°,24°,
38°,60°


110-120VAC
220-240VAC


36.5W
Cool whie=2555LM
Warm White=2172LM
IK10

Note: Specifications are subjected to change without notice.

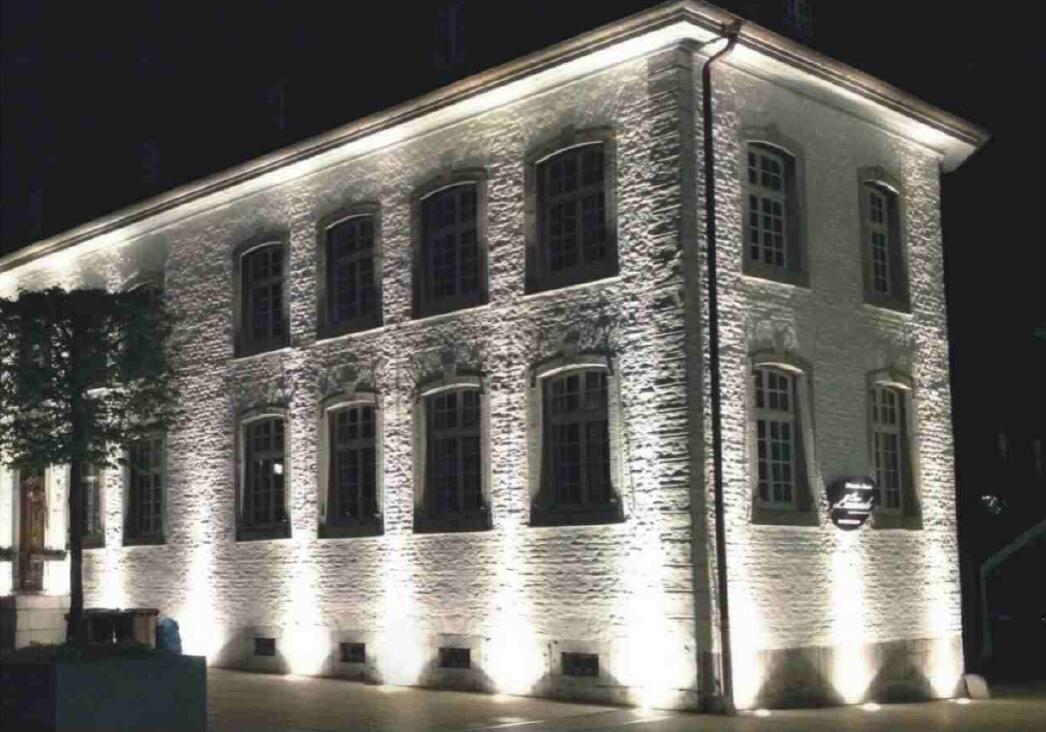

Lighting effect for beam angle adjustable LED inground lights.jpg





More Options:

More options for LED inground lights
