COMI Lighting Limited

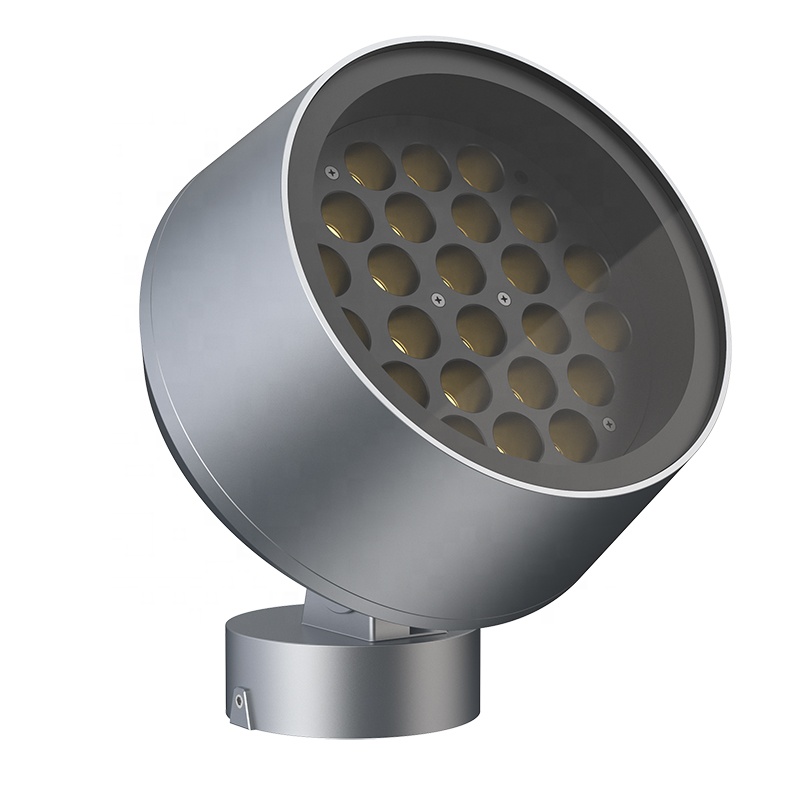

24x3W CREE LED Landscape Flood Lights in Mono/ RGB/ RGBW Color

COMI Landscape lighting's B3Q is a an ideal LED architectural and landscape lighting for large buildings and objects. The round and conically-shaped luminaire housing which provides outstanding visual confort with good shielding properties. With various lens types and lens angle for options, the family of luminaires consists of several sizes with diverse light distributions-ranging from narrow spot, and wide flood to homogeneous wallwashing. Its circular design means the luminaire can be flexibly used in highly different room situations, architectural styles and other landscape objects. The pan-and-tilt mounting plate enables the luminaires to be precisely aligned for projection angle. Optional PWM, 0-10V, DALI, DMX512 dimming or control support upon request. IP65 rated and weather-proof housing design. B3Q features extensive mounting accessories the luminaire is also easy to install in a wide variety of outdoor applications.

Features and benefits:
▪ 24pcs*2W(Mono or tunable white), 3W(RGB) or 4W(RGBW) Cree LED as its light source.
▪ 70-80LM/W (high light efficiency 100-120LM/W is available upon request).
▪ Standard input voltage is 24Vdc or 220-240Vac (110-120Vac is available).
▪ High luminous flux and maximum visual comfort for lighting tasks in the outdoor area.
▪ Light distributions: narrow spot, spot, flood, or wall-wash.
▪ The luminaire is with round base for wall/ceiling/ ground surface mounted;
  also provides extensive mounting accessories for options:
  (1) Ground spike;.
  (2) Screw fixed pole mounting Bracket;
  (3) Mounting Bracket with stainless steel tree strap;
  (4) Extended pole(300/500/800/1000mm) with round base (fixed by screws) or spike.
▪ Mono color, tunable white color, RGB, RGBW are available.
▪ Optional anti-glare light accessories: honey comb louver, honeycomb glass and filter.
▪ Finished color: grey and black.
▪ Multiple direction adjustable for projection direction.
▪ With pan-and-tilt mounting plate for precisely aligned for projection angle.
▪ PWM, 0/1-10V, DALI, DMX 512, TRIAC dimming or control are available upon request.
▪ IP65 rated and weather-proof.
▪ Standard 3 years warranty. (5 years warranty available).

ce rohs etl led architectural and lanscape flood spot lights

Material Specifications:

Housing 12 Die-casting grey or black powder coated aluminum.
T=50-55μm . Adhesion of ISO class 1/ASTM class 4B
Light Window Clear Temper glass.
Lens Optical lens, efficiency≥90%
LED CREE, OSRAM, EPISTAR and etc LED
PCB Excellent heat conductivity aluminum, coefficient of
Heat Conductivity≥2.0w/mk
LED Driver Integrated  LED driver with Constant current output
Operating Temperature
-20℃~+40℃
Round Base (included)
Aluminum
Support DALI, 0~10V,PWM, DMX512 control support upon request.



Technical Specifications:

Item Number

Control
Method
Light Source CRI


Optional  Beam
Angle(°)


Input Voltage

Typical Power

Typical Luminous
Flux(lm)
IK
Rate
B3QGM2458
ON/OFF
24×3W
CREE LED
Single Color
Ra>80
6°, 12°,
25°,40°, 60°
24VDC
110-120VAC
220-240VAC
24V=42
110V=42
240V=42
Cool White=3150
Warm White=2677
IK10
B3QGM2418
PWM
24×3W
RGB 3-in-1
Full Color
/
6°, 12°,
25°,40°, 60°
24VDC 66
1331 IK10
B3QGM2418DMX
DMX
24×3W
RGB 3-in-1
Full Color
/
6°, 12°,
25°,40°, 60°
24VDC
66
1331 IK10
B3QGM2420
PWM
24×4W
RGBW 4-in-1
Full Color
/
6°, 12°,
25°,40°, 60°
24VDC
76 2180
IK10
B3QGM2420DMX
DMX
24×4W
RGBW 4-in-1
Full Color
/
6°, 12°,
25°,40°, 60°
24VDC
76 2180
IK10
B3QGM0410
ON/OFF
4×10W
CREE COB LED
Single Color
Ra>80

18°, 24°,

38°, 60°

24VDC
110-120VAC
220-240VAC
24V=42
110V=42
240V=4
Cool White=3280
Warm White=2812
IK10

Notes:
1. Optional color or Color Temperature for single color: Very warm white(2200k), Warm White(2700-3000K)/ Neutral White(4000-4500K)/Cool White(6000-6500K)/Red /Blue /Green/RGB/RGBW and others.
2. DMX512, TRIAC, PWM, DALI,0/1-10V dimming or controllable support upon request;
3. Specifications are subjected to change without notice.



Optional Various Optical Accessories for 0/1-10V, DALI,TRIAC,PWM dimming or DMX512 control Mono/ RGB/ RGBW LED Architectural and Landscape Flood / Spotlights:


Optional Various Optical Accessories for 0-10v DALI TRIAC PWM dimming or DMX512 control architectural and landscape flood or spotlights

Note:
These lighting accessories enables the luminaire with soft light or anti-glare light output.



Optional extensive mounting accessories enables the luminaire to install in a wide variety of outdoor applications:


extensive accessories for led architectural and landscape flood spotlights for variety outdoor applications
