The depth illuminant GB2HB-series In-ground is designed for floor integration and offers various design possibilities in architectural illumination. Optional Dimmable, autom. colour change, DMX 512, DALI, 0/1-10 V controllable by COMI Lighting recommended power supply, driver,dimmer, RGB or RGBW controller and etc.
Features and Benefits:

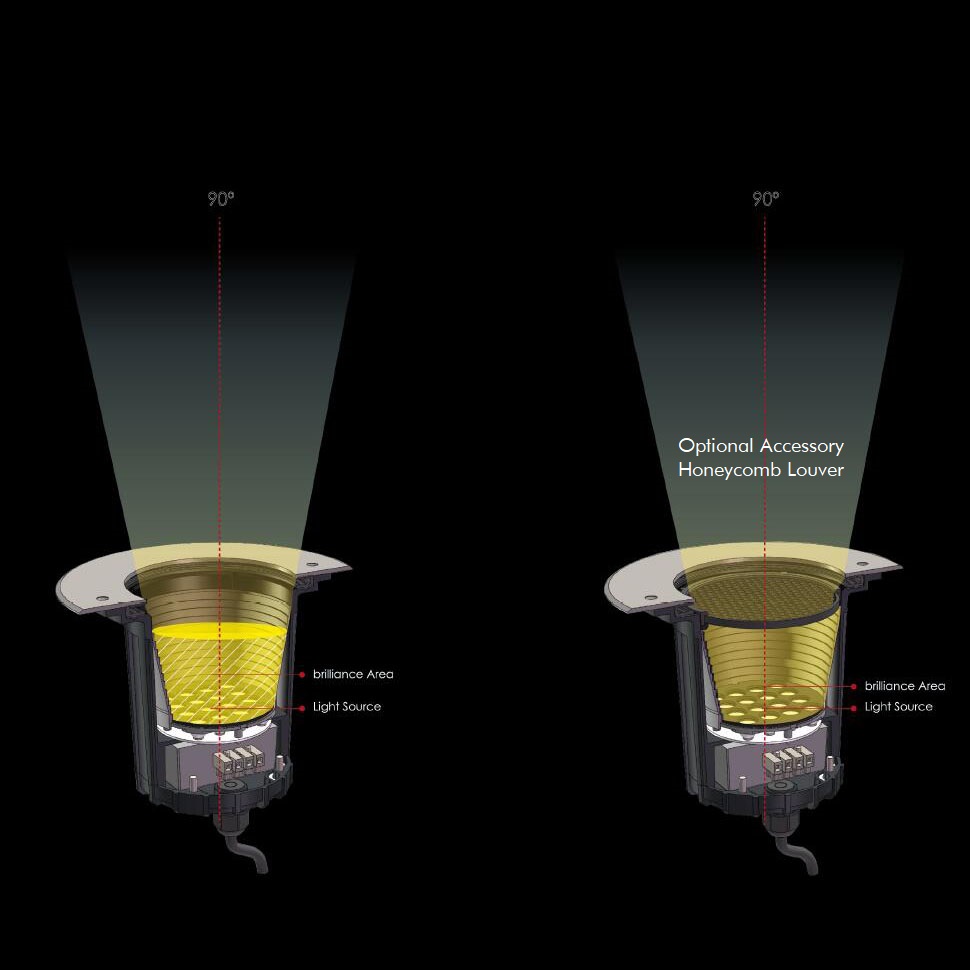

▪ Depth illuminant:
(1)The light source is placed in a deep position of lighting fixture.
(2)Brilliance area is controlled within the inner of the lighting fixture.
(3)Small view degree up light.
▪ Optional anti-glare honey comb louver for soft Light.
▪ Single color, RGB, RGBW color for options.
▪ Input Voltage 24 VDC or 110/240VAC

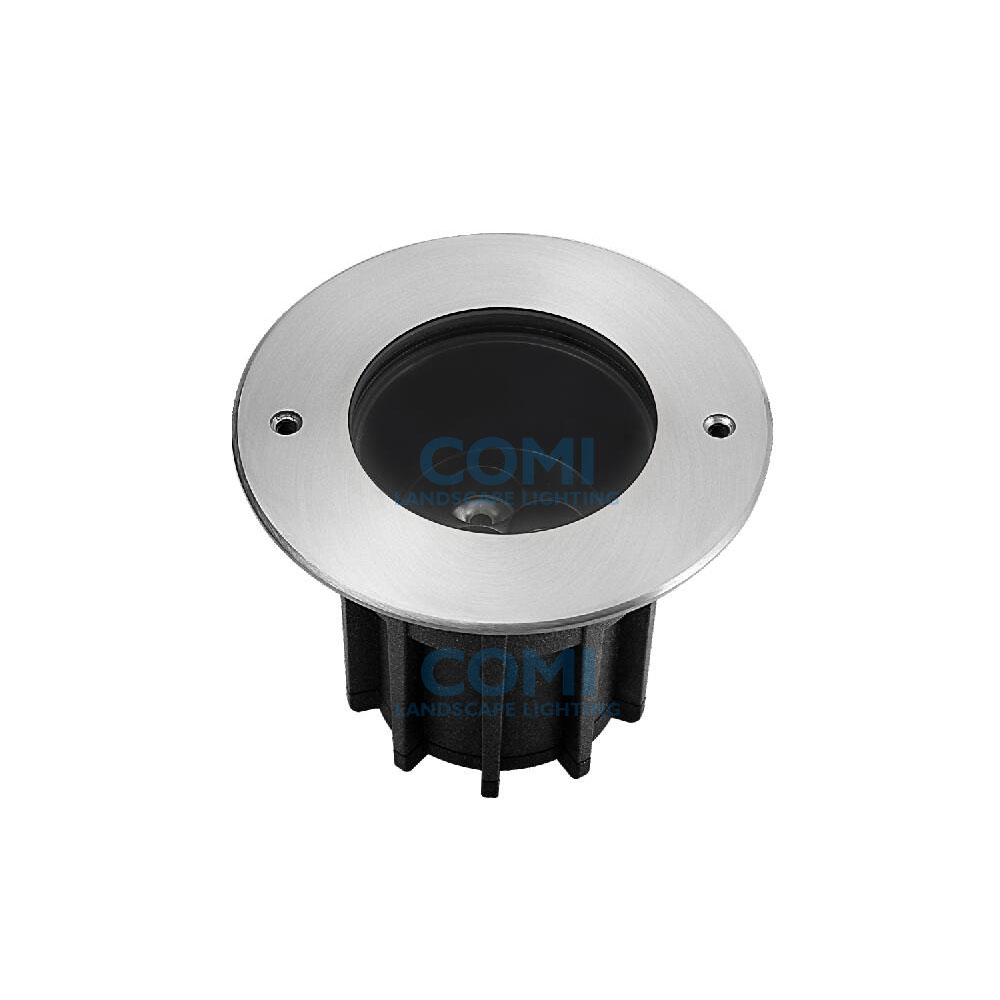

▪ SUS 316 stainless steel front ring and aluminum lamp housing.
▪ Full area glass pressure capacity>2526KGs.
▪ Basic is Non-dimmable by PWM, 0/1-10V .
(Optional PWM, 0/1-10V, DALI dimmable or DMX512 controllable support ).

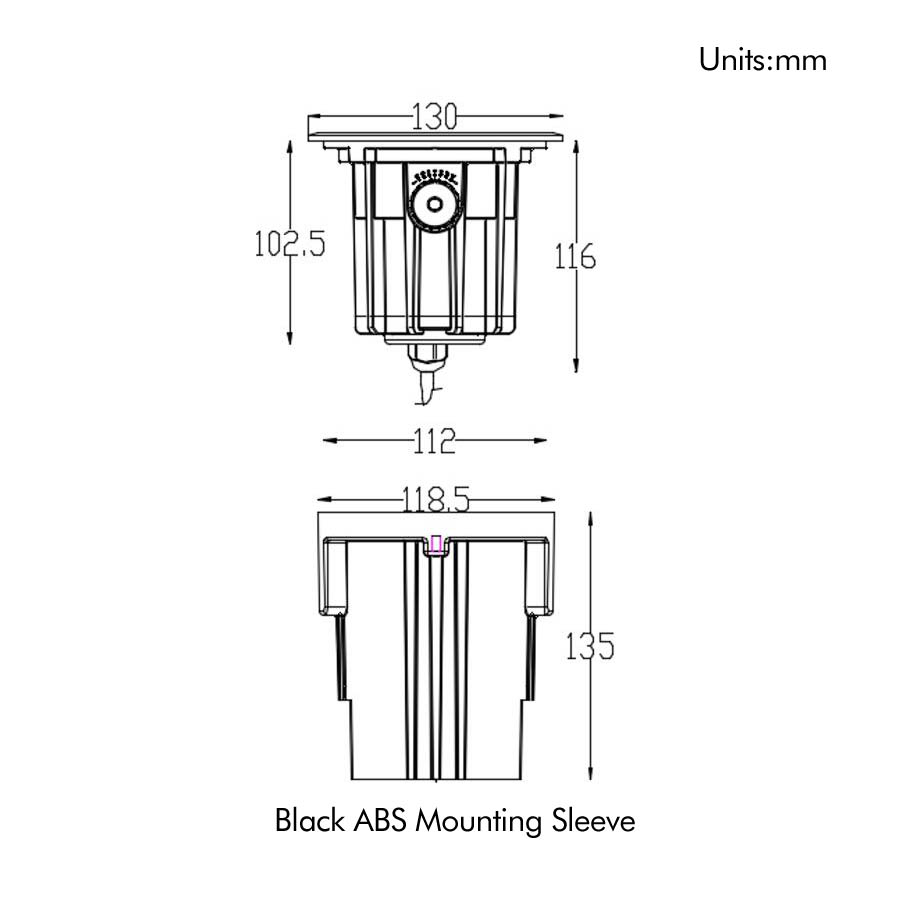

▪ ABS mounting sleeve is included.
▪ IP classification IP67 for outdoor use.
▪ 2 Years warranty.
Material Specifications:
Front Cover | Stainless Steel SUS 316L# |
Housing |
12#Die-Casting grey powder coated aluminum. T=60-80μm Adhesion of ISO class 1/ASTM class 4B |
Light Window |
Step tempered glass.T=8mm |
Lens |
Optical lens efficiency≥90% |
LED |
OSRAM LED, 350mA=1W, 700mA=3W |
Gasket |
Molding shaped silicone seal |
Driver |
Constant Current Output |
Operating Temperature |
-20˚C~40˚C |
Electrical Connection |
0.5 m H05RN-F 2×1.0 mm² to open wires (Low Voltage) 0.5 m H05RN-F 3× 0.75 mm² to open wires (High Voltage) 0.5 m H05RN-F 4× 0.75 mm² to open wires (RGB) |
Mounting Sleeve(Included) |
ABS |
Control Support |
Optional PWM, 0/1-10V, DALI dimmable or DMX512 controllable support |
Technical Specifications:
Item No. | Light Source | Lens Degree | Input Voltage |
Typical Operating
Current(mA)
|
Typical Power
Consumption(W)
|
Typical Output
Luminance (lm) |
IK Rate |
GB2HBR0358 |
3×2W
Single Color
|
10°, 25°, 40°, 60° |
24VDC
120/240Vac |
24V=275
110V=62 240V=31 |
24V=6.6
110V=6.8 240V=6.8 |
Cool White=390
Warm White=366
|
10 |
GB2HBR0318 |
3×3W
RGB 3-in-1 Full Color |
10°, 25°, 40°, 60° |
24VDC | 392 | 9.4 | 186 | 10 |
GB2HBR0320 |
3×4W
RGBW 4-in-1 Full Color |
10°, 25°, 40°, 60° |
24VDC | 483 | 11.6 | 291 | 10 |
Notes:
1. DMX512 version for RGB and RGBW color is available.
2. Specification is subjected to change without prior to notice.
