LT-904 4CH CV DMX Decoder RJ45 DMX signal Input and Output Port

Features and Benefits:
▪ Designed with 4 channels output, and Max. 6A current per channel, up to 576W output power.
▪Easy operation with digital display and the touch buttons.

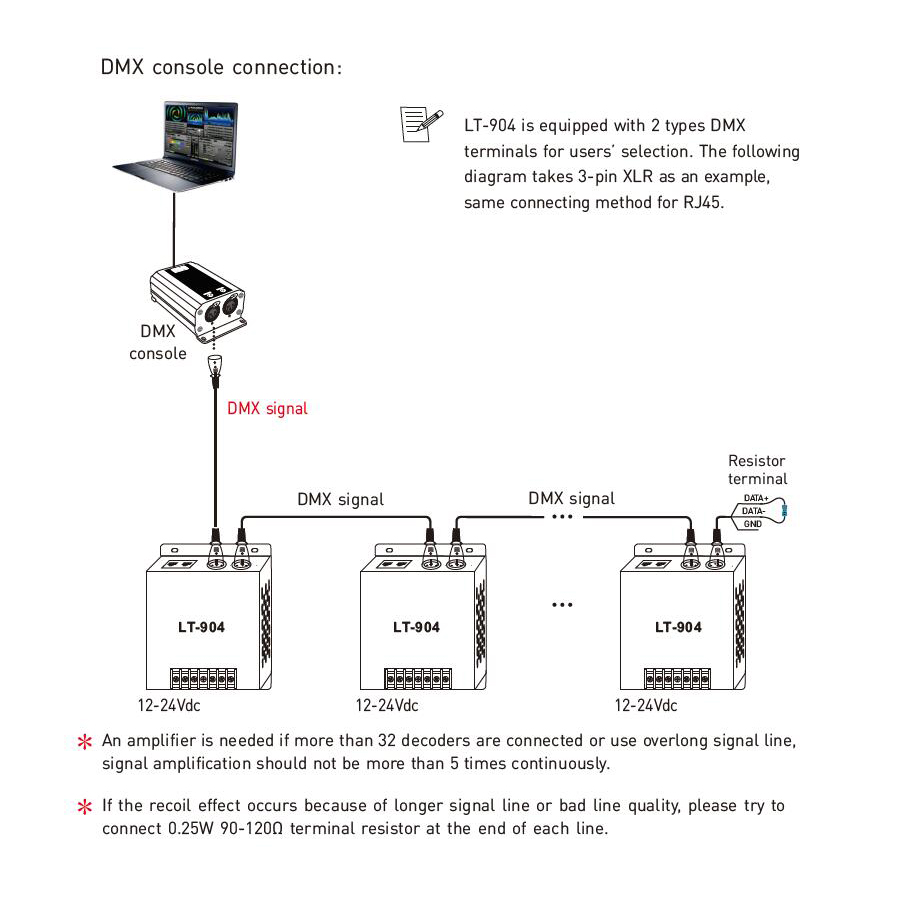

▪Support 2 kinds of DMX ports: 3-pin XLR, RJ45.
▪With RDM remote management protocol, the operations can be completed via the
RDM master console, such as parameters browsing & setting, DMX address setting,
equipment recognition, etc.
▪With short circuit protection and over current protection, as well as warning function
when fault.
▪With fast self-testing function
▪High/low PWM frequency for optional
▪16bit (65536 levels) / 8bit (256 levels) grey level optional.
