DMX-SPI-203 controls LED with the following compatible ICs: UCS6909, UCS6912,L PD8803,L PD8806, TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, TLS3001, TLS3002, WS2801, WS2803, WS2811, WS2812, P9813.LPD6803, LPD1101, D705, Supporting international standard protocol DMX512 /1990 interface, with DMX administration mode to invoke the built-in functions for choosing mode, speed, brightness, types and direction changing by DMX512 console. Furthermore, it has the DMX decode mode, customers could use DMX512 console to program & control every channel of the LEDs with the compatible ICs listed above. 0-100% dimming range, program any lighting effect required.
M203 Remote:
▪Working Voltage: 3V(battery CR2032)
▪Working Frequency: 2.4GHz
DMX-SPI-203 Controller Technical Specifications:
|
Item Number
|
Input
Voltage |
Power
Consumption |
Output Signal
|
Change Mode
|
DMX Channel
|
Control Qty
|
Virtual Pixel
|
|
DMX-SPI-203
|
5~24Vdc
|
1W |
SPI(TTL)
|
540
|
DMX Manage Mode: 6CH
DMX Decode Mode: 510CH |
1024 Pixels
|
1-6 times, Max 1024 pixel
|
M203 Remote:
▪Working Voltage: 3V(battery CR2032)
▪Working Frequency: 2.4GHz
Table of Changing Modes:

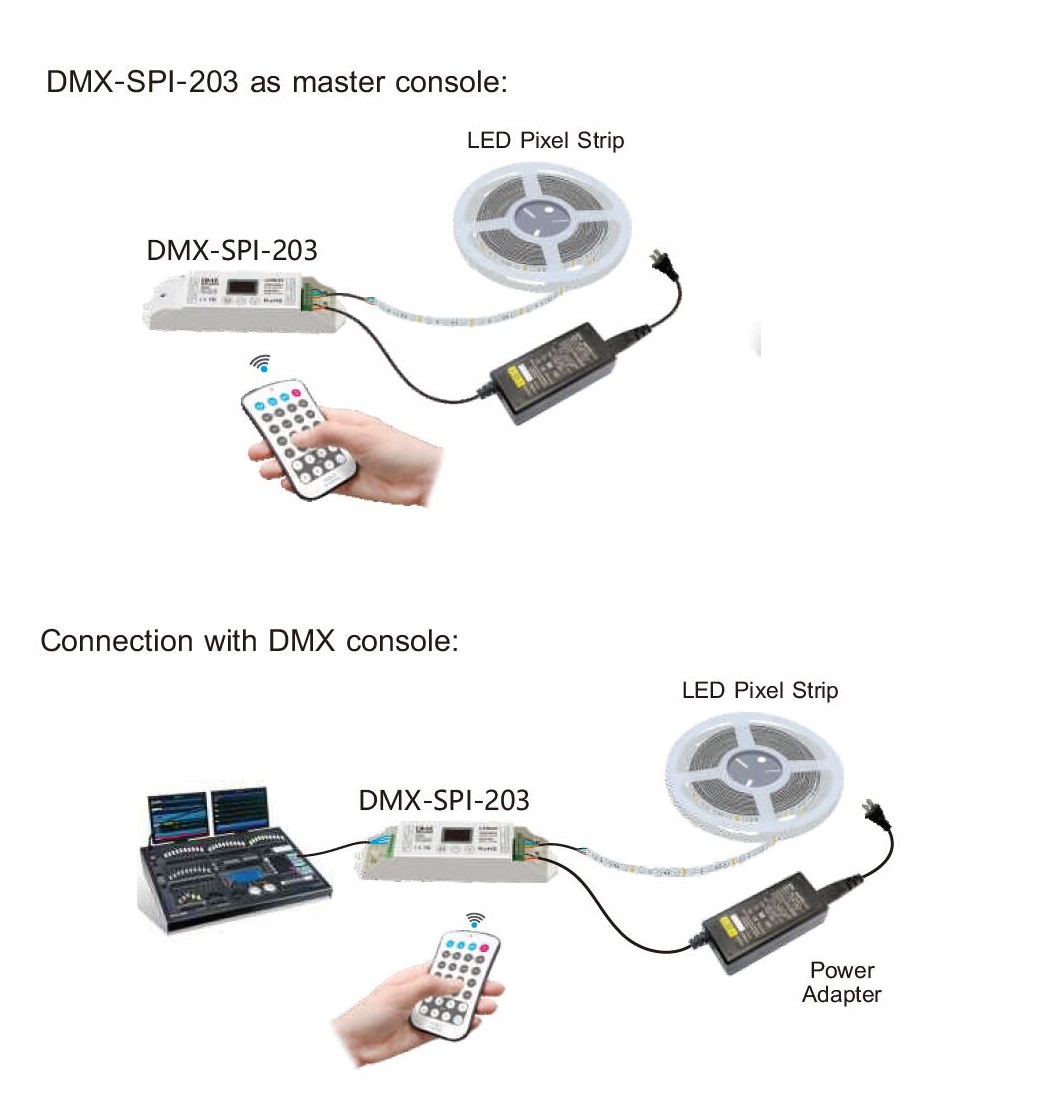

Typical Wiring Diagram for DMX-SPI-203 LED Controller:
