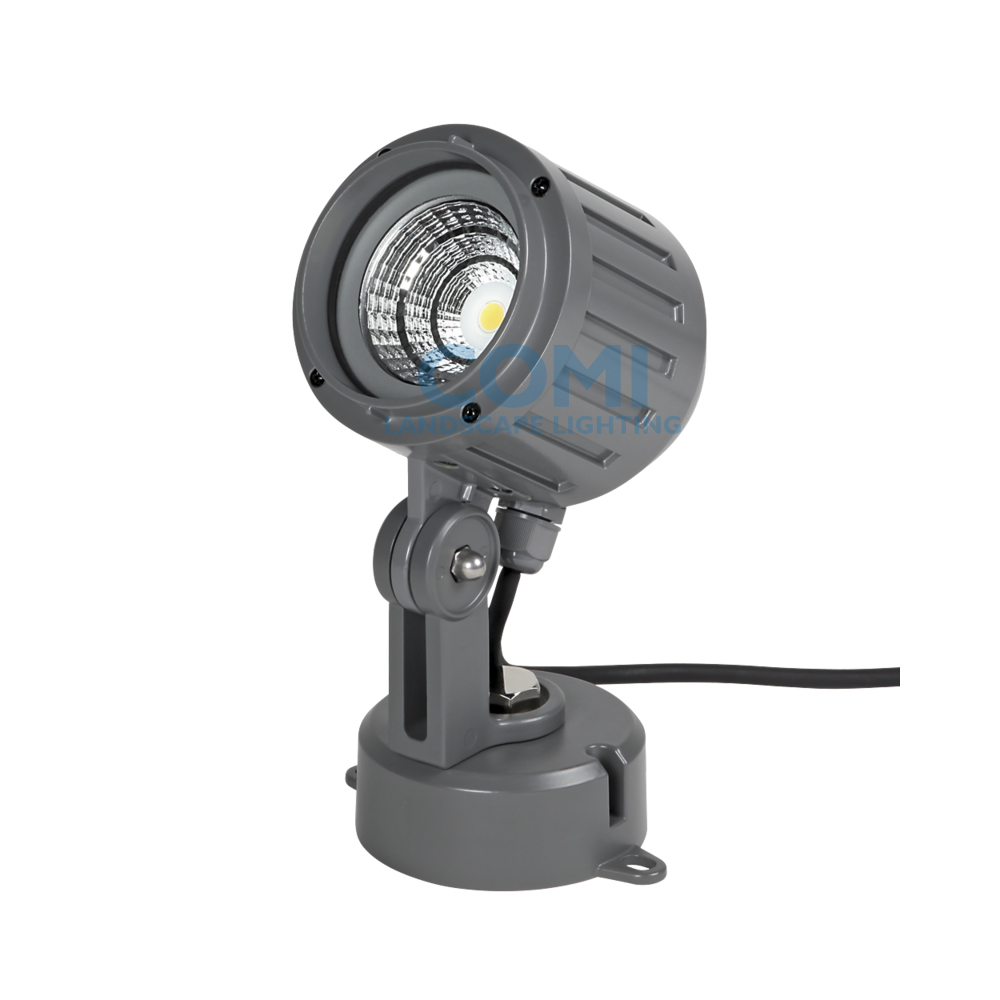

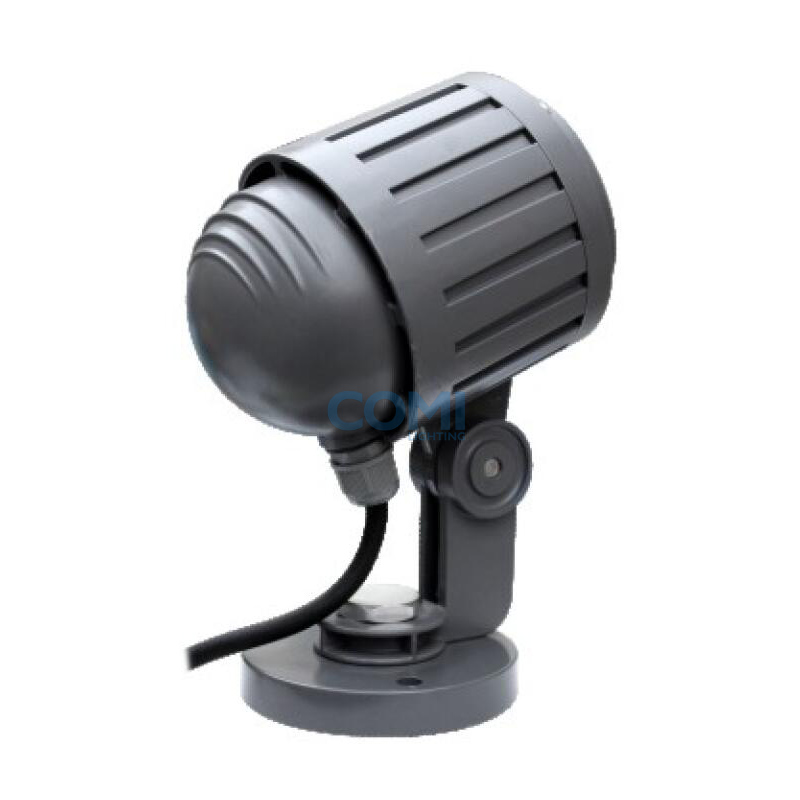

R3BQM0128S 1x15W COB LED Spot Light IP65 with Round Base

The COMI SPOT LIGHT IP65 R3BQ-Series is suitable for emphasis lighting indoors as well as outdoors . Combined with a ground spike it is also perfect for plant and garden lighting. (Optional accessory for outdoor use: ground spike.)

Features and Benefits:
▪ Light source:1x15W CREE COB LED
▪ Power: 16W.
▪ Input voltage: 24VDC or 110-240Vac.
▪ Color: Mono color.
▪ Optical Reflector efficiency≥90%
▪ Beam angle: 25°, 38°,45°, 60°.
▪ Project angle Up to down 80° adjustable, and Horizontal rotation angle 360°.
▪ Installation by round base ( Optional accessory: spike).

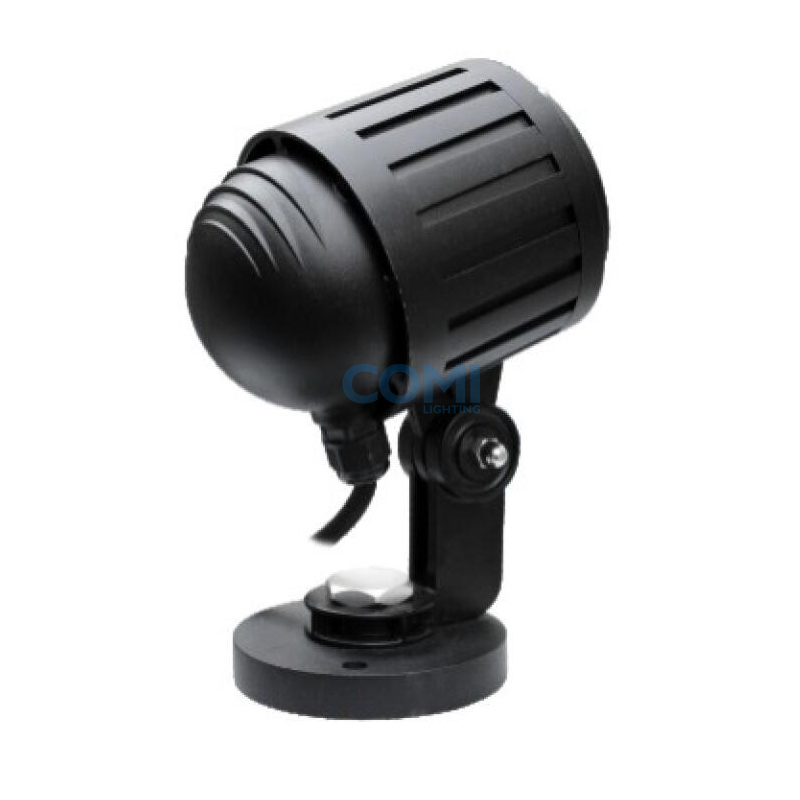

▪ Dusty grey color or jet black lamp housing color for options.
▪ Optional Headlamp with hood.
▪ Optional DALI, 1-10 V, PWM, TRIAC dimmable support.
▪ IP65 and IK05 rating.
▪ 2 Years warranty.

CE ROHS CRI80+ for R3BQM0128S 15W CREE COB LED spotlight

Materials Specification:

Housing
12 Die-casting powder coated aluminum . T=60~80um
adhesion of ISO class 1/ASTM class 4B

Light Window
Temper glass. T=4mm
Reflector Optical Reflector efficiency≥90%
Cable Gland
Copper and nickel coated
Gasket
Molding shaped silicone double seal
LED 15W Cree COB LED
PCB Excellent heat conductivity aluminum, coefficient of
Heat Conductivity≥2.0w/mk
LED Driver Constant current output
Power Cable
H05RN-F 1X1.0mm2 , L=2 meters (Low voltage)
H05RN-F 3X1.0mm2 , L=2 meters (High voltage)
Operating Temperature
-20℃~+40℃
Round Base (Included) Aluminum
Dimmable Support

TRIAC, (Optional) DALI/ 0~10V/ PWM.



Technical Specifications:

Item Number
Light Source
Lens
Lens Degree
(Θ1/2)
CRI
(White)
Input Voltage
(V)
Typical Operating
Current(mA)
Typical Power
Consumption(W)
Typical
Luminance (lm)
IK Rate
(What is IK Rate?)

R3BQB0128S

(Spike)

1×15W
CREE COB
LED

 R3

Reflector

25
Ra>80
24Vdc
120/240
24V=675
120V=135
240V=67.5
16.2
Cool white=1109
Warm white=991
05

R3BQM0128S

(Round Base)

1×15W
CREE COB
LED

R3

Reflector

25
Ra>80
24Vdc
120/240
24V=675
120V=135
240V=67.5

16.2
Cool white=1109
Warm white=991
05

Notes:
1. Please choose one of input voltage for single color version: 24VDC, or 220~240Vac, or 110~240VAC.
2. Color temperature: 2000K,2400K, 2700K, 3000K, 4000K,6000K,red-621nm,green-525 nm,blue-471nm.
3. Specifications are subjected to change without notice.
