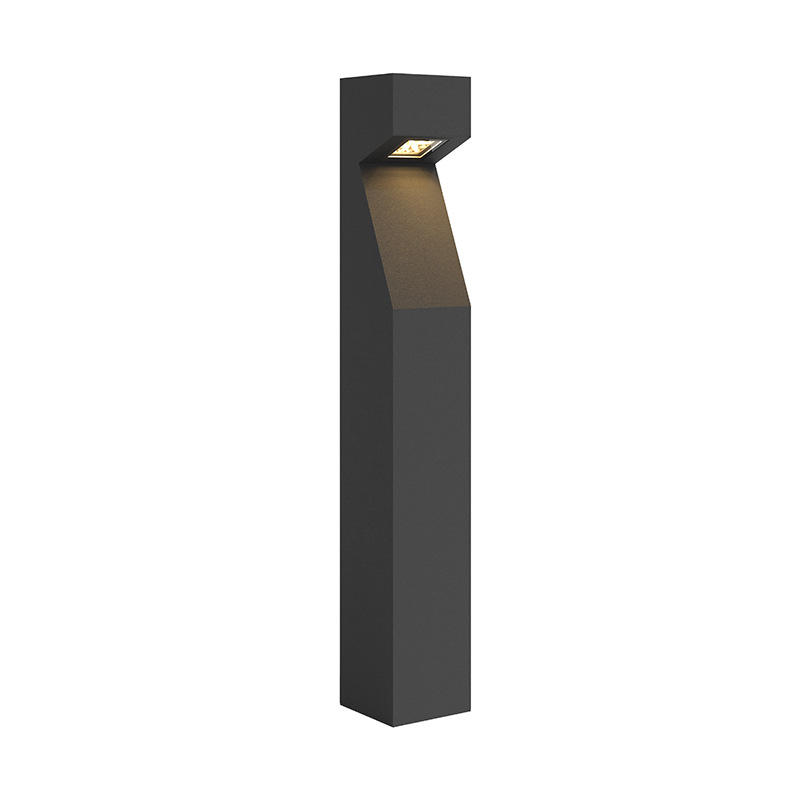

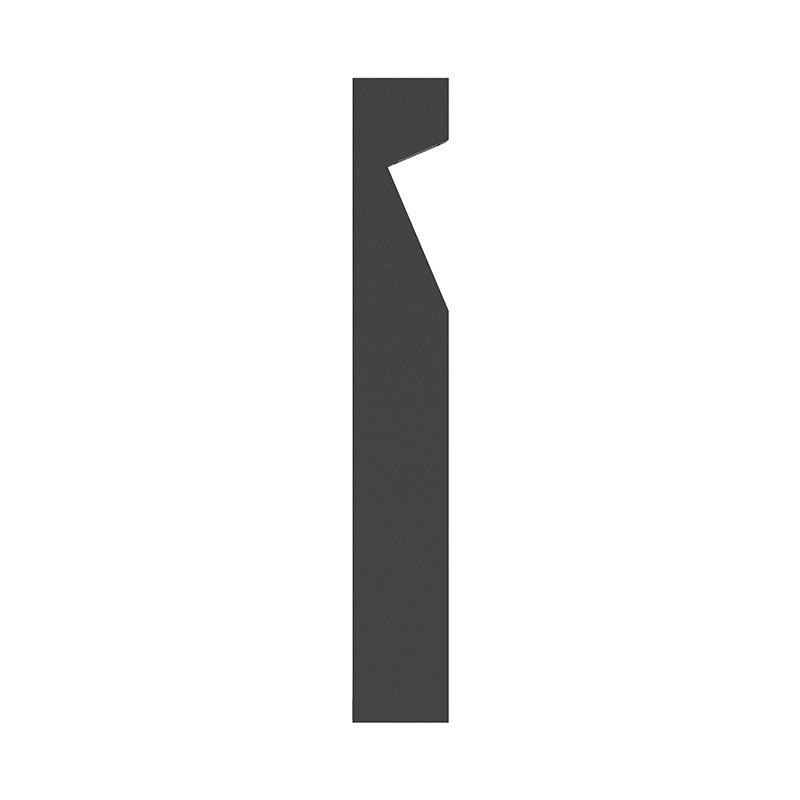

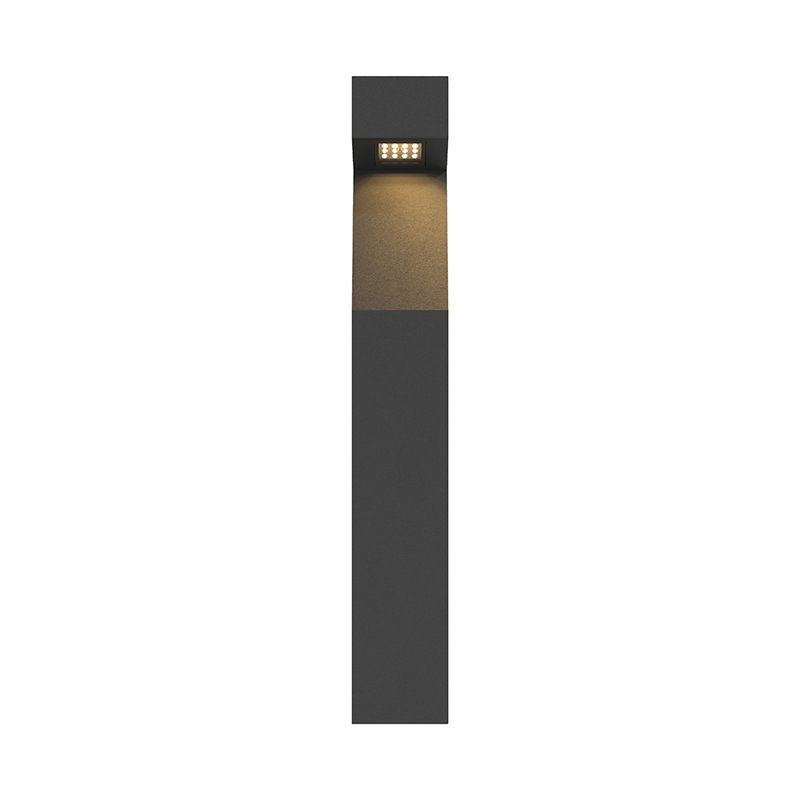

10W Outdoor IP65 LED Square Bollard Light

Bollard lights are commonly used in both architectural and landscape lighting. They serve functional and aesthetic purposes, providing pathway illumination, enhancing safety, and adding to the ambiance of outdoor spaces. In architectural settings, bollard lights can accentuate building entrances or other features, while in landscape lighting, they’re popular along pathways, garden beds, or around outdoor seating areas to highlight landscaping elements.


Features of 10W Square Bollard light:

  • Power: 10W
  • Height :available: 600mm, 800mm, 1000mm

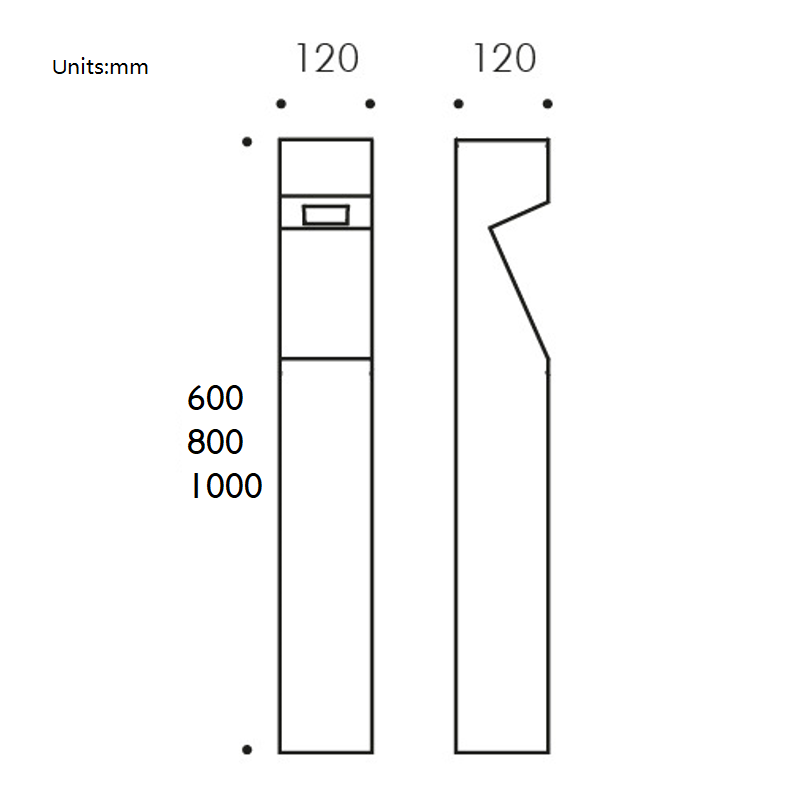

  • Size: L120*W120*H600/800/1000mm
  • Input voltage: 110~240VAC, 50/60Hz
  • Light Eficiency: 90LM/W for cool white 6000K, or 76LM/W for warm white 3000K
  • Light Source:12pcs*1W CREE 3030 SMD LED
  • Light color or color temperature:2700K, 3000K, 4000K, 5000K, 6000K
  • CRI:Ra>80 (Optional Ra>90)
  • Materials:aluminum
  • Finish color: black or grey powder coated
  • IK Rate: IK06
  • IP Rate: IP65
  • Warranty: 3 Years
  • Certification: CE, RoHS


Technical Parameters of 10W Square type LED Bollard light:

Item Number

Light Color

or CCT(K)

light Source Input Voltage Beam Angle Power Luminous Flux IK Rate IP Rate
07XA-112 2700~6500K

12pcs*1W

CREE 3030 SMD LED,

CRI80+

110-240VAC,

50/60Hz

Type-II,

Type-V,

Type-IV

10W

Cool White=900LM

Warm white=756LM

IK06 IP65

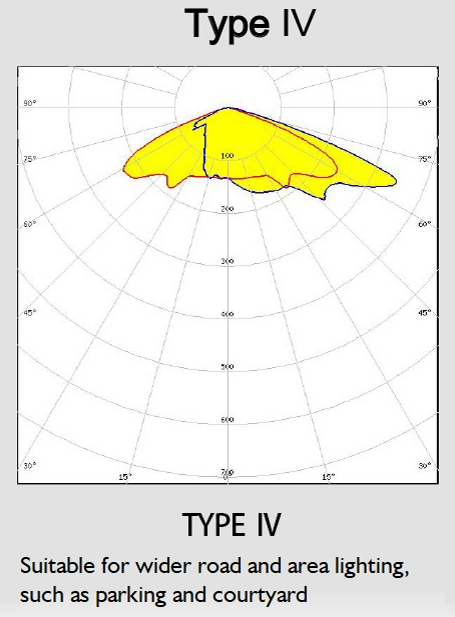

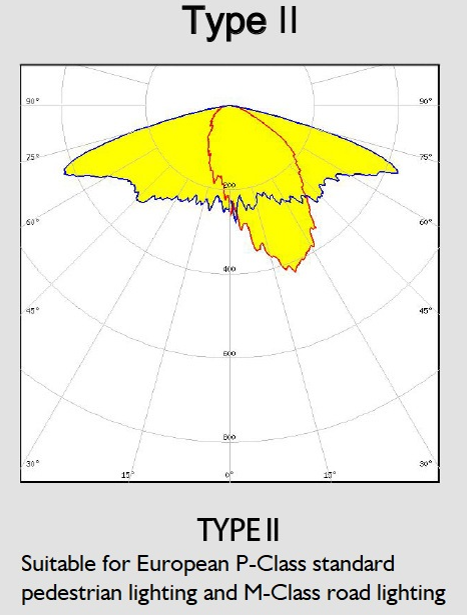

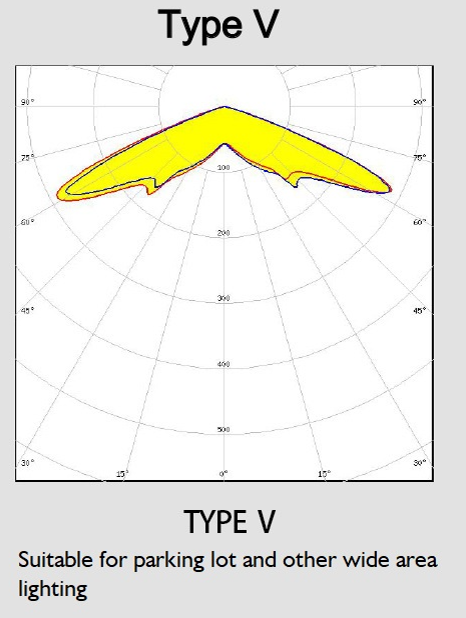

Type-II Beam bollard lights Type-V Beam bollard lights Type-IV Beam bollard lights

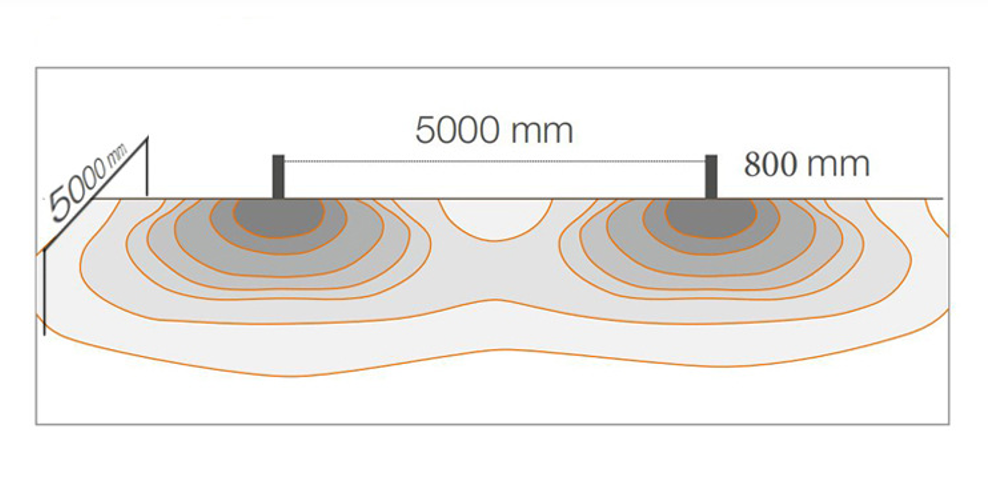

lighting distribution for bollard lamps

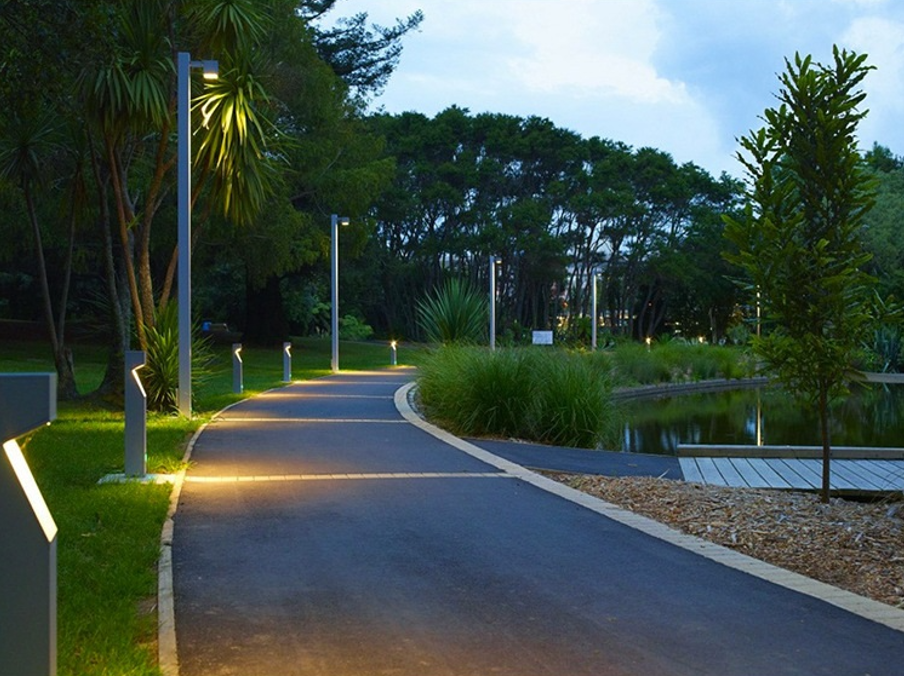

Outdoor IP65 LED bollard column light for road lighting
