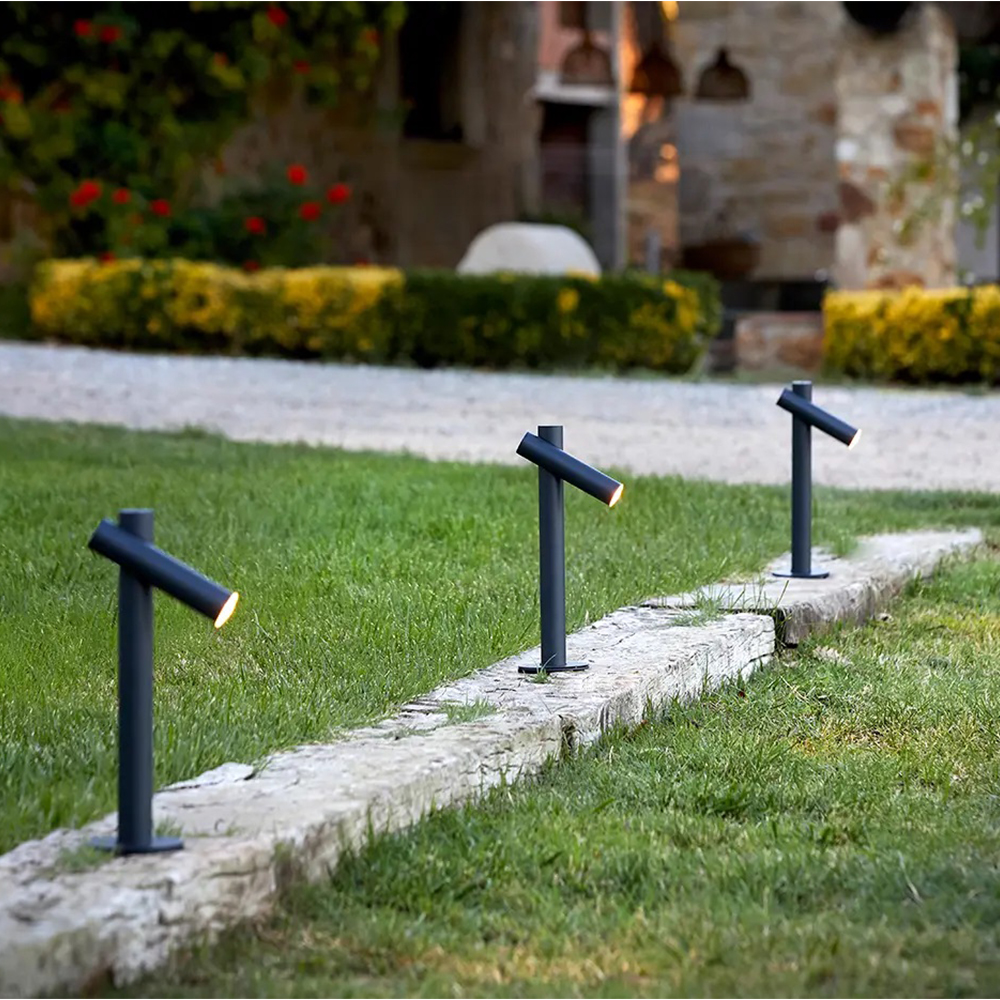

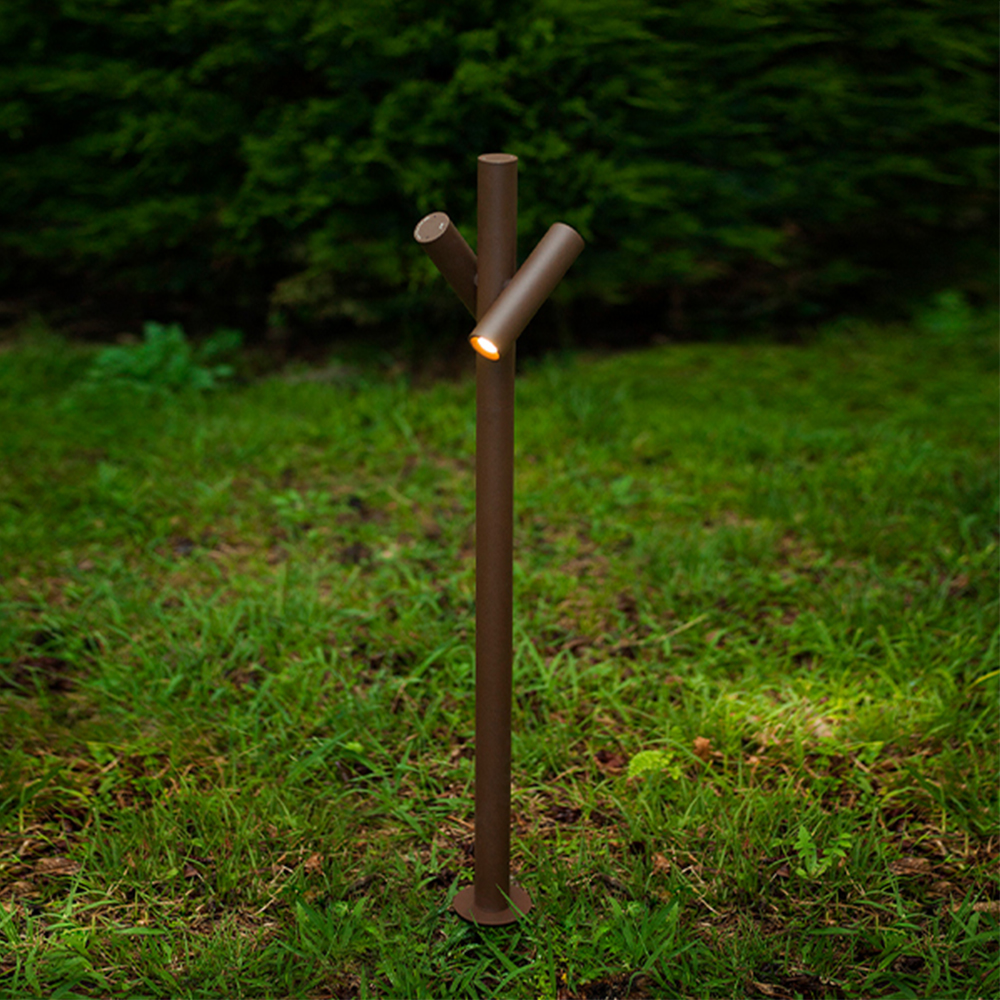

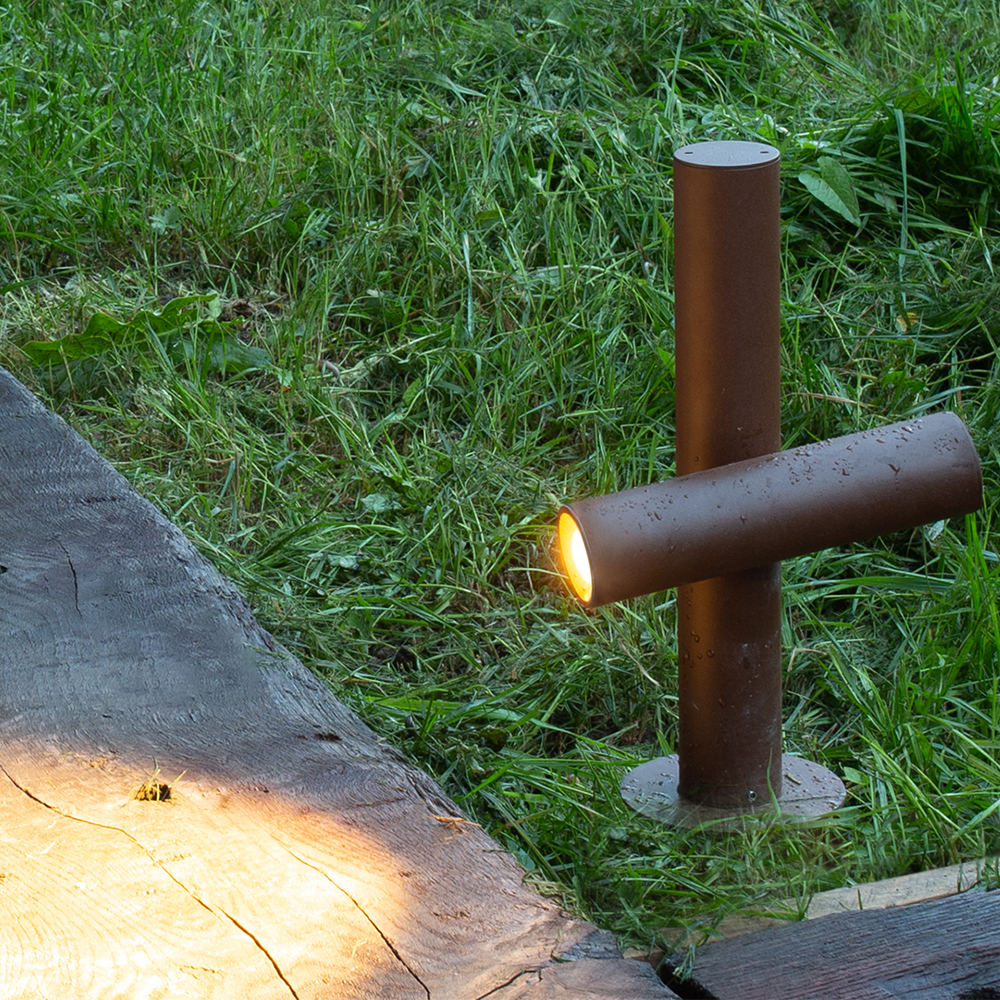

Introducing our high-performance outdoor bollard light, engineered for superior flexibility and durability. This sleek, tubular beacon features one or two fully rotatable LED heads, allowing for precise light direction to illuminate pathways, landscapes, and architectural features exactly where needed.
Crafted from robust 6063-T6 extruded aluminum alloy and finished with a weather-resistant polyester coating, this light is built to withstand harsh environments. With an IP65 weatherproof and IK07 impact resistance rating, it guarantees reliable performance from -40°C to 45°C. Choose from multiple mounting options, input voltages, and beam angles to create a perfectly customized lighting solution for any project.
Features and Benefits:

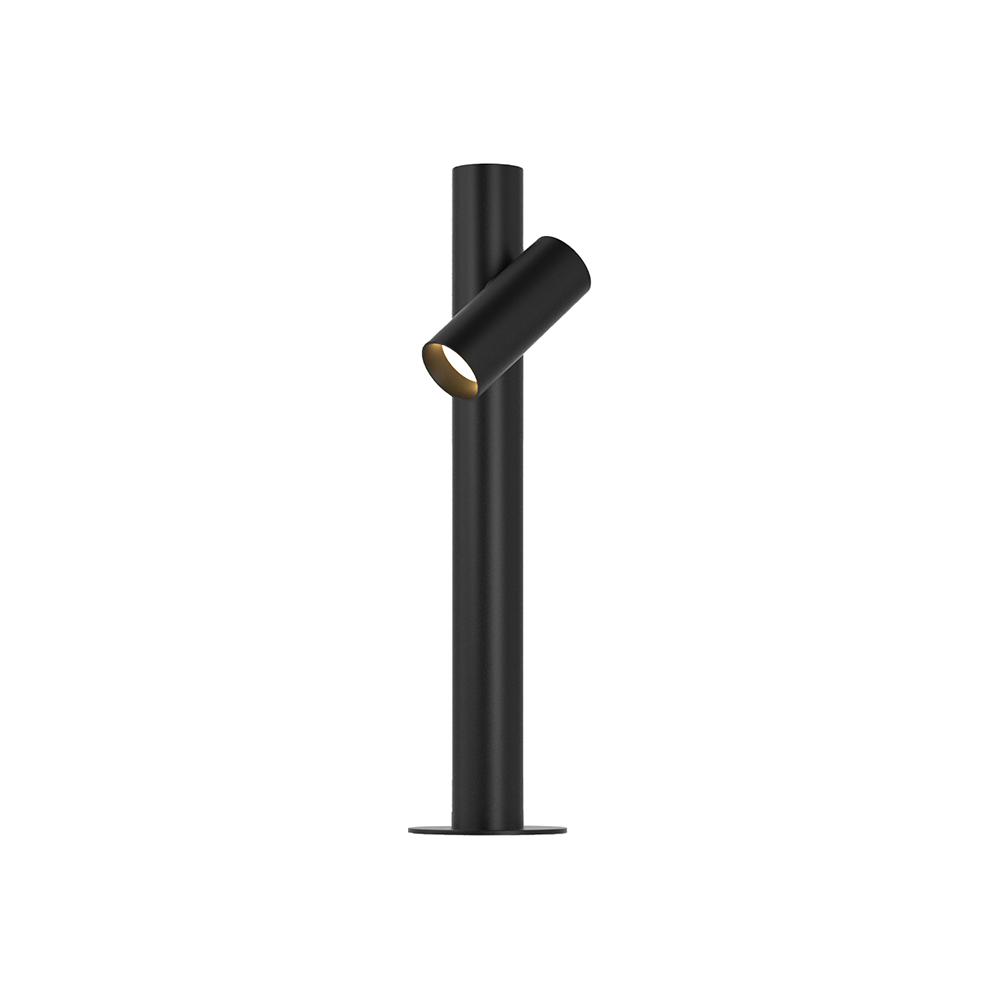

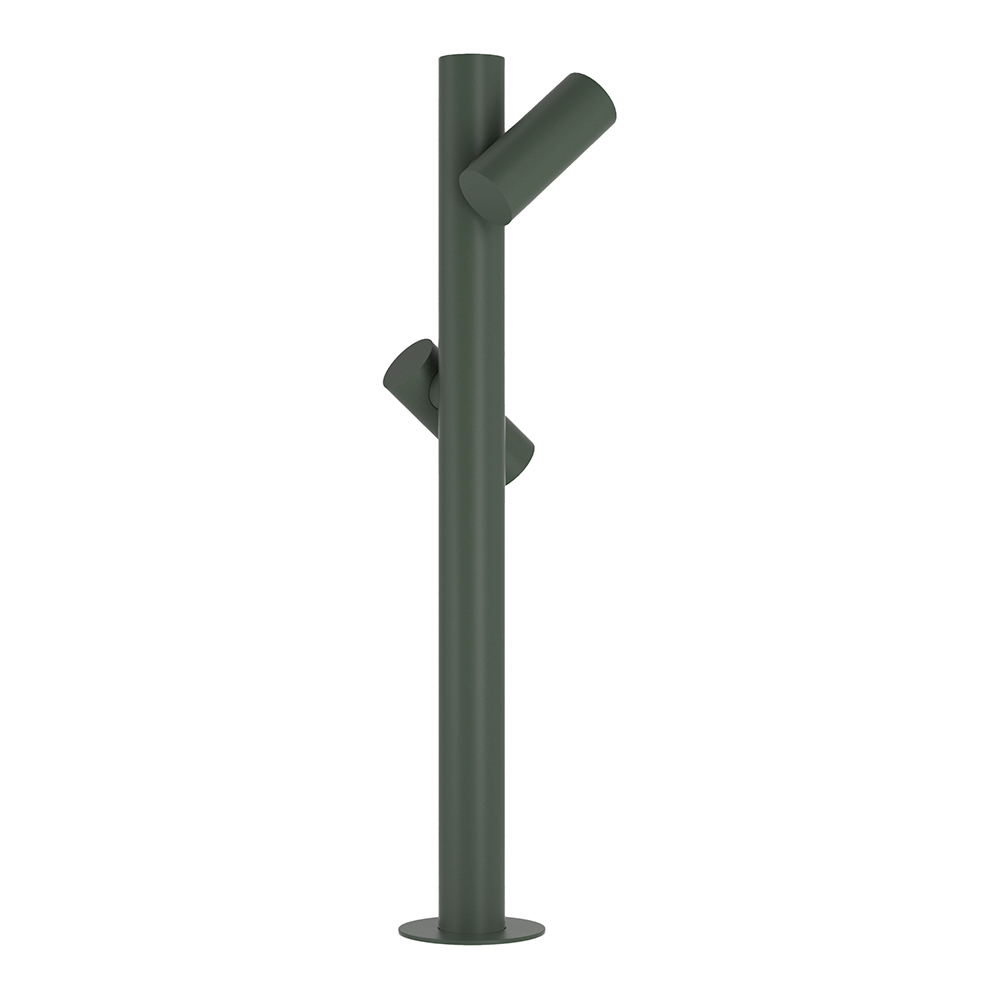

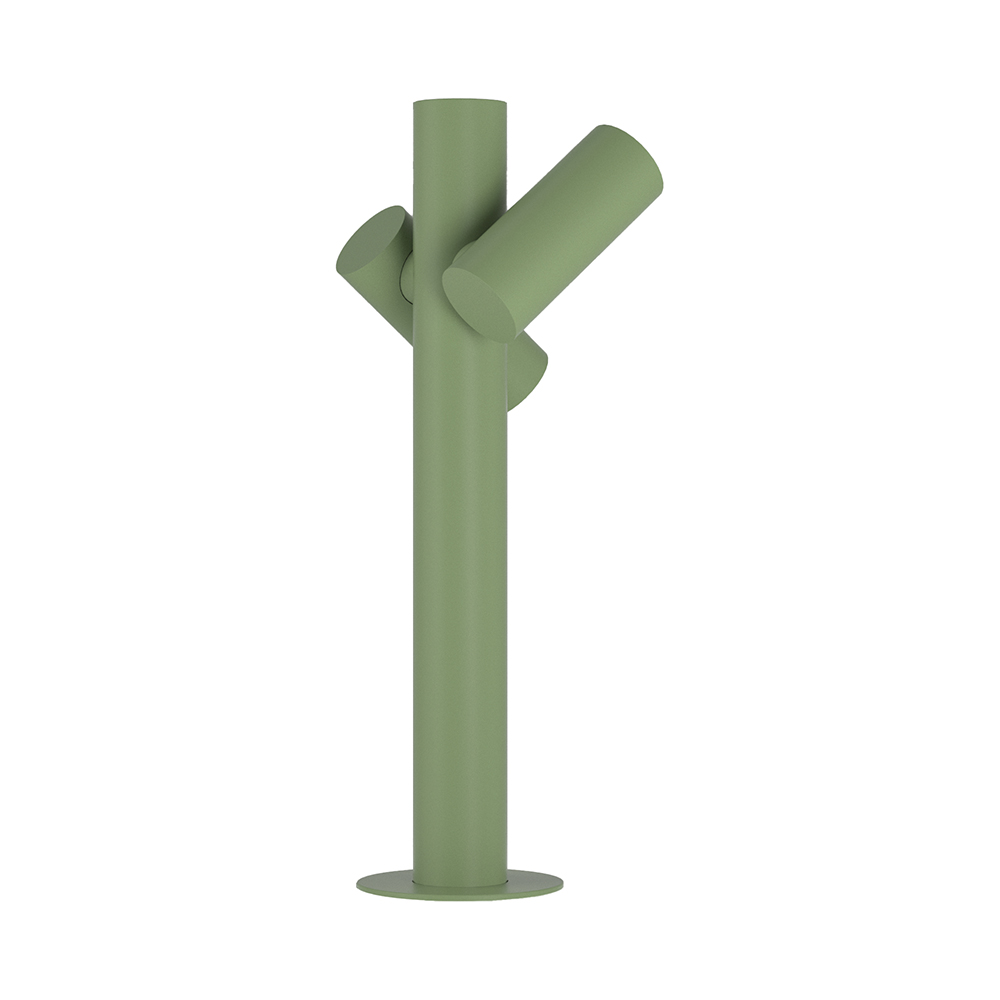

• Configuration: Single Head (7W) or Double Head (14W).

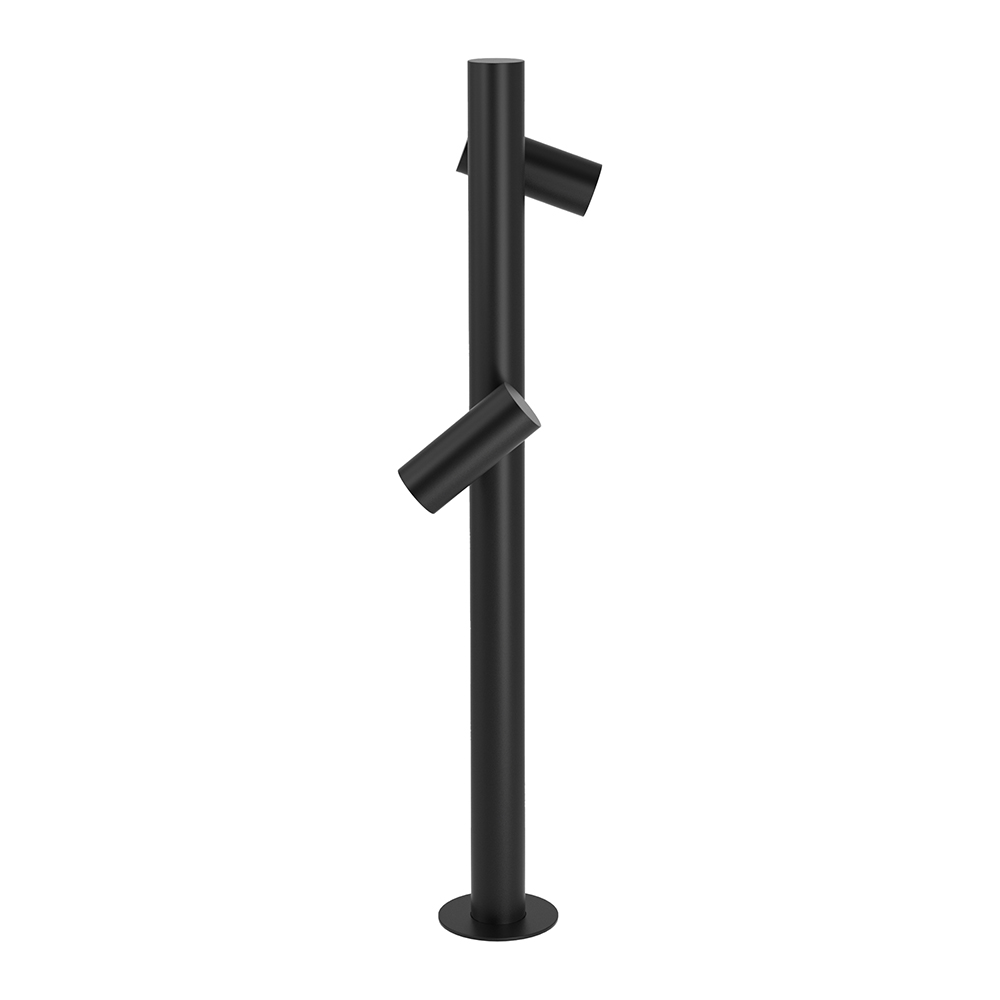

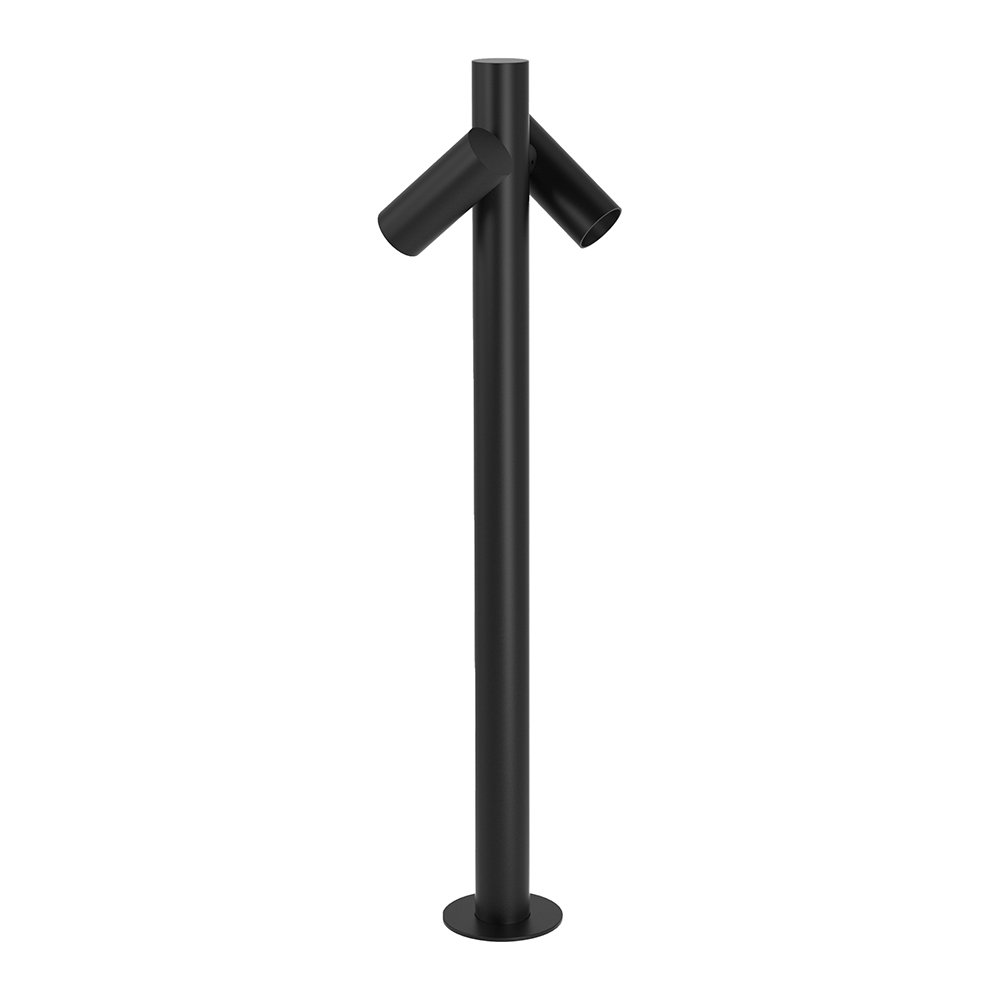

• Rotatable Heads: 1 or 2 heads, 350° Projection angle adjustable.
• Input Voltage: DC12/24V or AC110-270V.
• Luminous Efficacy: 82 LM/W.
• Beam Angles: 15°, 24°, 36°, or 50°.
• Construction: 6063-T6 Aluminum, Polyester Powder Coating.

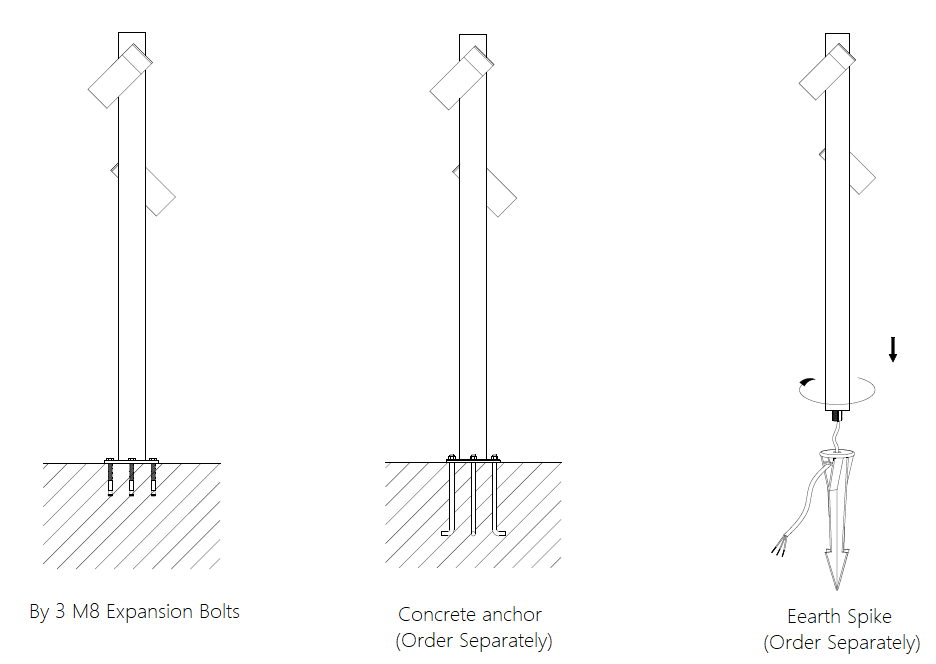

• Installation Method:
(1) Surface installation (accompanied by 3 M8 expansion bolts);

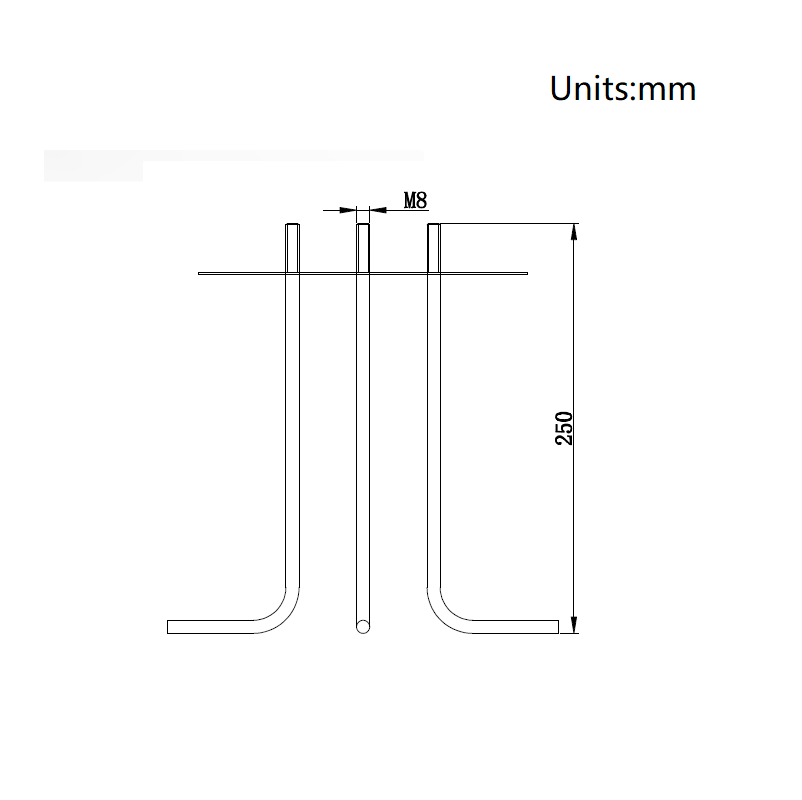

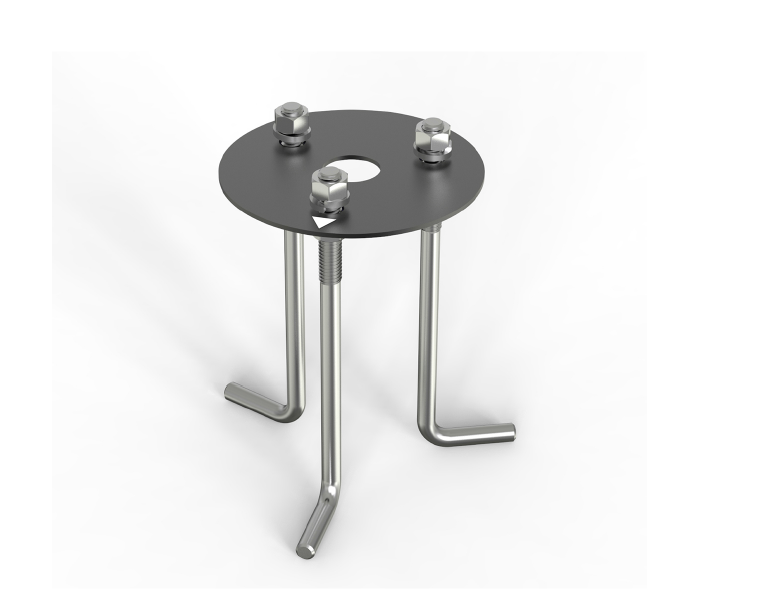

(2) Pre-embedded installation ( by 3 J-shaped anchor bolts);

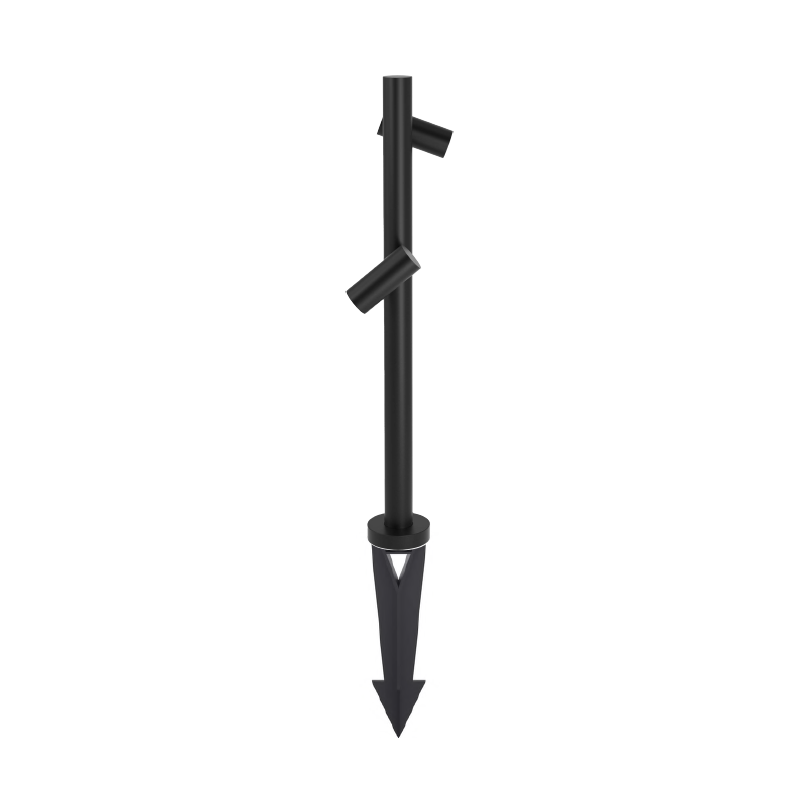

(3) Earth Spike.
• Finish color:Jet black, Bronze, Steel gray, Snow white, Other RAL color.
• Ingress Protection: IP65.
• Impact Rating: IK07.
• Temperature Range: -40°C to +45°C.
• Warranty: 3 Years.
• Certification:CE, RoHS.

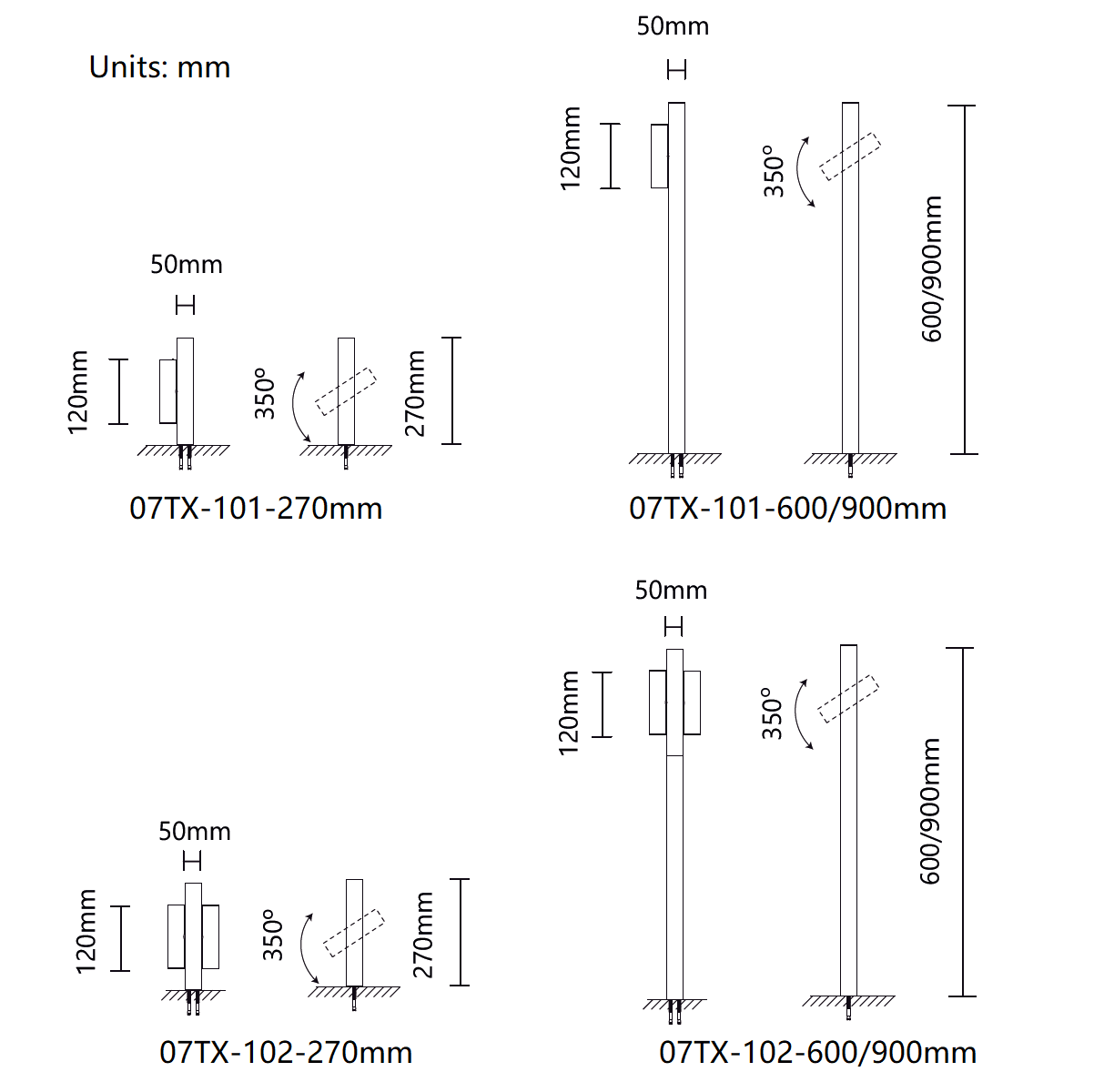

| Item Number | Configuration |
Optional
Height
(mm)
|
Control
Mode
|
Light Color
or CCT(K)
|
Light Source | Input Voltage |
Power
Consumption
(W)
|
Light
Efficiency
(LM/W)
|
Luminous Flux (LM) |
IK
Rate
|
| 07TX-101 | Single Head |
270mm,
600mm,
900mm
|
ON/OFF | 2700K, 3000K, 4000K, 5000K, 6000K. | 1pc×7W CREE or Bridgelux COB LED, CRI 80+ |
24VDC,
220-240VAC, 110-270VAC
|
7W |
82LM/W
(@3000K, CRI80+)
|
Cool
White=650LM
Warm white=580LM
|
IK07 |
| 07TX-102 | Double Heads |
270mm,
600mm,
900mm
|
ON/OFF | 2700K, 3000K, 4000K, 5000K, 6000K. | 2pcs×7W CREE or Bridgelux COB LED, CRI 80+ |
24VDC,
220-240VAC, 110-270VAC
|
14W |
82LM/W
(@3000K, CRI80+)
|
Cool
White=1300LM
Warm white=1160LM
|
IK07 |
