The COMI SPOT LIGHT IP65 B3A-Series is suitable for emphasis lighting indoors as well as outdoors. Combined with a ground spike it is also perfect for plant and garden lighting.
Features and Benefits:
▪ Light source:1x2W Osram or 3W RGB 3-in-1 LED
▪ Power: 2.6W(Mono), 3.2W(RGB 3-in-1).
▪ Input voltage: 24VDC or 110-240Vac.
▪ Color: Mono color, RGB.
▪ Beam angle: 10°, 15°, 30°,45°, 60°.
▪ Project angle Up to down adjustable and horizontal 360° rotatable.
▪ Installation by Round base ( Optional accessory: Ground spike).
▪ Optional housing color: Black,anodized aluminum, matt silver, copper.
▪ DALI, 1-10 V, PWM, TRIAC or DMX 512 controllable support.
▪ IP65 and IK02 rating.
▪ 2 Years warranty.

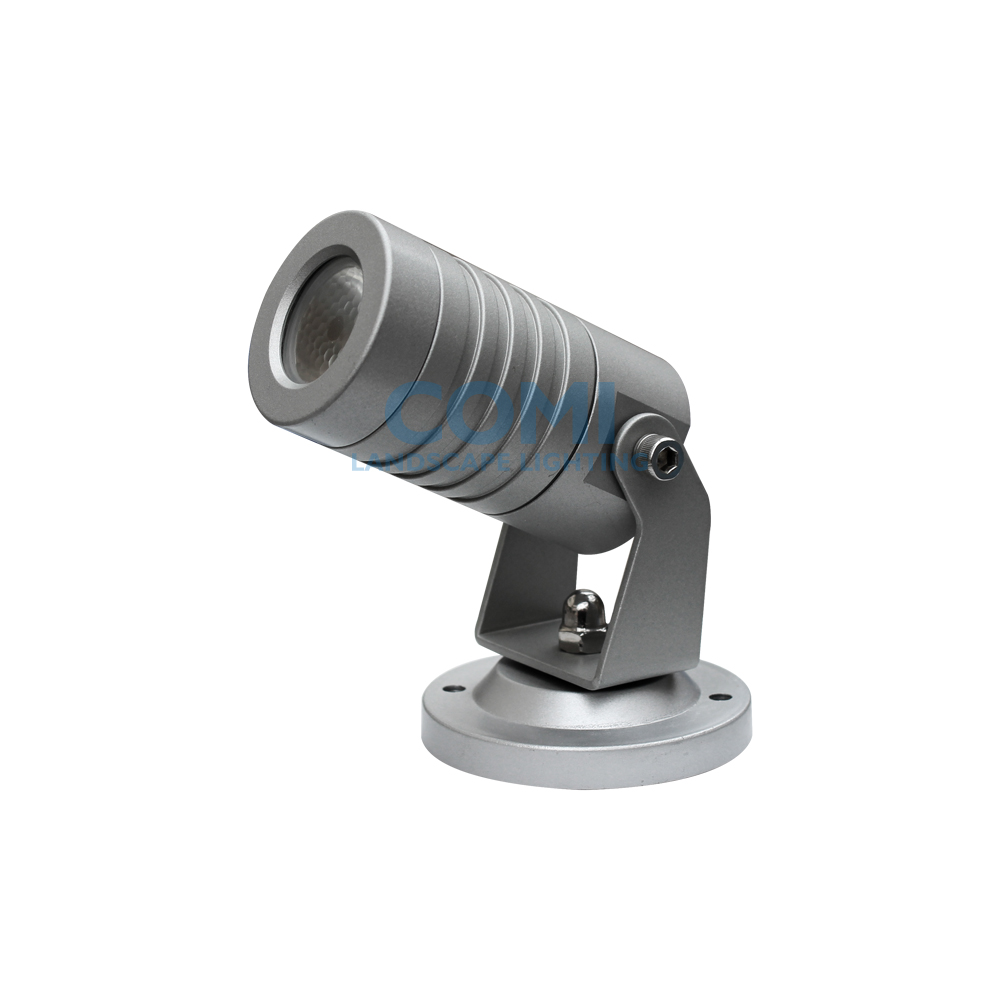

B3AM0157 B3AM01106 IP65 LED Landscape & Garden Spot Light with Round Base
Materials Specification:
|
Front Cover & Housing |
Aluminum anodized finishing ( or powder painting) |
|
Light Window |
Temper glass. T=3mm |
| Lens |
Optical lens, efficiency≥85% |
|
Cable Gland |
Copper and nickel coated |
|
Gasket |
Tooling shape sealed |
| LED |
OSRAM LED(single color), RGB 3-in-1 LED |
| PCB |
Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
| LED Driver |
Constant current output Single color LED=1-circuit output RGB 3in1 LED =3-circuit output |
|
Power Cable |
H05RN-F 1X1.0mm2 ,L=2m (Low voltage) H05RN-F 3X1.0mm2 ,L=2m (High voltage) H05RN-F 4X0.75mm2 ,L=2m (RGB) |
|
Operating Temperature |
-20℃~+40℃ |
| Round Base (Included) | Aluminum |
|
Dimmable Support |
TRIAC, (Optional) DALI/ 0~10V/ PWM. |
Technical Specifications:
|
Item Number
|
Light Source
|
Lens
|
Lens Degree
(Θ1/2) |
CRI
(White) |
Input Voltage
(V) |
Typical Operating
Current(mA) |
Typical Power
Consumption(W) |
Typical
Luminance (lm) |
|
|
B3AM0157
|
1×2W
OSRAM Single color |
B33D
|
30
|
Ra>80
|
24Vdc
120/240 |
24V=110
120V=48 240V=28 |
24V=2.6
120V=3 240V=3 |
Cool white=149
Warm white=120 |
02
|
|
B3AM0106
|
1×3W
RGB 3-in-1 Full color |
B34D
|
30
|
-
|
24Vdc
|
R=70
G=150 B=150 |
3.5
|
50
|
02
|
Notes:
1. Please choose one of input voltage for single color version: 12VDC, or 24VDC, or 220~240Vac, or 110~240VAC.
2. Color temperature: 2000,2400K, 2700K, 3000K, 4000K,6000K,red-621nm,green-525 nm,blue-471nm.
3. Specifications are subjected to change without notice.
