Exterior LED Spotlight 9-14W for Architectural&Landscape Lighting-IP65 LED Garden Lights-COMI Lighting Limited

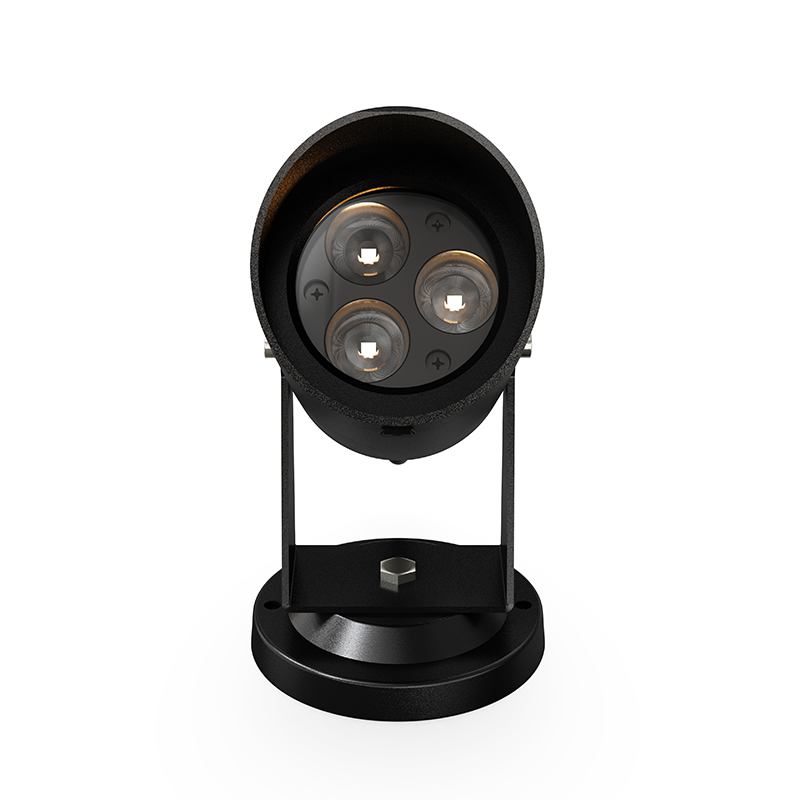

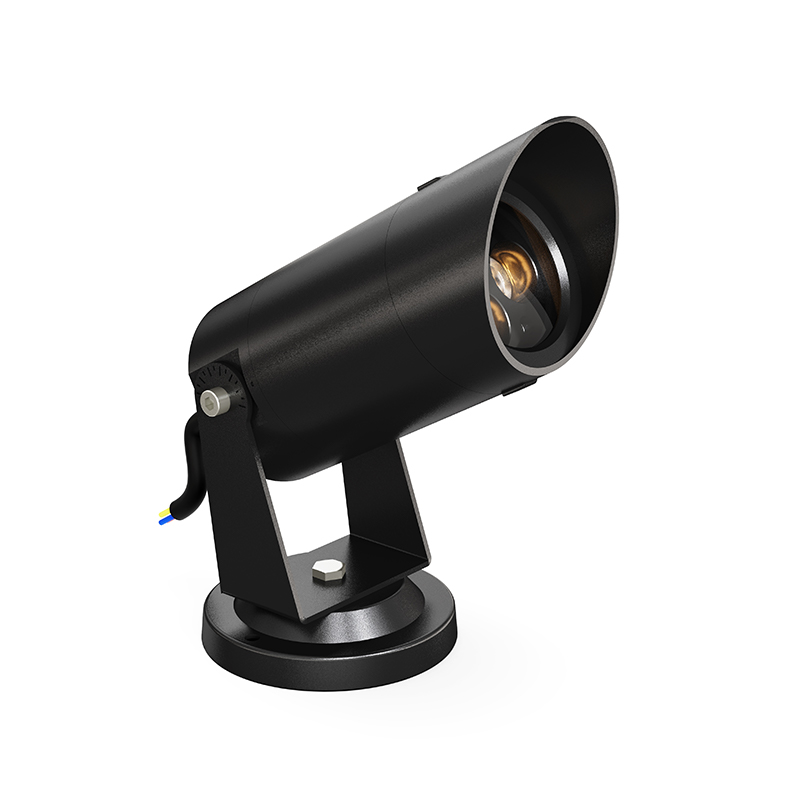

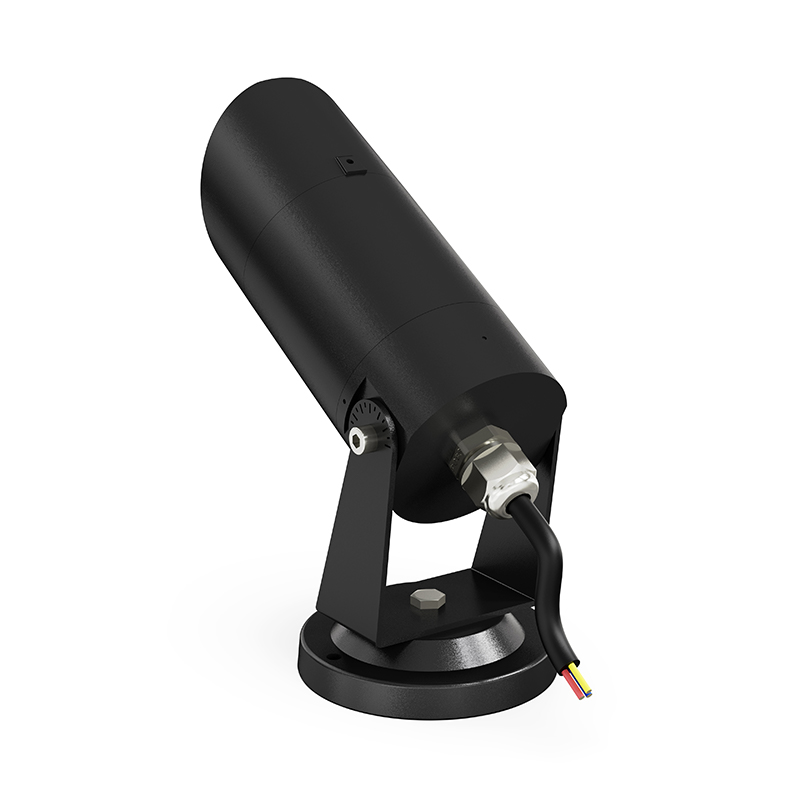

Exterior LED Spotlight 9-14W for Architectural&Landscape Lighting

The COMI Landscape Lighting IP65 LED Spotlights with visor are suitable for emphasis lighting indoors as well as outdoors. Combined with a round base, or ground spike, or tree light mounting straps, or glare shield, it is also perfect for plant lighting, garden and landscape Lighting, and Architectural Lighting.

Features and Benefits:
• Light color: single color, RGB, RGBW, very warm white 2000~2200K.
• Input voltage: 12/24VDC, or 110-120VAC, 220-240VAC, 50/60Hz.
• Light Efficiency: 60~85LM/W (for 2000~6500K white color only).
• Light Source: 1piece 12W COB LED, or 3pcs 3W/4WLED.
• Beam angle for options: 8°,15°, 25°, 40°, 60°.
• CRI: Ra>80 (Basic), Optional Ra>70 or Ra>90.
• Optional accessories:
(1) Honeycomb louver for anti-glare light.
(2) Visor (also named as hood, or light shield)
• Vertical or horizontal projecting direction adjustable.
• Finish color: Matte black or dark grey powder painting.
• Control mode: standard ON/OFF.
Optional dimming with remote DALI, 1-10V,TRIAC or DMX 512 dimming driver.
• Mounting accessories for options:

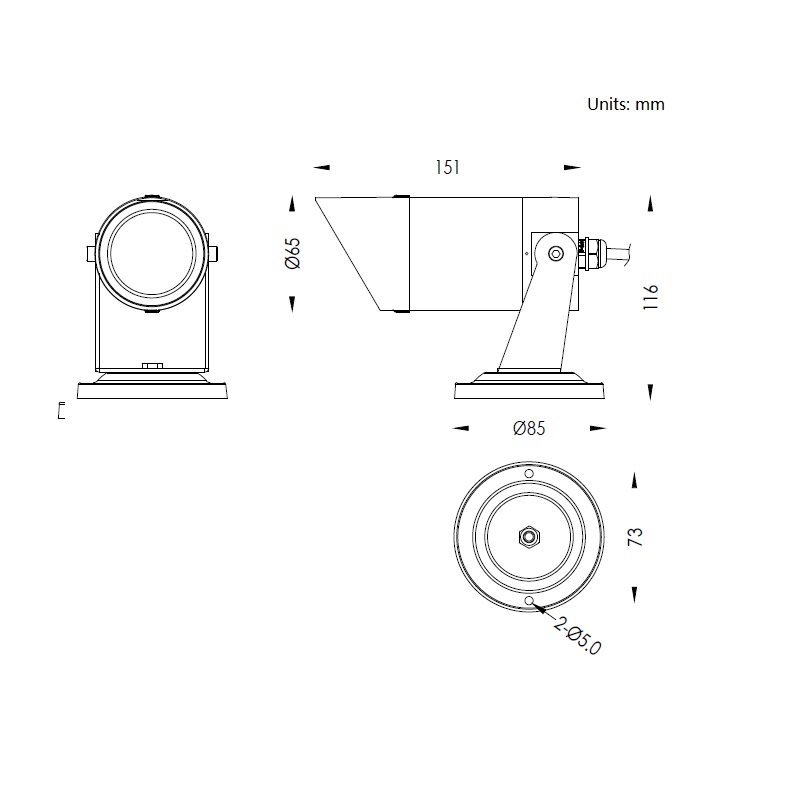

(1) round base: surface mounted on ground/wall/ or ceiling.

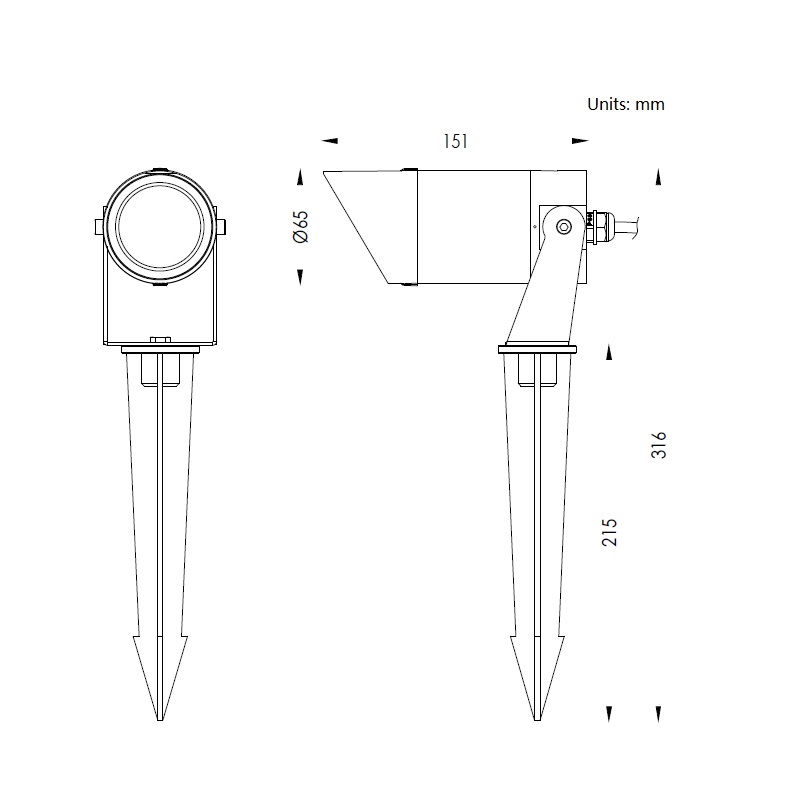

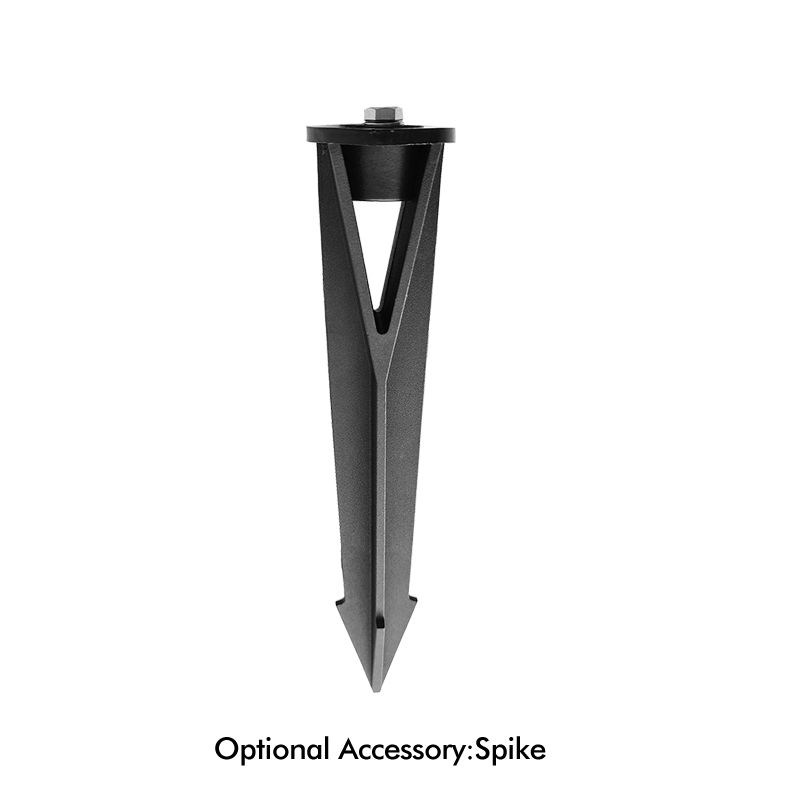

(2) Spike: stake into ground
(3) Strap: mounted on pole or tree trunk.
• IP Rate: IP65, suitable for both indoor or outdoor applications.
• IK Rate: IK04.
• Certificates: CE, RoHS
• Warranty: 2 Years.
• Customized made is available.

ce rohs ip65 outdoor led spotlight with round base or spike or strap

Description
Download
Inquire

Materials Specifications:

Housing	12# Die-casting aluminum finishing black or dark grey powder painting. T=60-80μm. Adhesion of ISO class 1/ASTM class 4B
Light window	Tempered Glass.T=3mm
Lens	Optical lens, efficiency ≥85%
Cable gland	Copper and nickel coated
Gasket	Tooling shaped seal
LED	OSRAM, CREE, NICHIA and etc.
Driver	DC Constant Voltage or AC High Voltage Input,Constant Current Output
Operating temperature	-20℃~+40℃
Power Cable	H05RN-F 2×1.0mm², L=0.5m (12V/24VDC) H05RN-F 3×0.75mm², L=0.5m (120V/240VAC) H05RN-F 4×0.75mm², L=0.5m (RGB, 12V/24VDC) H05RN-F 2×1.0+3×0.5mm², L=0.5m(RGBW, 24VDC)
Mounting Accessory	Round Base (Aluminum). Optional Spike(PC) and Strap(Stainless Steel)

Electrical Specifications for IP65 Outdoor Spotlights:

Item Number	Light Source	Light Color	Beam Angle (Θ1/2)(°)	Input Voltage	Typical Power Consumption	Typical Luminance (LM)	IK Rate
B3CB0357H-B	3×2W OSRAM/ CREE LED	Single Color, 2000-2200K	5°, 8°, 15°, 25°, 40°, 60°	12/24VDC, 120/240VAC	6.2W	Cool white=446 Warm white=379	04
B3CB0358H-B	3×4W OSRAM/ CREE LED	Single Color,	8°, 15°, 25°, 40°, 60°	12/24VDC, 120/240VAC	11.8W	Cool white=850 Warm white=722	04
B3CB0110H-B	1×12W CREE COB LED	Single color	15°, 30°, 40°, 60°	12/24VDC, 120/240VAC	12.2W	Cool white=985 Warm white=841	04
B3CB0318H-B	3×3W RGB 3-IN-1 LED	RGB Full Color	25°, 40°, 60°	12/24VDC	9.3W	205	04
B3CB0320H-B	3×4W RGBW 4-IN-1 LED	RGBW Full Color	25°, 40°, 60°	12/24VDC	12.4W	397	04

Notes:

1. The last letter in item number stands for The code of mounting accessories for IP65 outdoor LED spot lights:

Code	Mounting Accessories	Mounting Method
B	Round base	Surface mount on ground, wall, or ceiling
S	Spike	Stake into Ground
T	Tree Strap	mounted on tree trunk or pole by strap

2. Color: Single color (2000-2200K,2400K, 2700K, 3000K, 4000K,6000K, Red, Blue, Green and others) RGB, RGBW,
3. Specifications are subjected to change without notice.

Applications:

IP65 LED spotlights with various mounting options can be used in a wide range of applications due to their durability and versatility. Some common applications include:
• Outdoor Landscape Lighting: The IP65 rating ensures protection against dust and powerful jets of water, making these spotlights ideal for outdoor use in gardens, pathways, and landscapes. The round base or spike mounting options allow for easy installation in different terrains.
• Architectural Lighting: LED spotlights can be used to highlight architectural features of buildings, bridges, and monuments. The mounting options provide flexibility in positioning the lights to achieve the desired lighting effects.
• Commercial Spaces: In commercial settings such as retail stores, restaurants, and hotels, IP66 LED spotlights can be used for accent lighting to highlight merchandise, signage, bar, or architectural elements.

outdoor LED spike up light for tree lighting

• Pathway Lighting: Along walkways, driveways, or garden paths, these spotlights can provide soft illumination to guide footsteps while adding a touch of elegance to the outdoor space.

garden-walkway-with-spotlights
