COMI Lighting Limited

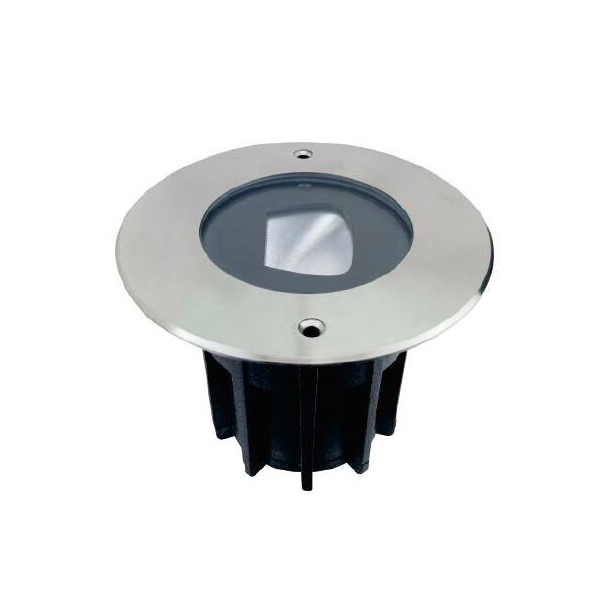

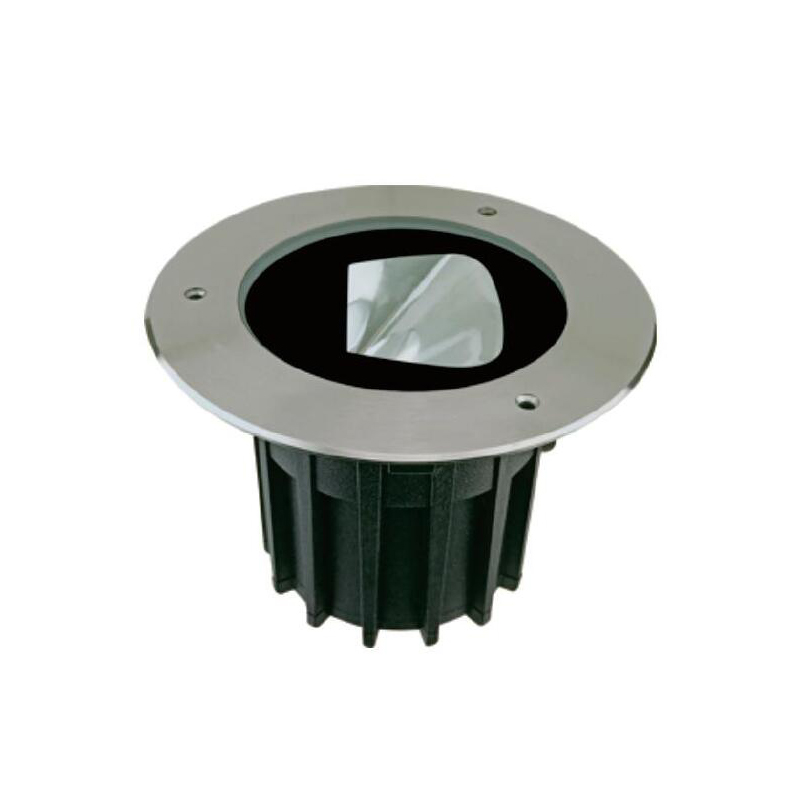

10/15/20/25/30W Asymmetrical COB LED Recessed Inground Lights

The COMI LANDSCAPE LIGHTING INGROUND LIGHT CR2H-series adopts CREE/NICHIA COB LED as its light source which is designed for floor integration and offers various design possibilities in architectural illumination because of its high light output. Optional accessory honeycomb louver for anti-glare soft light output. Optional TRIAC, PWM, 0/1-10V, DALI, DMX512 Dimming by COMI Lighting recommended driver, dimmer, or controller, etc.

Features and Benefits:
▪ Featured with asymmetrical lens or reflector and with asymmetrical 27° light output.
▪ Light Source:5~40W COB CREE LED as its light source.
▪ Reflector efficiency≥80%.
▪ Optional honey comb louver for anti-glare and soft Light.
▪ Input Voltage 24VDC or 110/240VAC.
▪ 316 stainless steel front ring and aluminum lamp housing.
▪ High quality Mean Well brand LED driver.
▪ Full area glass pressure capacity: 1190KG/2480KG/2650KG/2823KG/2935KG/5510KG.
▪ TRIAC, PWM, 0/1-10V, DALI dimming support optional (Inquire separately).
▪ ABS mounting sleeve is included.
▪ IP classification IP67 for outdoor use.
▪ 2~5 Years warranty available.

ce rohs led inground lights

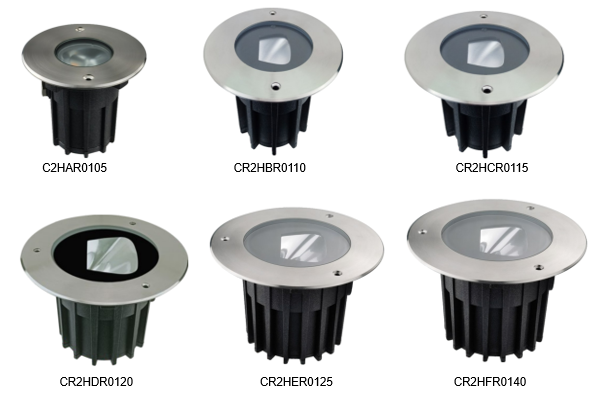

IP67 COB LED Asymmetrical Inground Lamps for Options:

asymmetrical COB LED inground lights



Technical Parameters for IP67 Asymmetrical COB LED Inground Lights:

Item No. Light Source
Light
Color
Lens Degree  Input Voltage
Typical
Power
Luminous Flux (lm) IK Rate
C2HAR0110
1×5W
CREE COB LED
Single
Color
Asymmetric
27°
24VDC
120/240Vac
4.5W 300~400LM 10
CR2HBR0110
1×10W
CREE COB LED
Single
Color
Asymmetric
27°
24VDC
120/240Vac
7.8W 550~700LM 10
CR2HCR0115
1×15W
CREE COB LED
Single
Color
Asymmetric
27°
24VDC
120/240Vac
12W 800~1200LM 10
CR2HDR0120
1×20W
CREE COB LED
Single
Color
Asymmetric
27°
24VDC
120/240Vac
18W 1300-1700LM 10
CR2HER0125
1×25W
CREE COB LED
Single
Color
Asymmetric
27°
24VDC
120/240Vac
24W 1700-2100LM 10
CR2HFR0140
1×40W
CREE COB LED
Single
Color
Asymmetric
27°
24VDC
120/240Vac
36W 2700~3200LM 10
Notes:

1. Color temperature for light color available:2700K, 3000K, 4000K, 6000K, 6500K.

2. Specification is subjected to change without prior to notice.

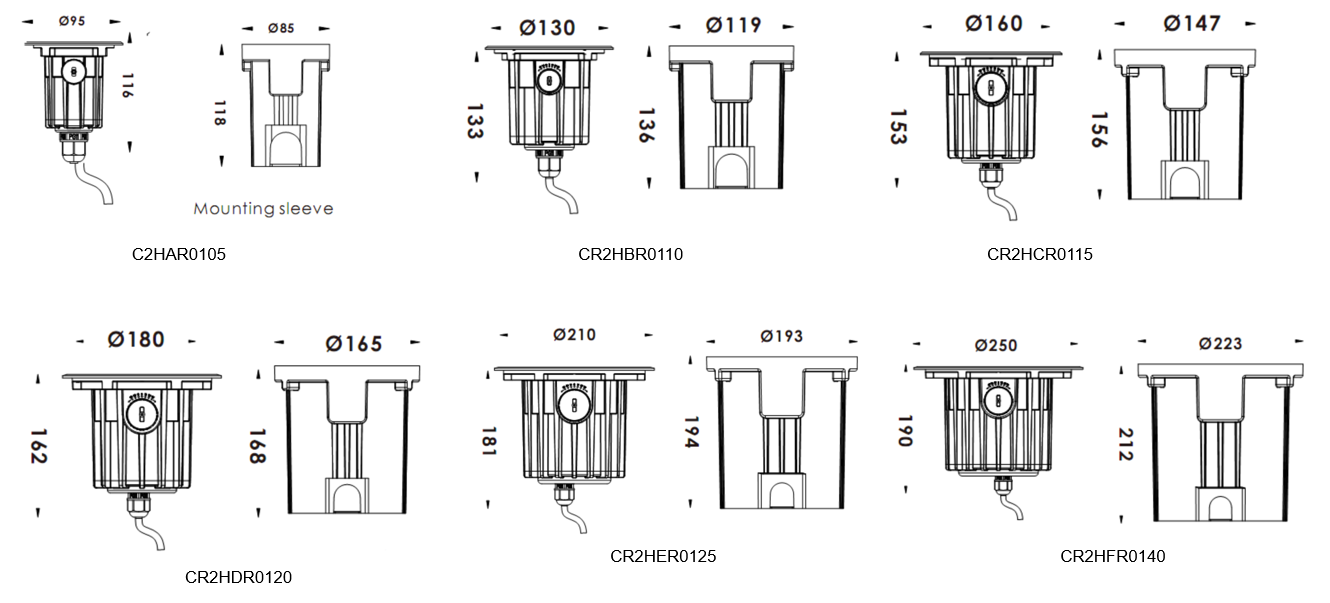

Dimensions for IP67 Asymmetrical COB LED Underground Lights:

Dimensions for asymmetric LED inground lights
