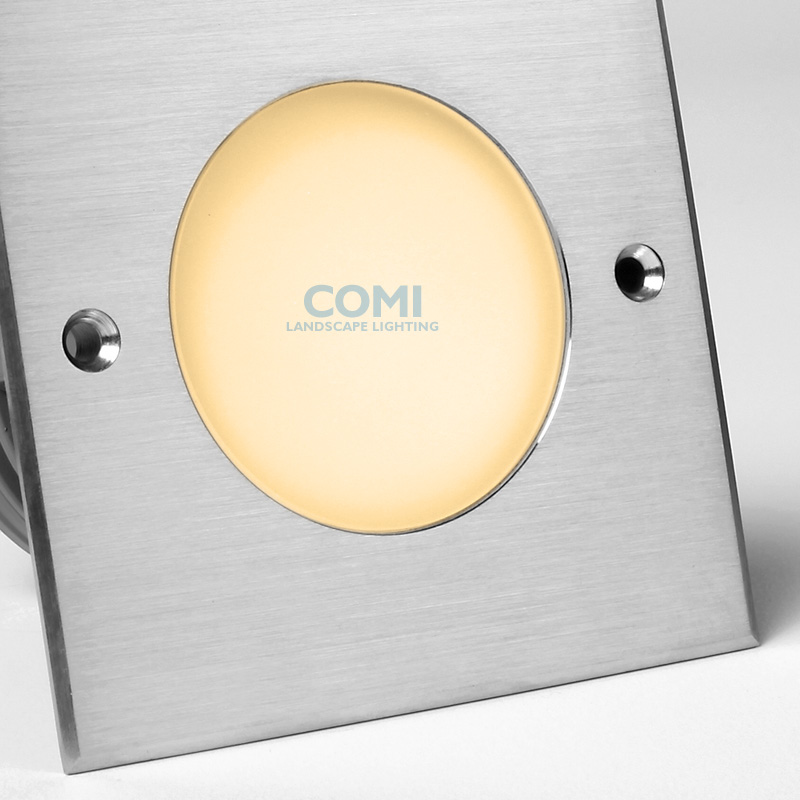

The COMI Landscape Lighting 2CD-series LED In-ground is designed for floor integration and offers various design possibilities in architectural illumination. Optional Dimmable, autom. colour change, DMX 512, DALI, 0/1-10 V controllable by COMI Lighting recommended power supply, driver,dimmer, RGB controller and etc.
Features and Benefits:
▪ With Soft light distribution creates comfortable environment.
▪ Light source: 6pcs mono or RGB SMD LED.
▪ Input Voltage 24 VDC or 110/240VAC
▪ SUS 316 stainless steel front ring and aluminum lamp housing.
▪ Full area glass pressure capacity>2500KGs.
▪ Basic is Non-dimmable by PWM, 0/1-10V .
(Optional PWM, 0/1-10V, DALI dimmable or DMX512 controllable support ).
▪ Plastic mounting sleeve included.
▪ IP classification IP67 for outdoor use.
▪ 2 Years warranty.
Material Specification:
Housing |
12 Die-casting grey powder coated aluminum. T=60-80μm Adhesion of ISO class 1/ASTM class 4B |
Front Ring |
Stainless steel SUS 316 |
Light Window Glass |
Step tempered glass.T=8mm |
Glass pressure capacity |
Full area=2578kgs |
Cable Gland |
IP-68 PG-9 PVC |
Gasket |
Molding shaped silicone seal |
LED |
SMD LED |
Driver |
Constant current output Single color LED=1-circuit output RGB 3-in-1 LED=3-circuit output |
Operating temperature |
-20℃~40℃ |
Electrical connection |
1x cable 0.5 m H05RN-F 2x 1.0 mm² to open wires (Low Voltage) 1x cable 0.5 m H05RN-F 3x 0.75 mm² to open wires (High Voltage) 1x cable 0.5 m H05RN-F 4x 0.75 mm² to open wires (RGB) |
Mounting Sleeve(Incl.) | PVC |
Control Support(Optional) | Optional PWM, 0/1-10V, DALI dimmable or DMX512 controllable support |
Technical Parameters
Item Number
|
Light Source
|
Lens
|
Beam Angle
|
Input Voltage
(V) |
Typical Operating
Current(mA) |
Typical Power
Consumption(W) |
Typical
Luminance (lm) |
IK Rate
|
D2CDR0357
D2CDS0357 |
6×SMD
OSRAM |
-
|
120°
|
24VDC
120/ 240 |
24V=51
120V=30 240V=17 |
24V=1.2
120V=1.8 240V=1.8 |
Cool white=11
Warm white=9.5 |
09
|
D2CDR0318
D2CDS0318 |
6×SMD
RGB 3in1 Full color |
-
|
120°
|
24VDC
|
R=17
G=17 B=17 |
1.2
|
3.6
|
09
|
Note: Specification is subjected to change without notice.
