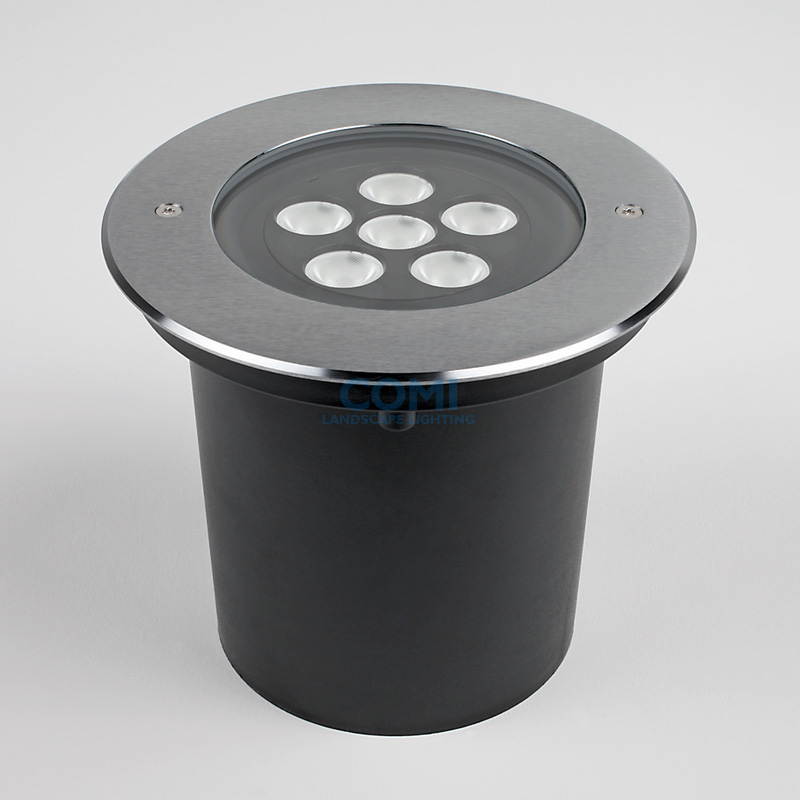

The COMI Landscape Lighting 2BF-series LED In-ground is designed for floor integration and offers various design possibilities in architectural illumination. Optional Dimmable, autom. colour change, DMX 512, DALI, 0/1-10 V controllable by COMI Lighting recommended power supply, driver,dimmer, RGB controller and etc.
Features and Benefits:

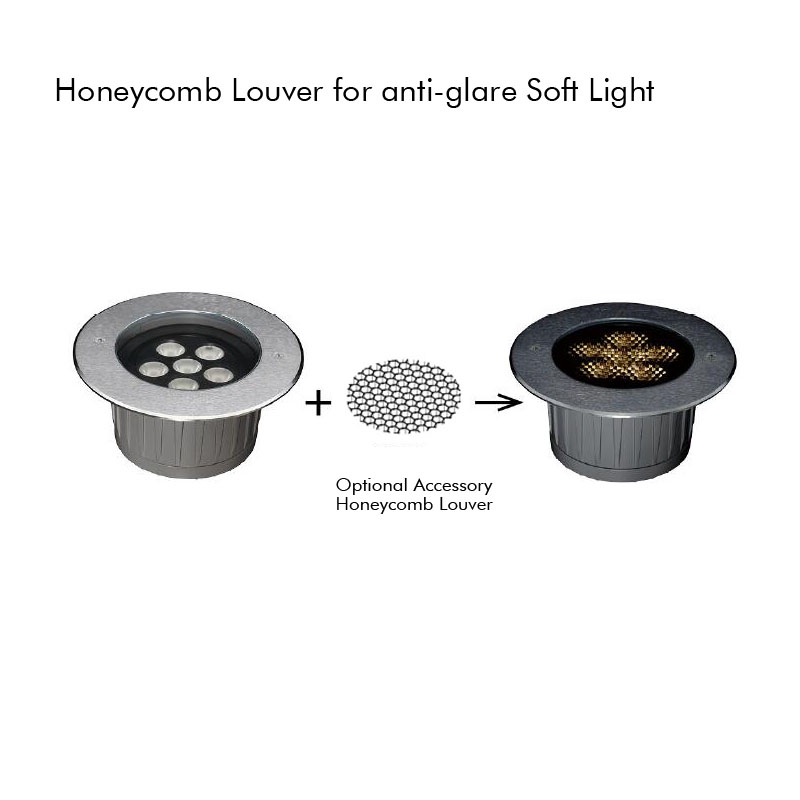

▪ Optional accessory--honeycomb louver for Soft light distribution creates comfortable environment.

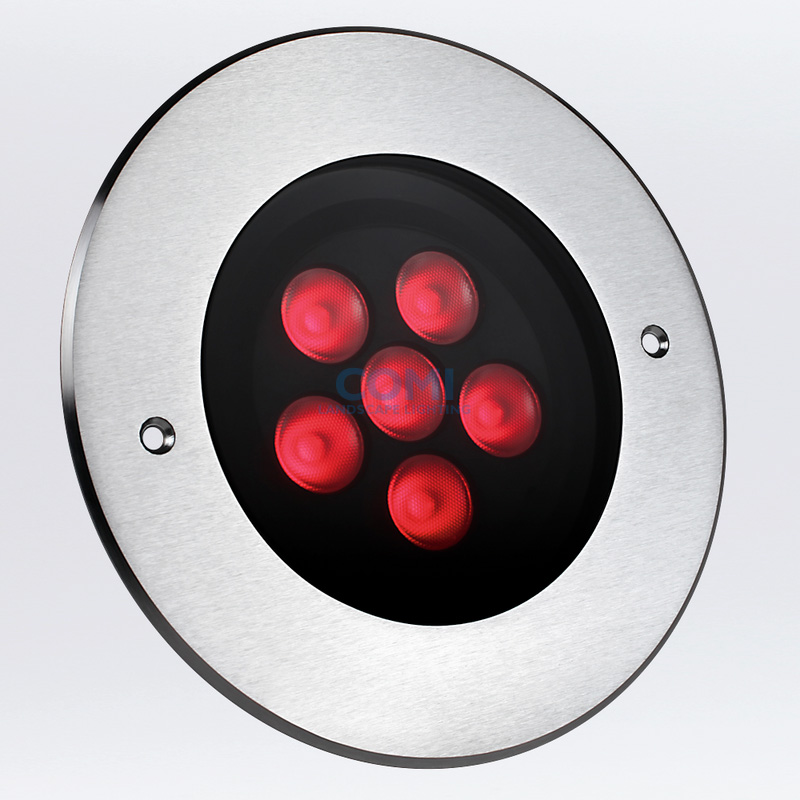

▪ Light source: 6pcs 2W mono Osram or 3W RGB high power LED.
▪ Input Voltage 24 VDC or 110/240VAC
▪ SUS 316 stainless steel front ring and aluminum lamp housing.
▪ Full area glass pressure capacity>2500KGs.
▪ Basic is Non-dimmable by PWM, 0/1-10V .
(Optional PWM, 0/1-10V, DALI dimmable or DMX512 controllable support ).

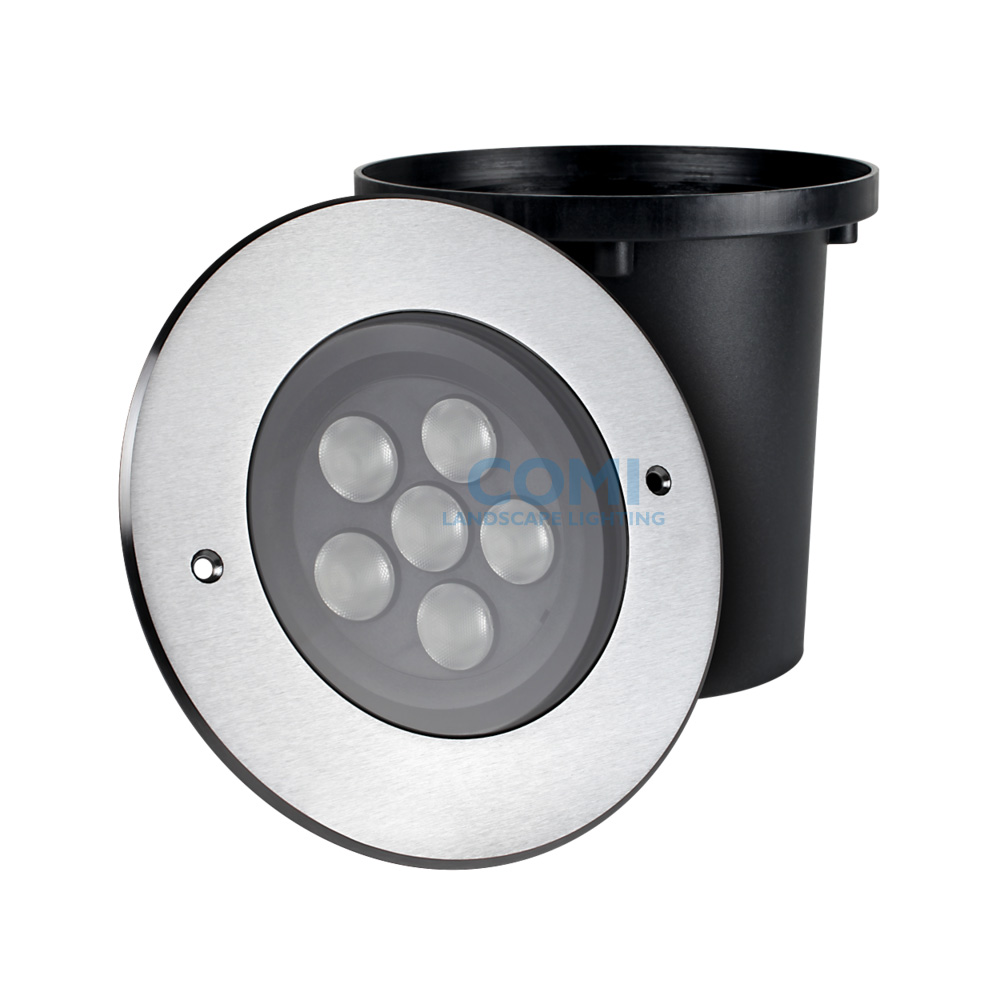

▪ Plastic mounting sleeve is included.
▪ IP classification IP67 for outdoor use.
▪ 2 Years warranty.
Material Specifications:
Housing |
12 Die-casting grey powder coated aluminum . T=60-80μm. Adhesion of ISO class 1/ASTM class 4B |
Front Ring |
Stainless steel 316L |
Light Window Glass |
Step tempered Clear/Silver Print/ Black Print glass. T=8mm |
Glass Pressure Capacity |
Full area=2274kgs |

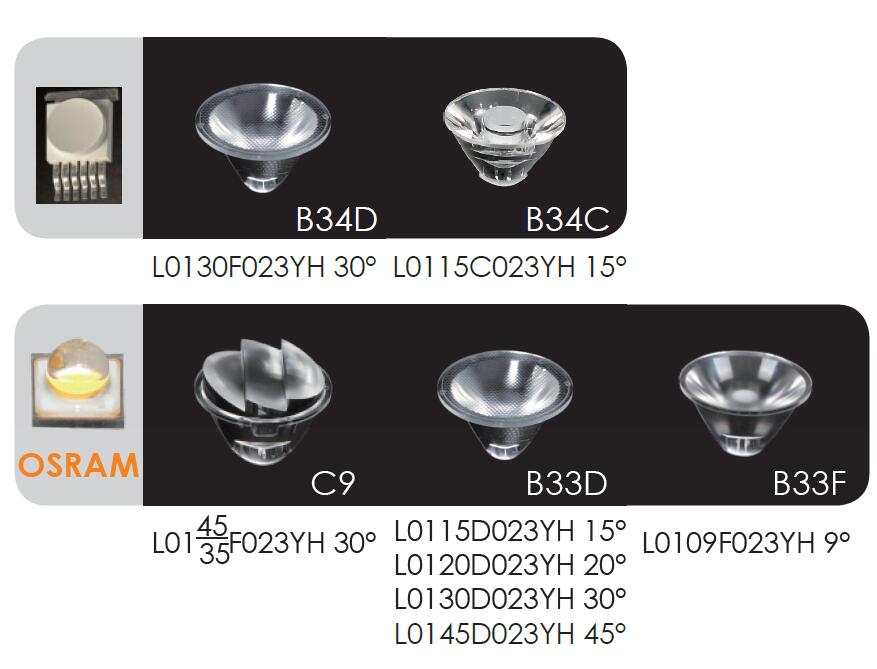

Lens |
Optical lens, efficiency≥85% |
Cable Gland |
IP-68 PG-9 PVC |
Gasket |
Molding shaped silicone seal |
LED |
TO type power LED for RGB,single color is OSRAM |
Driver |
Constant current output Single color LED=1-circuit output RGB 3-in-1 LED=3-circuit output |
Operating temperature |
-20℃~40℃ |
Electrical connection |
1x cable 0.5 m H05RN-F 2x1.0 mm² to open wires (Low Voltage) 1x cable 0.5 m H05RN-F 3x0.75 mm² to open wires (High Voltage) 1x cable 0.5 m H05RN-F 4x0.75 mm² to open wires (RGB) 1x cable 0.5 m H05RN-F 5x0.75 mm² to open wires (RGB DMX512) |

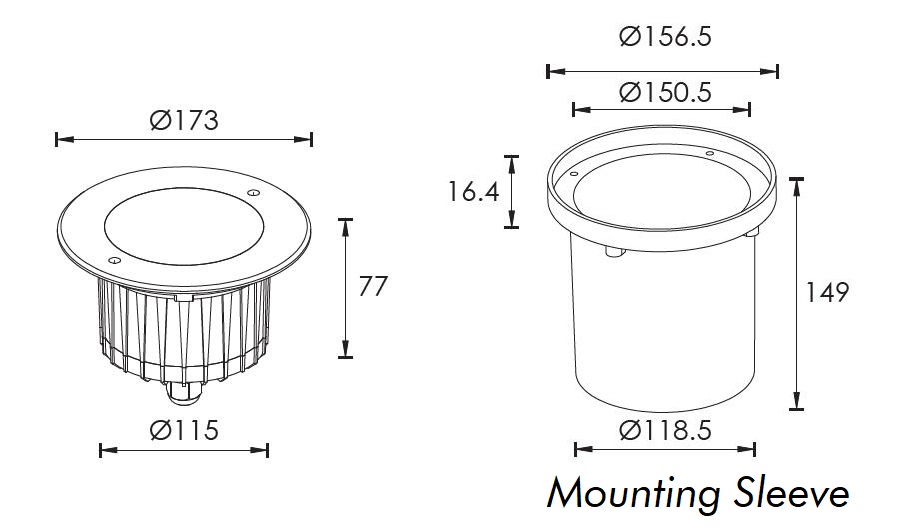

Mounting Sleeve(Incl.) |
PVC |
Control Support(Optional) |
Optional PWM, 0/1-10V, DALI dimmable or DMX512 controllable support |
Technical Specifications:
Item Number
|
Light Source
|
Lens
|
Beam
Angle |
CRI
(Ra) |
Input voltage
(V) |
Typical Operating
Current(mA) |
Typical Power
Consumption(W) |
Typical
Luminance (lm) |
IK Rating
|
FB2BFR0657
FB2BFS0657 |
6×2W
Osram Mono color |
B33D
|
20
|
Ra>80
|
24VDC
120/ 240 |
24V=562
120V=111 240V=64 |
24V=13.5
120V=13.1 240V=13.7 |
Cool white=956
Warm white=783 |
07
|
FB2BFR0618
FB2BFS0618 |
6×2W
RGB 3in1 Full color |
B34D
|
30
|
/
|
24V DC
|
R=200
G=250 B=250 |
16.8
|
300
|
07
|

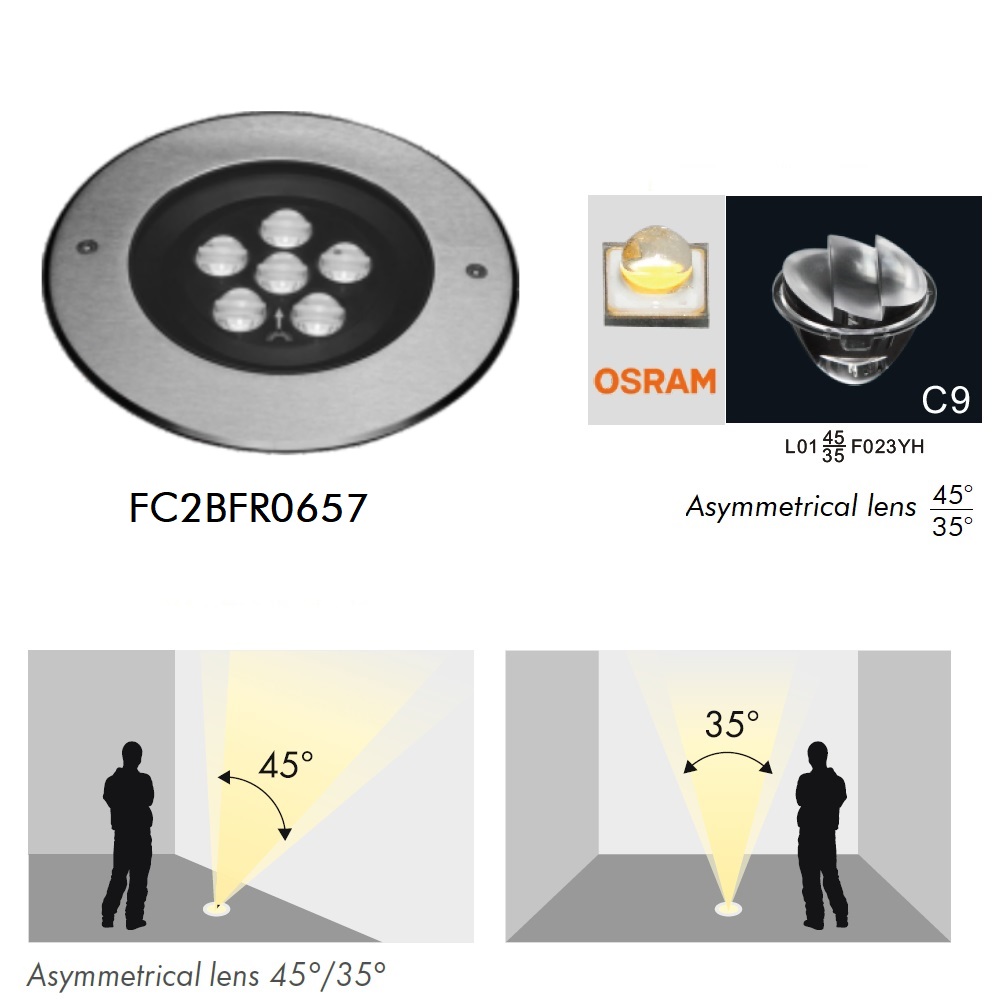

FC2BFR0657
FC2BFS0657 |
6×2W
Osram Mono color |
C9
|
45|35
|
Ra>80
|
24VDC
120/ 240 |
24V=562
120V=111 240V=64 |
24V=13.5
120V=13.1 240V=13.7 |
Cool white=757
Warm white=613 |
07
|
