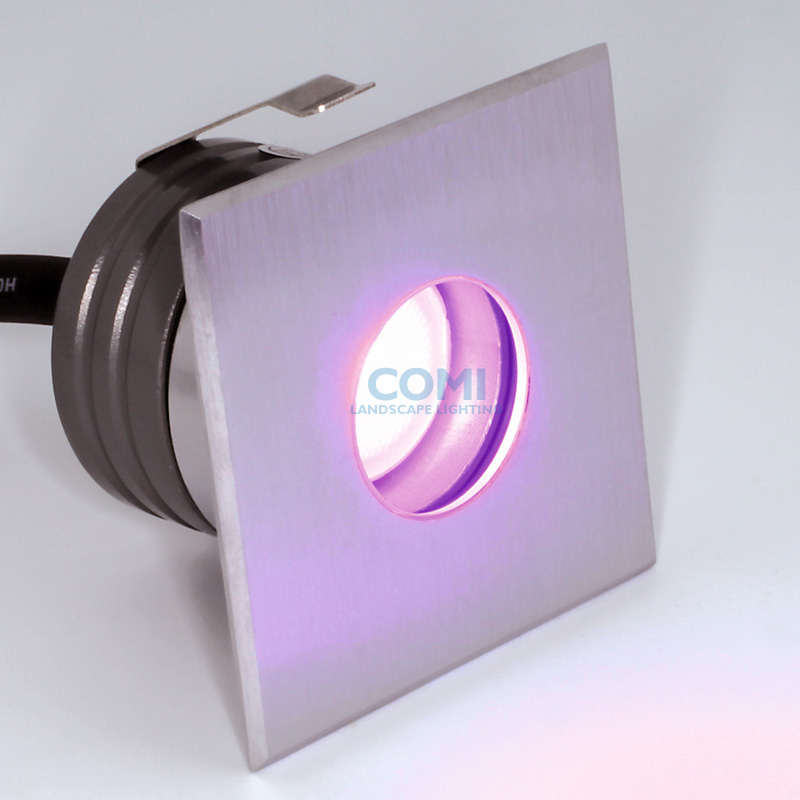

B2XAS0157 B2XAS0118 1x3W Mini Recessed Wooden Floor Light

The COMI LANDSCAPE LIGHTING 2XA-series is IP67 recessed wooden floor light with a remote metal driver box and designed for floor integration and offers various design possibilities in architectural illumination.

Features and Benefits:
▪ Very low mounting depth.
▪  Driver (24 V ➔ CCU) in separate metal box is included. Additional a 24 VDC common cathode (CC) power source is required.
▪ Dimmable, autom. colour change, DMX 512, DALI, 1-10 V controllable by COMI Recommended power supplies or controller.
▪ Input Voltage 24 VDC or 110/240VAC.
▪ Round or square SUS 316# stainless steel front ring and aluminum housing.
▪ Clear, frosted, symmetrical or asymmetrical lens for options.
▪ Full area glass pressure capacity= 1100 kg.
▪ IP classification IP67 for outdoor use.
▪ 2 Years warranty.


Material Specifications:

Housing 12 Die-casting grey powder coated aluminum . T=60-80μm.
Adhesion of ISO class 1/ASTM class 4B
Front Ring Stainless steel SUS316#
Glass Step tempered glass T=7mm
Glass Pressure Capacity Full area=1106kgs
Operating Temperature
-20℃~40℃
Driver Remote type LED Driver, constant current output
Power Cable 0.5m H05RN-F 2x 1.0 mm² to open wires (Low Voltage)
0.5m H05RN-F 3x 0.75 mm² to open wires (High Voltage)
0.5m H05RN-F 4x 0.75 mm² to open wires (RGB)
Control Support(Optional) TRIAC, DALI, PWM, 0/1-10V, DMX512(Inquire separately)


COMI Lighting 2XA-Series Recessed LED Wooden Floor Lights



Technical Specifications:

Item No. Light Source Lens Degree Input Voltage


Typical Operating
Current(mA)


Typical Power
Consumption(W)
Typical
Luminance
IK Rate
B2XAR0157
B2XAS0157
1×2W
Single color
10°, 25°,
45°,60°
24VDC
120/240V
24V=104
120V=58
240V=29
24V=2.5
120v=3.1
240V=3.1
Cool white=83
Warm white=68
08
B2XAR0118
B2XAS0118
1×3W
RGB 3in1
Full color
25°, 45°,60°
24VDC
R=26.5
G=44
B=45
2.8 59.5
08
C2XAR0157
1×2W
Single color
45°|35°
24VDC
120/240V
24V=104
120V=58
240V=29
24V=2.5
120v=3.1
240V=3.1
Cool white=80
Warm white=66
08
D2XAR0157
D2XAS0157
1×2W
Single color
120°
24VDC
120/240V
24V=104
120V=58
240V=29
24V=2.5
120v=3.1
240V=3.1
23.3 08
D2XAR0118
D2XAS0118
1×2W
RGB 3in1
Full color
120°
24VDC
R=26.5
G=44
B=45
2.8 16.8 08

Notes:
1.Specification is subjected to change without prior to notice.
