B2WDR0157 B2WDR0118 1x2W Small Round LED Inground Lamp

The COMI LANDSCAPE LIGHITNG B2W-series inground light is designed for floor integration and offers various design possibilities in architectural illumination.

Features and Benefits:
▪  Small size with dimension Φ55xH82mm.
▪  1piece 2W LED or 3W 3-in-1 RGB LED.
▪  Input voltage 12-24VDC and 110~240VAC for options.
▪  Symmetrical light output.
▪  SUS 316 stainless steel front ring and aluminum lamp body.
▪  Full area glass pressure capacity more than 1700KGs.
▪  Basic is Non-dimmable by PWM, 0/1-10V .
  (Optional PWM, 0/1-10V, DALI dimmable support).
▪  Easy install by plastic sleeve(included) or clip.
▪  IP classification IP67 waterproof for outdoor use.
▪  2 Years warranty.


B2WDR0157 B2WDR0118 1x2W or 3W RGB 3-in-1 Round LED IP67 Inground Lights

B2WDR0157 B2WDR0118 1x2W or 3W Small Size LED Inground Lamp Application



B2W C2W D2W LED Inground lights



Material Specifications

Housing 12# Die-casting grey powder coated aluminum.
T=60-80μm Adhesion of ISO class 1/ASTM class 4B

Front Cover

Stainless steel SUS 316#

Light Window Glass Step tempered glass.T=7mm
Cable Gland IP-68 PG-9 PVC
Glass pressure capacity Full area=1704kgs
Gasket Molding shaped silicone seal
Lens Optical lens.efficiency≥85%
Operating Temperature -20˚C~40˚C
Electrical Connection ▪ 1cable 0.5meters H05RN-F 2X1.0mm² to open wires (low voltage)
▪ 1cable 0.5meters H05RN-F 3X0.75mm² to open wires(high voltage)
▪ 1cable 0.5meters H05RN-F 4X0.75mm² to open wires(for RGB)

Dimmable Support PWM, 0/1-10V, DALI Optional.
Mounting Sleeve(Included) Black plastic



Technical Specifications

Item Number
Light Source
CRI(Ra)
(White color)
Lens
Selected Lens
 Degree (Θ1/2)
Input Voltage
 (V)
Typical Operating
 Current(mA)
Typical Power
Consumption(W)
Typical
Luminance(lm)

IK
Rated

B2WDR0157
B2WDS0157

1×2W Osram
(Single Color)

Ra>80
B33D
30°
24VDC
120/240
24V=105
120V=47
240V=28
24V=2.5
120V=3.0
240V=3.1
Cool white=130
Warm white=111
08
B2WDR0118
B2WDS0118

1×3W 3-IN-1
 RGB Full Color
/
B34D
30°
24VDC
133
3.2
68
08
C2WDR0157
C2WDS0157
1×2W Osram
(Single Color)
Ra>80
C9 45°|35° 24VDC
120/240
24V=105
120V=47
240V=28
24V=2.5
120V=3.0
240V=3.1
Cool white=130
Warm white=111
08

Notes:
1. Color: Mono (2000K,2400K,2700K, 3000K, 4000K, 6000K, Red,Green, Blue and etc.) , RGB
2. Specifications are subjected to change without notice.

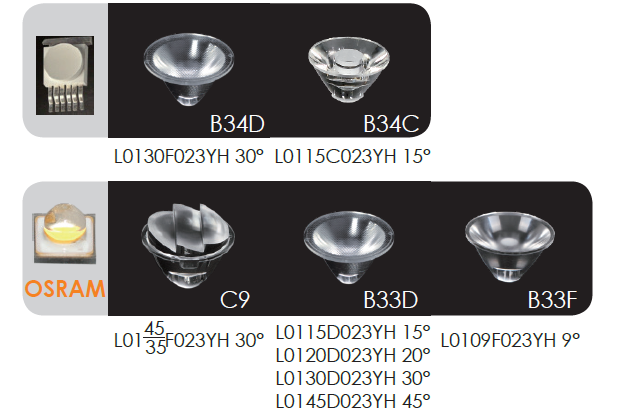

Lens and LED:


lens and LED for B2W-Series LED Inground lgihts
