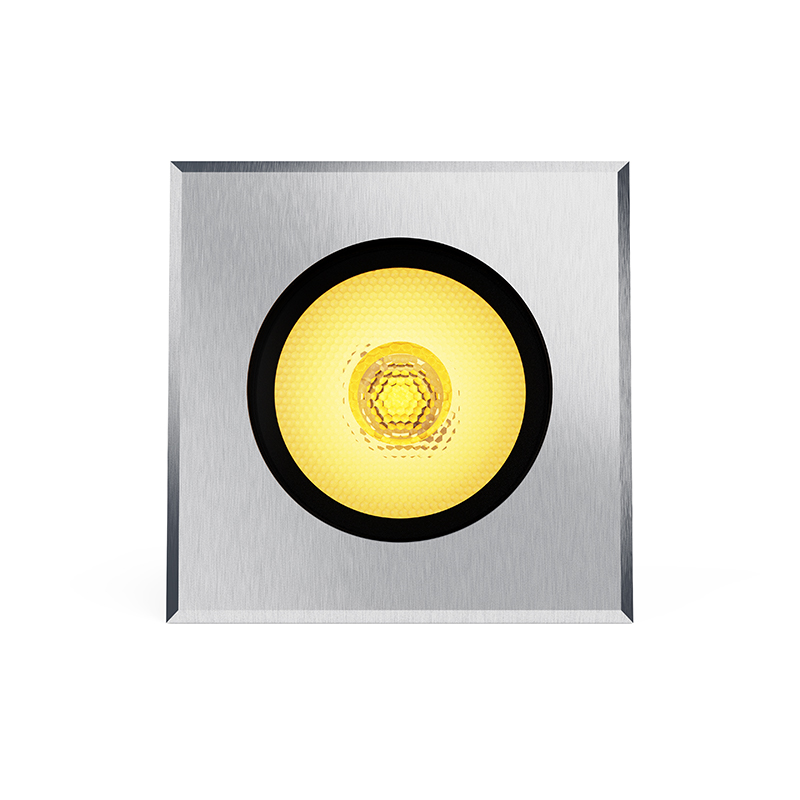

The COMI LANDSCAPE LIGHITNG inground light is designed for ground or floor integration and offers various design possibilities in architectural illumination.
Features and Benefits:
• Dimension: L70xW70xH90mm.
• Front cover: Square cover (Round cover for options).
• Light Source:1piece 8W CREE COB LED single color LED.
• Input voltage: 24VDC, 110-120VAC, 220-240VAC
• Light color or CCT(K): 2700K, 3000K, 4000K, 5000K, 6000K, 6500K and others.
• Output Light type: Symmetrical light output.
• Materials: SUS 316 stainless steel front ring and Die-casting aluminum housing.
• Optional accessory:Honeycomb louver, used for anti-glare light.
• Dimming and control methods:
(1) Basic ON/OFF and Non-dimmable.
(2) Optional dimming with remote 0/1-10V, DALI,DMX dimming driver support.
• Installation: Easy recessed installation by rubber O-ring or stainless steel spring.
• Mounting accessory: aluminum mounting sleeve (included)
• IP rate: IP67 waterproof for outdoor use.
• IK rate: IK08.
• Warranty: 2 Years warranty.
• Certificates:CE, RoHS.
Housing
12 Die-casting black
powder coated aluminum .
T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
Front Ring
Stainless Steel SUS316#
Lens
Optical lens, efficiency≥85%
Light Window
Step temper glass. T=5MM
Glass pressure
capacity
Fulll area=788 KGs
LED
Osram, CREE LED
Driver
Integral driver with constant current output
Gasket
Molding shaped silicone seal
Operating
temperature
-20℃~+40℃
Power Cable
0.5m H05RN-F 2×1.0
mm² (24VDC)
0.5m H05RN-F 3×0.75 mm² (110-240VAC)
Mounting part
Rubber O-ring, or stainless steel spring piece
Mounting Sleeve
Aluminum alloy
| Item Number | Light Color | Light Source |
Beam
Angle
|
Input
Voltage
|
Typical
Power
|
Luminance
(LM)±5%
|
IK
Rate
|
| B2QDS0108 |
Single
Color
|
1x8W
Cree COB
LED, CRI 80+
|
15°,
25°,
40°, 60°
|
24VDC
120/240VAC
|
8.6W |
Cool
White=680
Warm White=571
|
08 |
