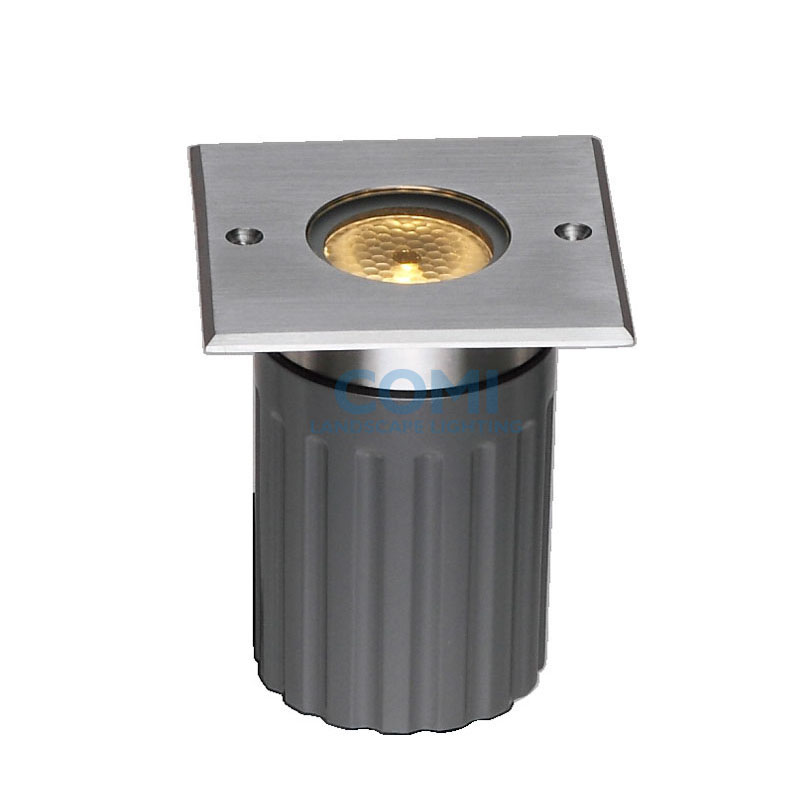

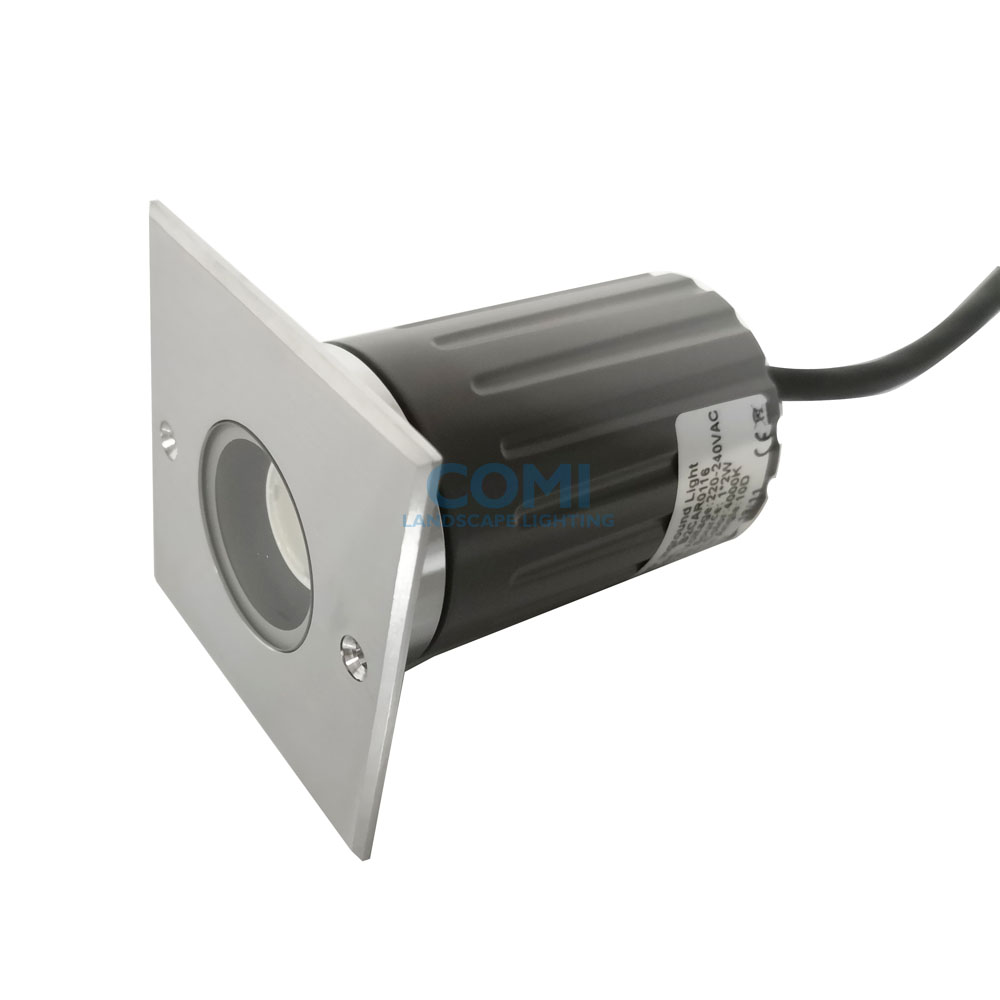

The COMI LANDSCAPE LIGHITNG B2CA-series series is designed for floor integration and offers various design possibilities in architectural illumination. Combined with slewing holder it is perfect for emphasis lighting indoors as well as outdoors.
Features and Benefits:
▪ 1x2W Osram or 3W RGB 3-in-1 LED, or RGBW 4-in-1 LED.
▪ Input voltage 12/24VDC or 110/240VAC.
▪ SUS 316 stainless steel front ring and aluminum lamp body.
▪ Clear or honeycomb optical lens for options.
▪ Full area glass pressure capacity:1330KGs.
▪ Basic is Non-dimmable by PWM, 0/1-10V .
(Optional PWM, 0/1-10V, DALI dimmable support).

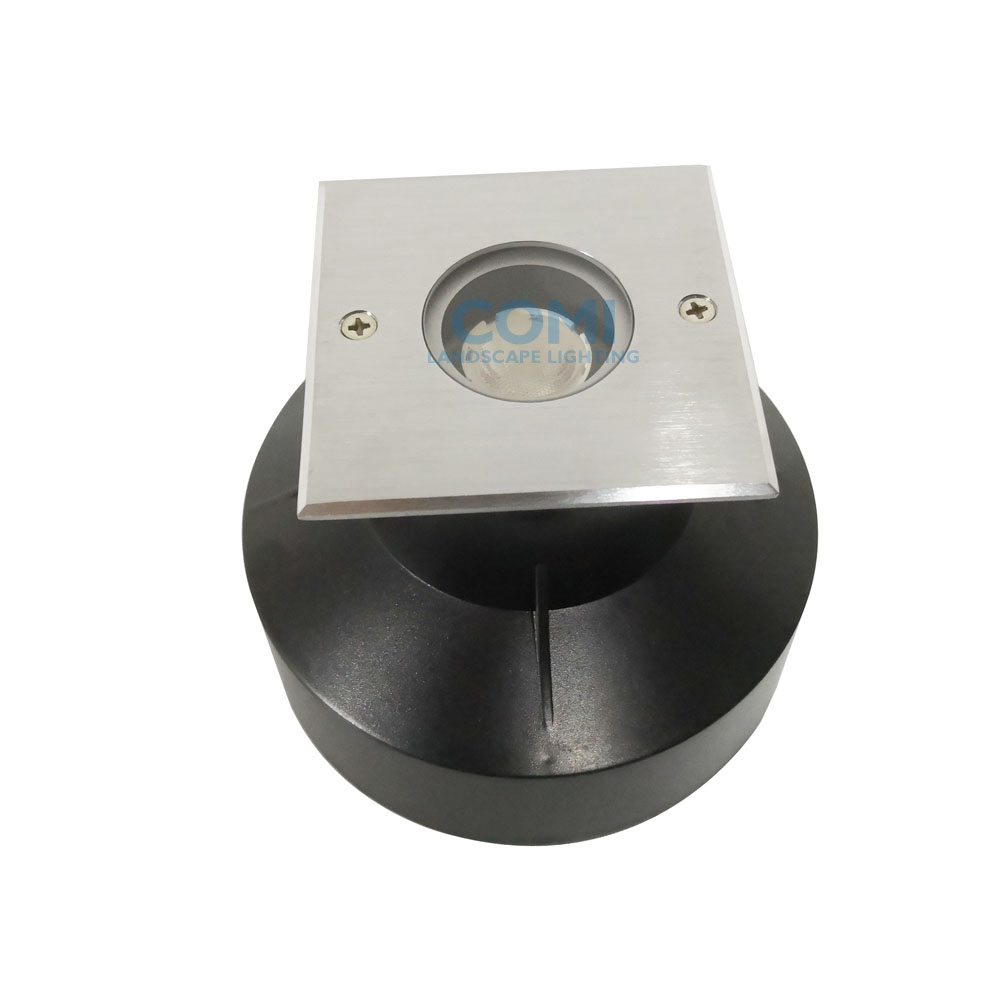

▪ Plastic mounting sleeve(included) with slewing stainless steel ring holder.
▪ IP classification IP67 for outdoor use.
▪ 2 Years warranty.
Material Specifications:
Housing |
12 die-casting grey powder coated aluminum . T=60-80μm. Adhesion of ISO class 1/ASTM class 4B |

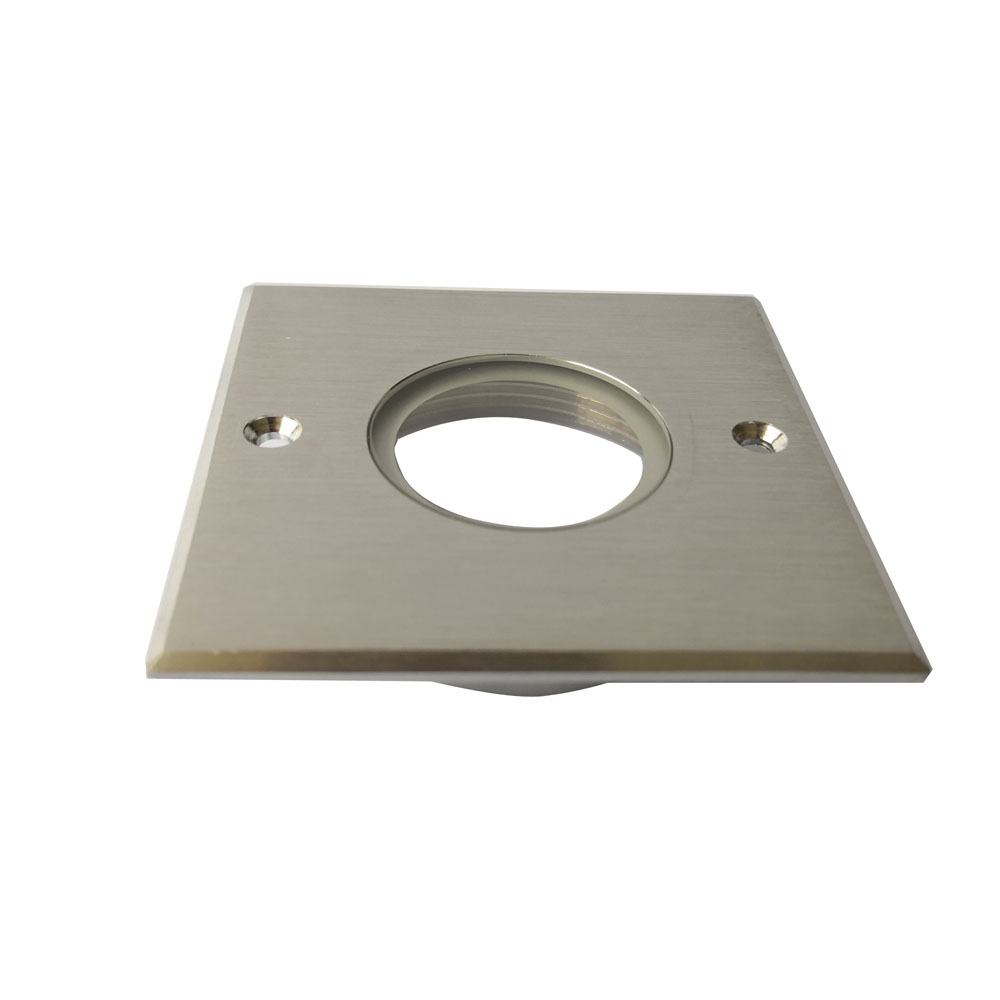

Front Ring |
Stainless steel SUS 316 |
Light Windown Glass |
Step tempered glass. T=12mm |
Load capacity |
Full area >780 kg |
Lens |
Optical lens, efficiency≥85%. 15°, 30° and asymmetrical 45°/35° |
Cable gland |
IP-68 PG-9 PVC |
Operating Temperature Range |
-20℃~45℃ |
Electrical connection |
1x cable 0.5 m H05RN-F 2x 1.0 mm² to open wires (Low Voltage) 1x cable 0.5 m H05RN-F 3x 0.75 mm² to open wires (High Voltage) 1x cable 0.5 m H05RN-F 4x 0.75 mm² to open wires (RGB) |

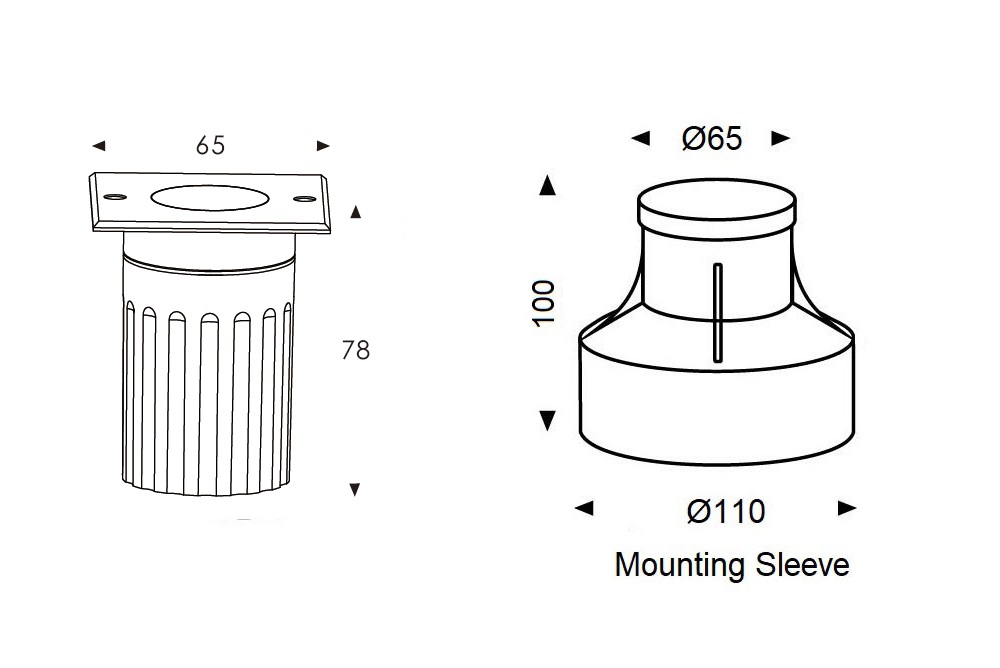

Mounting Sleeve(Included) |
ABS plastic with stainless steel ring |
Dimmable Support |
Basic non-dimmable by PWM, 0/1-10V, DALI, DMX. Optional dimmable by PWM, 0/1-10V, DALI, DMX. |
Technical Parameters
Item Number
|
Light Source
|
Beam |
CRI
|
Input Voltage
(V) |
Typical Operating
Current(mA) |
Typical Power
consumption(W) |
Typical
luminance (lm) |
IK rate
|
B2CAR0116
B2CAS0116 |
1×2W
|
30°
|
Ra>80
|
24VDC
120/240V |
24V=105
120V=48 240V=31 |
24V=2.5
120V=3.3 240V=3.6 |
Cool white=77
Warm white=65 |
08
|
B2CAR0118
B2CAS0118 |
1×3W
RGB 3in1 Full color |
30°
|
/
|
24VDC
|
R=38
G=53 B=54 |
3.5
|
49
|
08
|
D2CAR0116
D2CAS0116 |
1×2W
|
120° |
Ra>80
|
24VDC
120/240V |
24V=105
120V=48 240V=31 |
24V=2.5
120V=3.3 240V=3.6 |
Cool white=21
Warm white=19 |
08
|
D2CAR0118
D2CAS0118 |
1×3W
RGB 3in1 Full color |
120°
|
/
|
24VDC
|
R=38
G=53 B=54 |
3.5
|
12
|
08 |
Note: Specification is subjected to change without notice.
