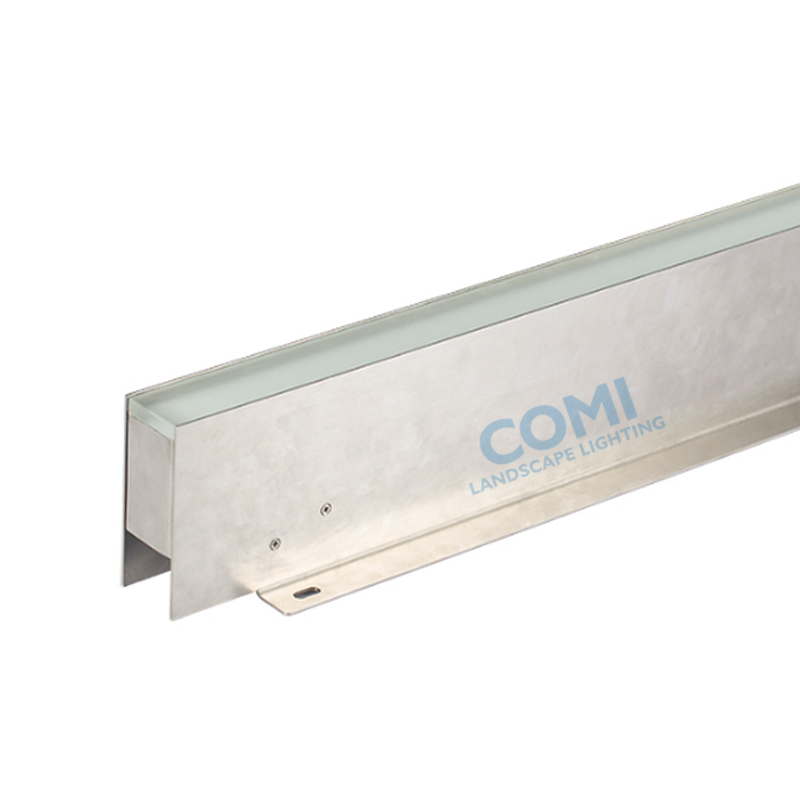

Frosted Glass 316 Stainless Steel Seamless Inground Linear Lights

COMI Landscape lighting's D2SS-series is 24VDC IP67 protected and IK10 linear LED luminaire for indoor and outdoor in-ground installation. It featured 316 Stainless Steel 316Ti housing, built-in aluminum heat sink, frame-less design and 15mm thickness frosted tempered glass. Available in standard length 500mm or 1000mm, or customized length. Suitable for installation into roads and parking lots. The product can be walked on and traversed by vehicles with air filled tires including trucks used for delivery.

Features and Benefits:
▪ Frameless design for two ends of linear luminaire enables Seamless splice installation of numerous fixtures possible.
▪ Entirely made of stainless steel 316Ti (resistant to corrosion) for lamp housing.
▪ With built-in linear aluminum heat sink for effective heat dissipation.
▪ 15mm thickness frosted tempered glass.
▪ Anti skid toughened safety glass (ESG)-withstands loads of up to 1000KG.
▪ Standard length 500mm and 1000mm (customized made length is available).
▪ Low voltage 24VDC input.
▪ Standard 12W/Meter(single color).
▪ Low-Power-LED cold white, neutral white, warm white, RGB,RGBW.
▪ Operating mode: constant voltage and DMX512 control available.
▪ Flush mounted linear lighting fixture.
▪ Fully encapsulated.
▪ Delivered with male / female IP67 connectors (plug and socket).
▪ Completely homogenous light distribution.
▪ Protection system IP 67 suitable for indoor or outdoor lighting.
▪ 2 years warranty.

Material Specifications:

Housing Stainless steel 316Ti
Light Window Frosted Tempered glass, T=15mm
LED Osram or CREE LED
Cable Gland IP68 PG-9 copper with nickel coated
Operating Humidity  0~90%
Operating Temperature
-20˚C~50˚C
Power Cable
Power cable with male / female IP67 connectors (plug and socket) or open wires




Technical Specifications:

Part Number

Length
(MM)

Light
Source

Color
Beam Angle

Input Voltage

(V)

Typical Operating
Current(mA)
Typical Power
Consumption(W)

Typical
Luminance(lm)

(2400-6500K)

IK rate
D2SSA2414
500
24PCS SMD
LED

Single Color,

RGB, RGBW

120°
24VDC
24V=250mA
6
Cool white=591
Warm white=450
10
D2SSA4814
1000
48PCS SMD
LED

Single Color,

RGB, RGBW

120°
24VDC
24V=50mA
12
Cool white=1080
Warm white=893
10
Note: Specifications and availability are subjected to be changed without notice.
