B4XC0357 Mono or B4XC0318 RGB 3-in-1 LED Recessed Pool Lights

COMI Landscape Lighting B4XC03-Series IP68 LED pool light is suitable as underwater spotlight for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.

Features and Benefits:
▪  Utilizes 3pcs 2W Osram or 3W RGB 3-in-1 LED as light source.
▪  24VDC low voltage input
▪  Made of SUS316 stainless steel completely for housing and accessories.
▪  Symmetrical light output (asymmetrical light output is available).
▪  Overheat sensor inside(Optional).
▪  IP68 waterproof,underwater installation in depth less than 1meter.
▪  Use the silicone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture.
▪  Standard non-dimmable.(Optional dimmable support with DALI, 1~10V, PWM. )
▪  PVC Mounting sleeve included.
▪  2 Years warranty.

warning for COMI Landscape lighting's underwater pool lightWarning:
▪  Water must be allowed to go inside and outside sleeve freely without leaking from the other side.
▪  This IP68 luminaire made of SUS316 stainless steel,so DO NOT operate the lighting fixture out of water for over 15 minutes (cooling).
led fountain light CE, ROHS, RGB

C4XC03-Series Mono or RGB 3-in-1 color LED Recessed Pool Light
Completely Stainless Steel SUS 316# Housing and Accessory


Material Specifications:

Front cover & Housing
Molding shaped stainless steel SUS316#
Glass
Step tempered glass.T=8mm
Gasket
EPDM gasket
Cable gland IP-68 PG-11 copper with nickel-coated
Lens Optical lens,efficiency≥85%
PCB Excellent heat conductivity aluminum.coefficient of heat Conductivity≥2.0w/mk
LED Driver Constant current output
Single color LED=1-circuit output
RGB 3in1 LED=3-circuit output
Power Cable H05RN-F 2x1.0mm2,L=3 meters(for single color)
H05RN-F 4x0.75mm2, L=3 meters (for RGB)
Application environment
Temperature of water between -20˚C~40˚C, underwater less than 1 meter depth.
Mounting Sleeve PVC Mounting Sleeve (Included)

Dimmable Support
(Optional)

Optional dimmable function support with DALI, 0~10V, PWM




Technical Specifications:

Item Number Light Source
Lens

Selected Lens
Degree (Θ1/2)

Input
Voltage(V)
Typical Operating
 Current(mA)
Typical Power
Consumption(W)
Typical
Luminance(lm)
IK Rate
B4XC0357 3x2W Osram
Single Color
B32 25 24VDC 241 5.8 Cool white=406
Warm white=315
08
B4XC0318 3x3W
RGB 3-in-1
Full Color
B32 30 24VDC R=99
G=141
B=144
9.2 145 08
C4XC0357
3x2W Osram
Single Color
C8 45/35 24VDC 241 5.8 Cool white=415
Warm white=330
08
C4XC0318 3x3W
RGB 3-in-1
Full Color
C8 45/35 24VDC R=99
G=141
B=144
9.2 160 08

Notes:
1.Color temperature for single color: 2000K, 2400K, 2700K, 3000K, 4000K,6000K,red-621nm,green-525 nm,blue-471nm.
2. Specifications are subjected to change without notice.



Dimensional Drawing:


COMI_Landscape_Lighting_B4XC03 Dimensional Drawing

Lens:

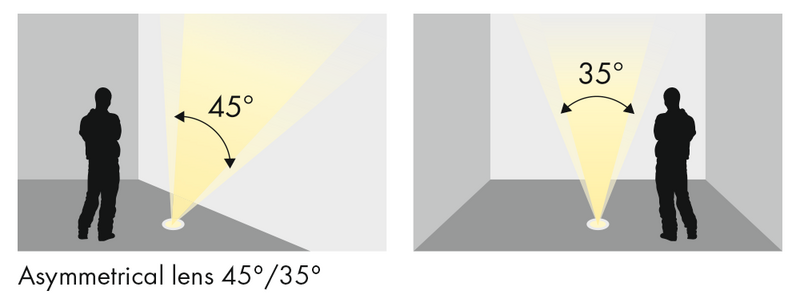

Asymmetrical Light Output Light effect:



    Asymmetrical_lens-45/35-en
