The COMI LANDSCAPE LIGHTING B4XL-series IP68 LED underwater light made of SUS 304 stainless steel which provides 600mm and 1000mm for option. The product can be surface mounted by brackets or recessed mounted by mounting sleeve(SUS 304 stainless steel or PVC). IP68 rate design is suitable as underwater spotlight for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.
Features and Benefits:

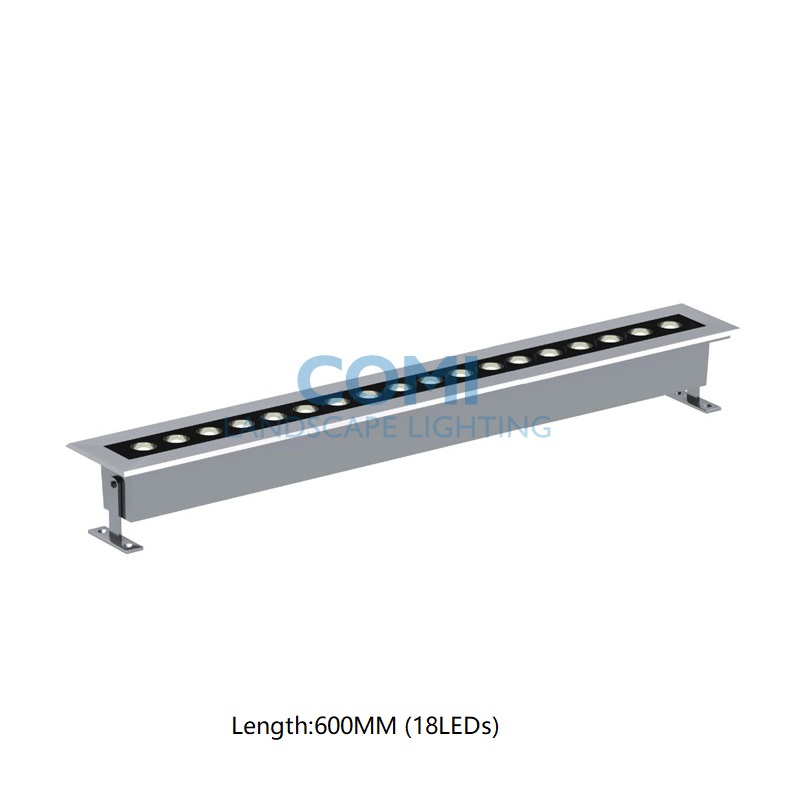

▪ 600mm and 1000mm length for options.
▪ Optional mounting methods:
(1) Surface mounted by brackets (Standard).
(2) Wall or ground recessed mounted by mounting sleeve (also named as back box).
▪ Light quantity: 12LEDs or 18LEDs for 600mm, and 24 or 36LEDs for 1000mm.
▪ LED: 1W/LED,2W/LED(mono or tunable white), 3W/LED(RGB), or 4W/LED(RGBW).
▪ Color:single color, tunable white, RGB, RGBW.
▪ 24VDC operating voltage.
▪ Beam angle: 8°, 25°, 45°,60°.
▪ Completely stainless steel SUS 304 housing&accessories;
(PVC for mounting sleeve is available).
▪ Non-dimmable. Optional DALI, 1-10 V, PWM Dimmable or DMX512 support.
▪ IP68 waterproof,underwater installation in depth less than 1meter.
▪ Use the silicone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture.
▪ CE, RoHS.
▪ 2 Years warranty.
Warning:
▪ This IP68 SUS 304 stainless steel luminaire must be installed underwater to prevent the light from burning up because of over-heating.
Technical Parameters:
IK
36pcs×1W
LED
Notes:
Item
Number
Length
Light Source
Color or CCT(K)
CRI
(Ra)
Beam
Angle
Input
Volage
Typical Current
Power
(W)
Luminous
Flux(LM)
Rate
B4XLA1256S
B4XLA1256R
600MM
12pcs×1W
CREE LED
Single
Color
Ra≥80
8°,
25°,
45°,60°
24VDC
1000mA
12W
Cool
White=1110LM
Warm White=902LM
10
B4XLA1204S
B4XLA1204R
600MM
12pcs×1W LED
RGB (4R/4G/4B)
/
8°,
25°,
45°,60°
24VDC
500mA
12W
364LM
10
B4XLA1856S
B4XLA1856R
600MM
18pcs×1W
CREE LED
Single
Color
Ra≥80
8°,
25°,
45°,60°
24VDC
1500mA
18W
Cool
White=1710LM
Warm White=1368LM
10
B4XLA1804S
B4XLA1804R
600MM
18pcs×1W LED
RGB (6R/6G/6B)
/
8°,
25°,
45°,60°
24VDC
750mA
18W
443LM
10
B4XLB2456S
B4XLB2456R
1000MM
24pcs×1W
CREE LED
Single
Color
Ra≥80
8°,
25°,
45°,60°
24VDC
2000mA
24W
Cool
White=2288LM
Warm White=1825LM
10
B4XLB2404S
B4XLB2404R
1000MM
24pcs×1W LED
RGB (8R/8G/8B)
/
8°,
25°,
45°,60°
24VDC
1000mA
24W
582LM
10
B4XLB3656S
B4XLB3656R
1000MM
Single
Color
Ra≥80
8°,
25°,
45°,60°
24VDC
1500mA
36W
Cool
White=3591LM
Warm White=2887LM
10
B4XLB3604S
B4XLB3604R
1000MM
36pcs×1W LED
RGB
(12R/12G/12B)
/
8°,
25°,
45°,60°
24VDC
1500mA
36W
910LM
10
1.The last letter "S" in item number stands for the linear light is with bracket for surface mount, and "R" stands for the Linear light is with mounting sleeve [also named as Pre-buried back box, made of 304 stainless steel(default accessory) or PVC for options] for recessed mount.
2. The light source can be 1W/LED.
3. Color: single color, tunable white, RGB, or RGBW. RGB color can be 4R/4G/4B, 6R/6G/6B,8R/8G/B, or 12R/12G/12B, Please inquire tunable white or RGBW color separately.
4. The light source of 1000mm linear light can be with 18LEDs, please inquire separately.
5. The product is optional DMX512 controllable support upon request.
6. Specifications are subjected to change without notice.
