IP67 LED Linear Lights for Indoor and Outdoor Handrail Lighting

The Linear LED handrail lighting system is designed for recessed mounted into square shaped surface stainless steel or aluminum alloy handrail for under handrail lighting , IP65 rated design and offers various design possibilities in architectural illumination and provides even and pleasant light distribution suitable for both indoor and outdoor, such as villas, parks, squares, garages and residential areas and etc.

Features and benefits:
▪ Dimensions: W17.5*H21mm.
▪ Different length available in: 80mm, 180mm, 280mm,380mm
▪ Flat front ring suitable for square handrail.

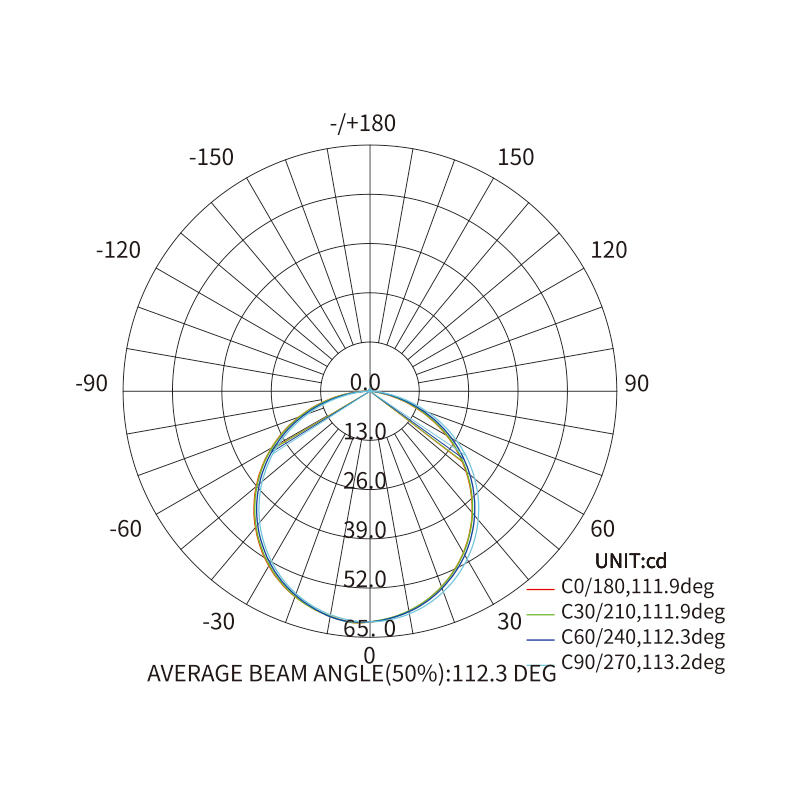

▪ Beam angle: Symmetric  120°;
▪ Working voltage: 24VDC
▪ Power: 0.5W,1.5W, 2.5W, 3.5W
▪ Light source: 30PCS 2835 SMD LED(280mm, 2.5W)
▪ Luminous Flux: 175LM@3000K(280mm, 2.5W).
▪ Light color:single color (2700~6500K).
▪ CRI: Ra>80 (CRI90+ available).
▪ Materials: Aluminum alloy housing, PMMA diffuser.
▪ Easy recessed mounted and maintenance.
▪ Suitable for ≥W30*H30mm,wall thickness 0.8~3mm square handrail.
▪ Cut out: Width:14~15mm, Length: 72mm, 172mm, 272mm, 372mm.
▪ Maximum connected power no more than 100W
▪ Average life time: 30000 hours@70% lumen depreciation.
▪ IP Rate: IP65 Waterproof (don't submerse into water).
▪ Ambient Temperature: -20℃ ~ +45℃.
▪ 2 Years warranty.

ce rohs coc etl tuv led handrail lights

Technical Parameters for IP65 LED Linear Handrail Lights for Outdoor Under Railing Lighting:

Item No.
Control
Mode
Length
(mm)
Light
Color
Light source
Beam
Angle
Input
Voltage
Typical
Current
(mA)
Typical Power
(W)
Typical Luminance
(LM)
IP
Rate
S18S-080-XX ON/OFF 80mm Single
8×0.06W
2835 SMD
LED
120° 24VDC 20 0.5W 35LM IP65
S18S-180-XX ON/OFF 180mm Single
20×0.08W
2835 SMD
LED
120° 24VDC 62.5 1.5W 105LM IP65
S18S-280-XX ON/OFF 280mm Single
30×0.08W
2835 SMD
LED
120° 24VDC 104 2.5W 175LM IP65
S18S-380-XX ON/OFF 380mm Single
40×0.08W
2835 SMD
LED
120° 24VDC 145 3.5W 245LM IP65
Notes:
1. Single color: 2700K, 3000K, 4000K, 5000K, 6000K, 6500K and blue color and etc.
2. Specifications are subjected to change without notice.
