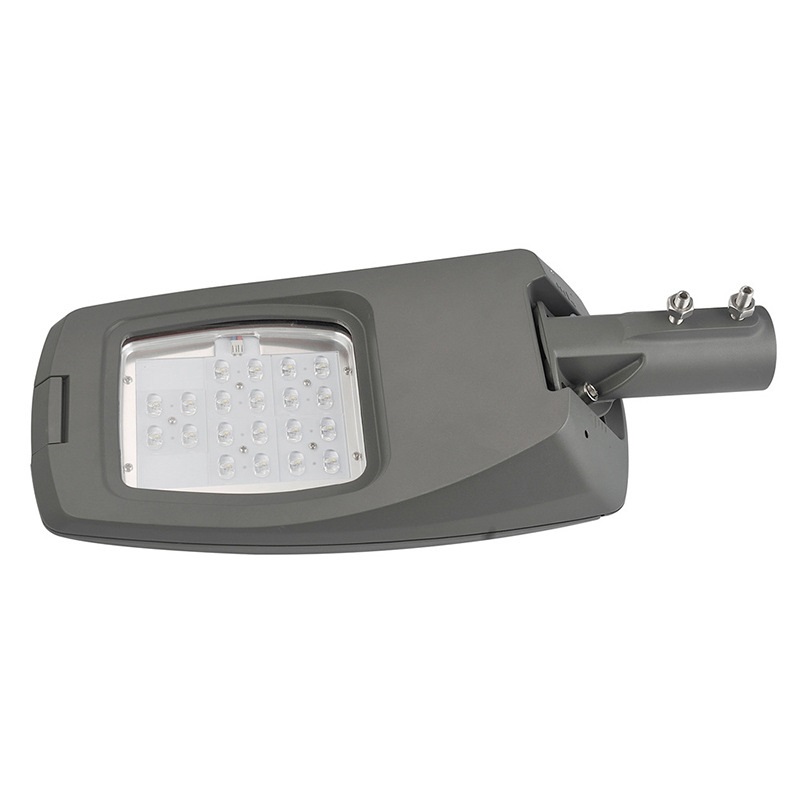

Galaxy Micro LED Street Light features include a tool-free, quick-access gear plate, vertical or horizontal mounting options, second optical design for customized road lighting, and various light distributions upon request. Optional smart controls include ON/OFF and dimming (1–100%) via DALI/DALI2 protocols, with NEMA socket (3/5/7-pin) support for plug-and-play controller installation. Built to withstand harsh environments, it offers IP66 ingress protection, IK08 impact resistance, and integrated 10kV SPD. Fully compliant with CE,RoHS, ETL standards.
Features and benefits:
• Available power:
(1) Rated Power @530mA: 13W, 20W, 26W, 33W, 40W
(2) Rated Power @700mA: 18W, 26W, 35W, 42W, 52W
• Input voltage: 110-270VAC, 50/60Hz
• Various light distribution available upon request.
• Top of luminaire housing with optional standard plug & play 3/5/7-pin NEMA socket for luminaire controller installation
•Optional control:ON/OFF, Optional integrated dimming of the luminaire (1-100%) the module is controlled by DALI/DALI2 protocol.
•Materials: Die cast Aluminum housing+temper glass light windown

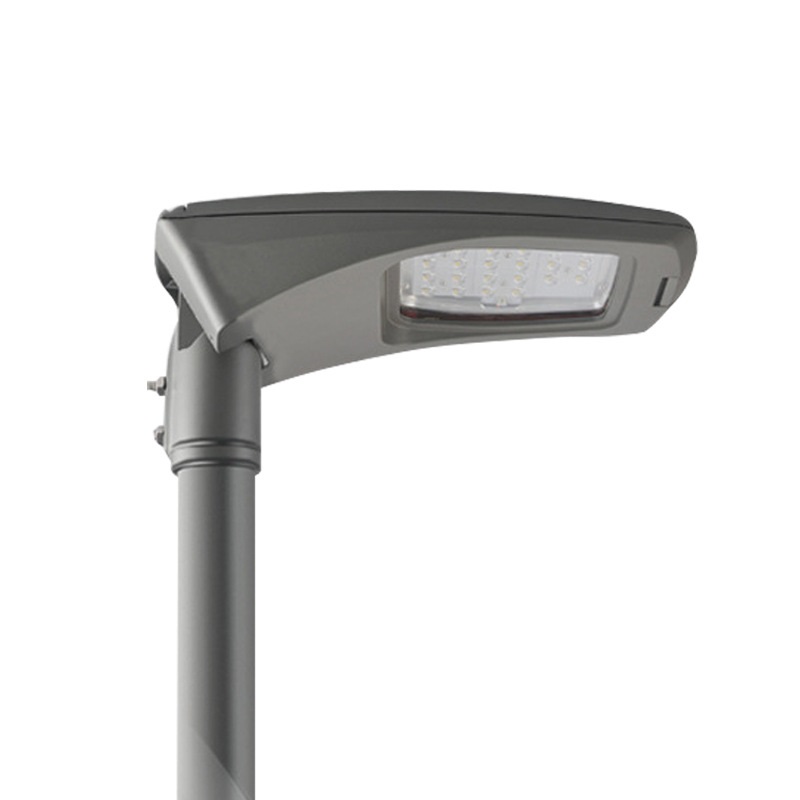

•Vertical and Horizontal 2 kinds of installation
•Quick and tool free to open and dismantle the gear plate
•Second optical design for different roads
• Light window: Optional clear or frostedTempered glass
• With 10kV SPD(Surge Protection Device) inside
• IP Rate:IP66
• IK Rate: IK08
• Compliance: CE, RoHS, ETL and etc.
• Warranty: Standard 3-Year (or 5-Year)
Technical Parameters for LED Street Lights:
Notes:
Item
Number
Control
Mode
Light Color or
CCT(K)
Light Source
Input Voltage
Power
(W)
Luminous
Flux
(LM) (@4000K)
Light
Efficiency
(LM/W)
PF
IK
Rate
09GM108
ON/OFF,
DALI and
others
2700K,
3000K, 4000K, 5000K, 6000K, 6500K
8PCS×1~3W
Cree/Philips/Ledestar LEDs, CRI80+
110-270VAC,
50/60Hz
13W
(@550mA),
18W (@700mA),
1674LM
(13W)
2180LM (18W)
120~130LM/W
>0.95
IK08
09GS112
ON/OFF,
DALI and
others
2700K,
3000K, 4000K, 5000K, 6000K, 6500K
12PCS×1~3W
Cree/Philips/Ledestar LEDs, CRI80+
110-270VAC,
50/60Hz
20W
(@550mA),
26W (@700mA),
2576LM
(20W)
3136LM (26W)
120~130LM/W
>0.95
IK08
09GS116
ON/OFF,
DALI and
others
2700K,
3000K, 4000K, 5000K, 6000K, 6500K
16PCS×1~3W
Cree/Philips/Ledestar LEDs, CRI80+
110-270VAC,
50/60Hz
26W
(@550mA),
33W (@700mA),
3360LM
(26W)
4256LM (33W)
120~130LM/W
>0.95
IK08
09GS120
ON/OFF,
DALI and
others
2700K,
3000K, 4000K, 5000K, 6000K, 6500K
20PCS×1~3W
Cree/Philips/Ledestar LEDs, CRI80+
110-270VAC,
50/60Hz
33W
(@550mA),
42W (@700mA),
4144LM
(33W)
5040LM (42W)
120~130LM/W
>0.95
IK08
09GS124
ON/OFF,
DALI and
others
2700K,
3000K, 4000K, 5000K, 6000K, 6500K
24PCS×1~3W
Cree/Philips/Ledestar LEDs, CRI80+
110-270VAC,
50/60Hz
40W
(@550mA),
52W (@700mA),
5152LM
(40W)
6272LM (52W)
120~130LM/W
>0.95
IK08
1. CRI70+, CRI80+, CRI90+ are available;
2. Standard light efficiency for Outdoor LED street lights is 120-130LM/W. Optional 130LM/W or 150LM/W upon request.
3. Specification and availability are subjected to change without notice.
Dimension for LED Street Lights (Units:mm)
Inner Structure of LED Street Luminaire:
Light distribution for LED Street Lights
