COMI Landscape lighting's new type LED wallpack available from 35W to 100W which featured up to 130LM/W for flat PC cover type and up to 170LM/W for right-angle PC cover(Standard). 130lumen per watt equal to 250W, 400W HPS/MH Bulbs. IP65 waterproof for outdoor lighting. Which is widely used for applications for the wall of house and hotel etc other places that may need lighting.
Features and benefits:
▪ Wattages available: 35W, 55W, 80W, 100W, (150W).
▪ Replacement: 100W HPS, 200W HPS, 300W HPS, 400W HPS, (600W HPS).
▪ Input voltage: 100-277VAC/50-60Hz( 200-480VAC available).

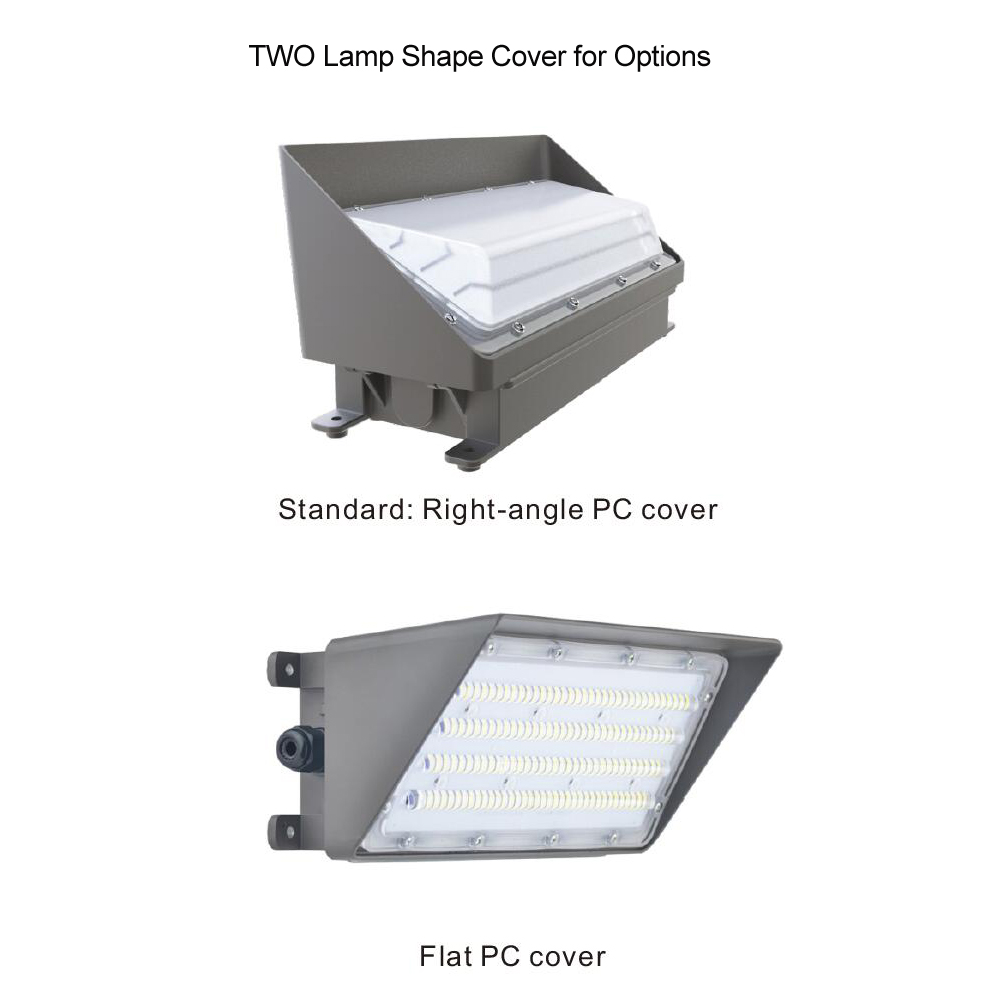

▪ 2-type lamp cover for options:
(1) Standard: Right-angle PC cover(130lm/w);
(2) Special:Flat PC cover(170lm/w).
▪ CCT(K): 2700K/ 3000K / 4100K/ 5000K/ 5700K/6500K.
▪ CRI(Ra): Ra>80.
▪ Beam Angle: 100x100°.
▪ Material:aluminum heat sink and PC cover.
▪ UL listed power supply.
▪ Motion sensor available,the default is no motion sensor.
▪ Lamp housing color:(standard) Grey or black.
▪ Easy installation.
▪ PF>0.95.
▪ No RF interference, No IR/UV radiation ,no mercury pollution.
▪ Environment friendly ,70~80% energy saving compared with HPS.
▪ IP Rate: IP65.
▪ 5 Years warranty.
Technical Specifications(For Right-angle PC cover):
|
Part Number
|
Light Source
|
Beam Angle
|
Power
|
Input Voltage
|
Luminous |
Replacement
|
CRI |
Operation Temp. |
PF
|
IP Rate
|
Warranty
|
|
B8RSD35W-B2
|
SMD LED
|
100x100°
|
35W
|
100-277VAC, |
4550lm
|
100W HPS
|
Ra>80
|
-40 to +45℃
|
>0.95
|
IP65
|
5 years
|
|
B8RSD55W-B2
|
SMD LED
|
100x100°
|
55W
|
100-277VAC,
50-60Hz |
7150lm
|
200W HPS
|
Ra>80
|
-40 to +45℃
|
>0.95
|
IP65
|
5 years
|
|
B8RSD80W-B2
|
SMD LED
|
100x100°
|
80W
|
100-277VAC,
50-60Hz |
10400lm
|
300W HPS
|
Ra>80
|
-40 to +45℃
|
>0.95
|
IP65
|
5 years
|
|
B8RSD100W-B2
|
SMD LED
|
100x100°
|
100W
|
100-277VAC,
50-60Hz |
13000lm
|
400W HPS
|
Ra>80
|
-40 to +45℃
|
>0.95
|
IP65
|
5 years
|
|
B8RSD150W-B2
|
SMD LED
|
100x100°
|
150W
|
100-277VAC,
50-60Hz |
19500lm
|
600W HPS
|
Ra>70
|
-40 to +45℃
|
>0.95
|
IP65
|
5 years
|
Notes: Specifications are subjected to change without notice.
