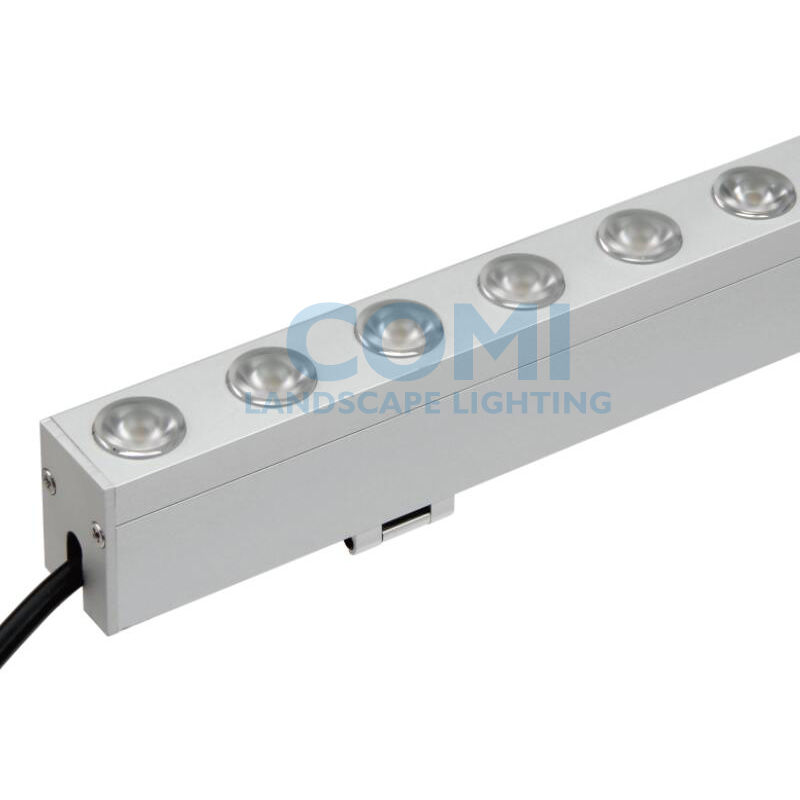

The COMI Landscape Lighting B6WP-series IP65 LED Linear Light bar are ideal for the illumination of wall surfaces, e.g. buildings or walls in outdoor areas. With features mini design ( W21*H31mm) and available in length 100mm, 200mm, 300mm, 500mm, 600mm and etc. , enables it also widely used for ambient lighting in indoor applications. It is very easy installation by snap type bracket.
Features and Benefits:

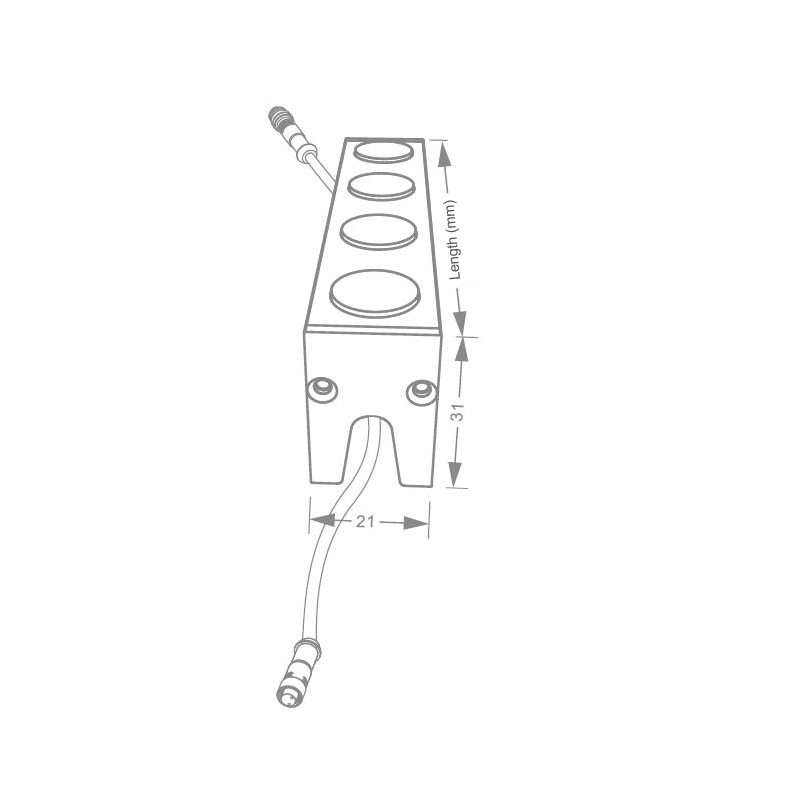

▪ Mini size lamp body with dimension L*W21*H31mm
▪ Homogeneous light output.
▪ Light source: 4pcs/ 8pcs/ 12pcs/20pcs/ 24pcs Cree LED.
▪ 24VDC input voltage.
▪ Power:4.2W/ 8.4W/ 12.6W/ 21W/ 25W.
▪ Light efficiency: 98LM/W

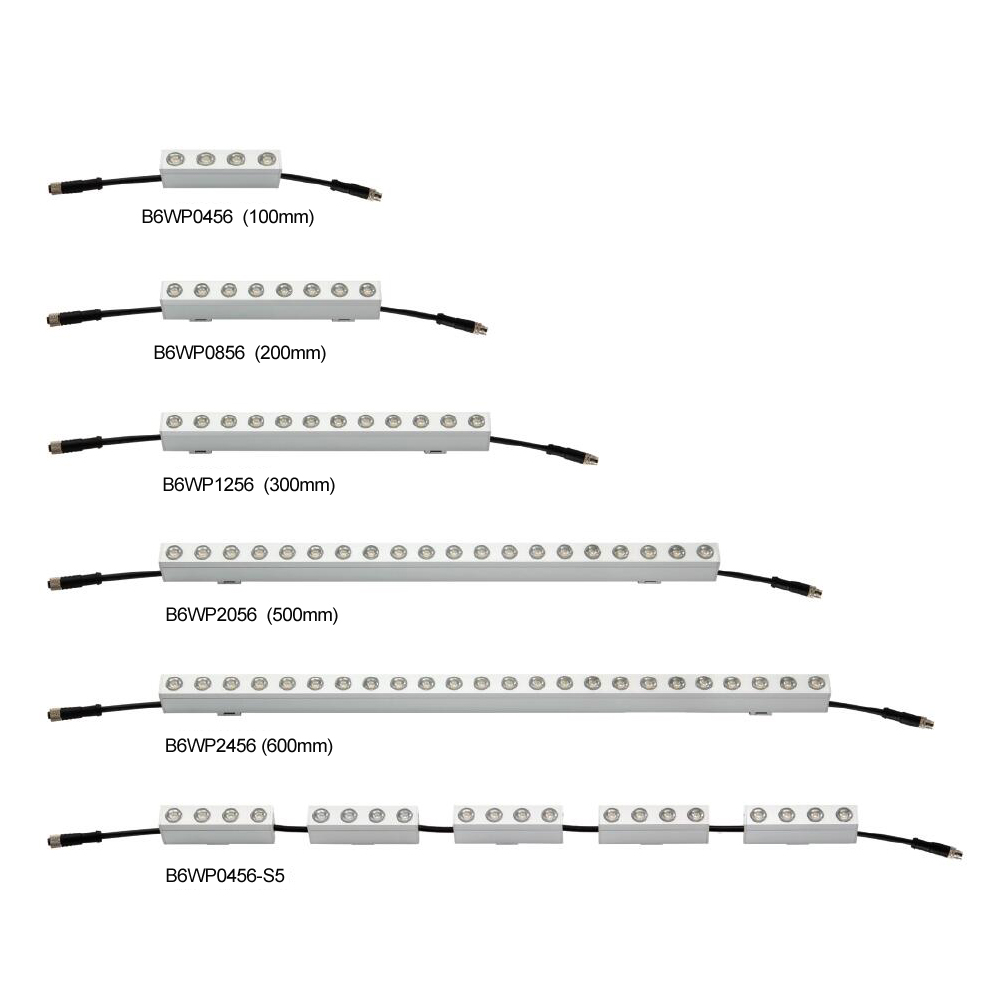

▪ Length available: 100mm/200mm/300mm/500mm/600mm/or customized length.
▪ Color/CCT(K): Mono color 2200-6500K

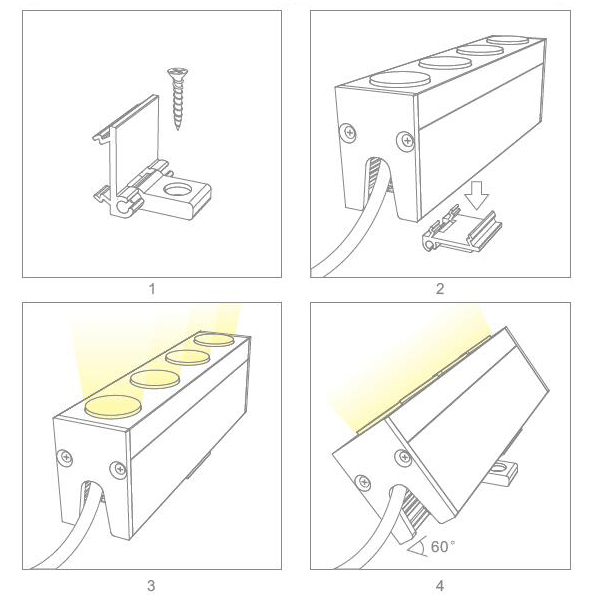

▪ Snap type adjustable bracket: 60degree angle adjustable.
▪ Installation by angle adjustable and side to side adjustable bracket.
▪ Optional Dimmable DALI, 1-10 V, PWM,or DMX 512 controllable support.
▪ Power cable come with IP67 waterproof connector
▪ Two ends power cable output from: Direct end or bottom of the wall washer.
▪ IP67 rating.
▪ 2 Years warranty.
Note:
This mini wall washer cannot be submersed into water though it is IP67 rated.
Material Specifications
|
Housing |
Extruded aluminum, powder coated or anodising |
| Lens |
Optical lens, efficiency≥90% |
|
Cable Gland |
IP-68 PVC |
|
Gasket |
Glass and housing are silicone sealed |
| LED |
Single color 1W CREE LED |
|
Operating Temperature |
-20˚C~40˚C |
| Bracket | Aluminum alloy |
| Power Cable | 0.2meters comes with IP67 connector |
| Controllable Support |
Optional PWM, DALI, 1-10 V, DMX512 dimmable support |
Technical Specifications
|
Item Number
|
Light source
|
CRI
(White) |
Beam Angle
|
Length
L=(mm) |
Input Voltage
(V)
|
Typical Operating
Current(mA) |
Typical Power
Consumption(W) |
Typical
Luminance(lm) |
IP rate
|
|
B6WP0456
|
4×1W CREE
Single color |
Ra>80
|
20°,30°
|
100
|
24Vdc
|
180
|
4.2
|
Cool white=430 |
IP67
|
|
B6WP0856
|
8×1W CREE |
Ra>80
|
20°,30°
|
200
|
24Vdc
|
360
|
8.4
|
Cool white=860
Warm white=842 |
IP67
|
|
B6WP1256
|
12×1W CREE
Single color |
Ra>80
|
20°,30°
|
300
|
24Vdc
|
540
|
12.6
|
Cool white=1290
Warm white=1263 |
IP67
|
|
B6WP2056
|
20×1W CREE
Single color |
Ra>80
|
20°,30°
|
500
|
24Vdc
|
900
|
21
|
Cool white=2150
Warm white=2100 |
IP67
|
|
B6WP2456 |
24×1W CREE Single color |
Ra>80
|
20°,30° |
600 |
24Vdc |
1080
|
25
|
Cool white=2580 Warm white=2520 |
IP67
|
|
B6WP0456-S5 |
20×1W CREE
Single color |
Ra>80
|
20°,30°
|
100×5
|
24Vdc
|
900
|
21
|
Cool white=2150
Warm white=2100 |
IP67
|
Notes:
1. Customized length are available.
2. Specifications are subjected to change without notice.
