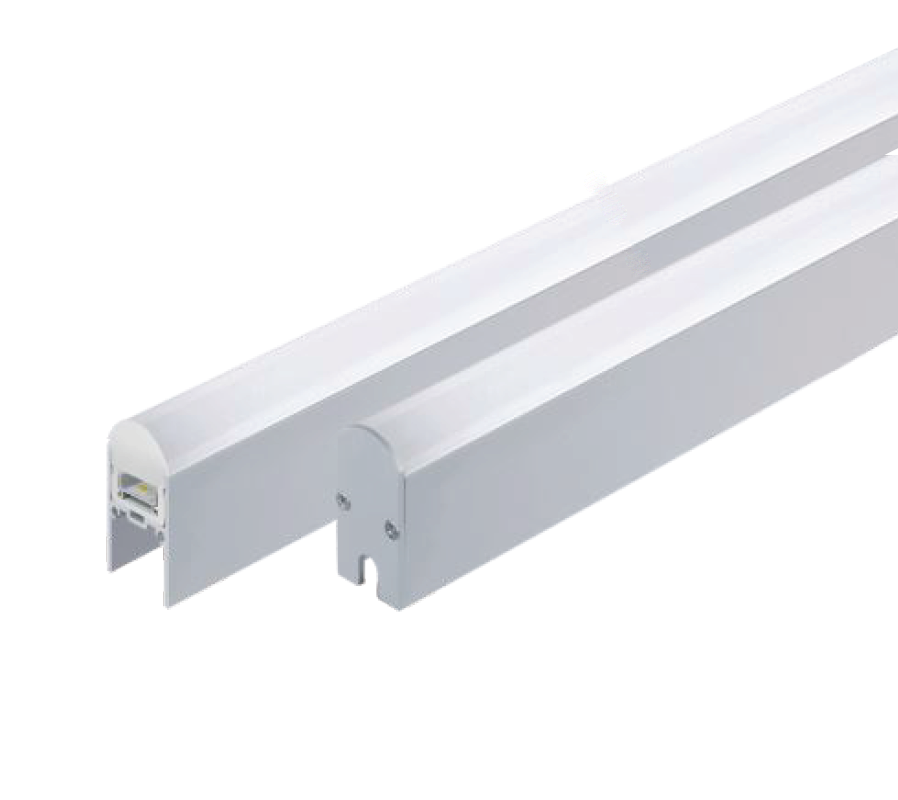

IP67 LED Linear Light with Domed Shaped Opal white Diffuser

Elevate any space with the domed shaped diffuser linear LED luminaire from COMI LANDSCAPE LIGHTING. Engineered for both beauty and resilience, this versatile fixture delivers a flawless, homogeneous light beam free of dots or shadows, thanks to its domed opal white PMMA diffuser.

Designed for seamless end-to-end connections, create continuous runs of light up to 3 meters for a stunning, uninterrupted visual effect on walls and ceilings. Encapsulated in an IP67-rated housing of robust PMMA and aluminum, it is perfectly suited for both indoor and outdoor applications, standing up to the elements.

Offering unparalleled flexibility, choose from single color, tunable white, RGB, or RGBW, with high CRI options available for superior color rendering. Achieve the perfect ambiance with fully dimmable control and optional SPI/DMX systems.

Features and Benefits:
• Domed shaped opal white PMMA diffuser,dots free.
• High quality and homogeneous light over entire emission surface.
• PMMA one-time extrusion LED profile, length up to 3meters max.
• Low voltage 24VDC working voltage.
• Color: single color, tunable white, RGB, or RGBW.
• Can be seamless connection: lined up optically and mechanically.
• The inner strip light or light bar can be customized made, advised max 15W/meter.
• Basic CRI80+ (CRI90 or CRI95+ are available).

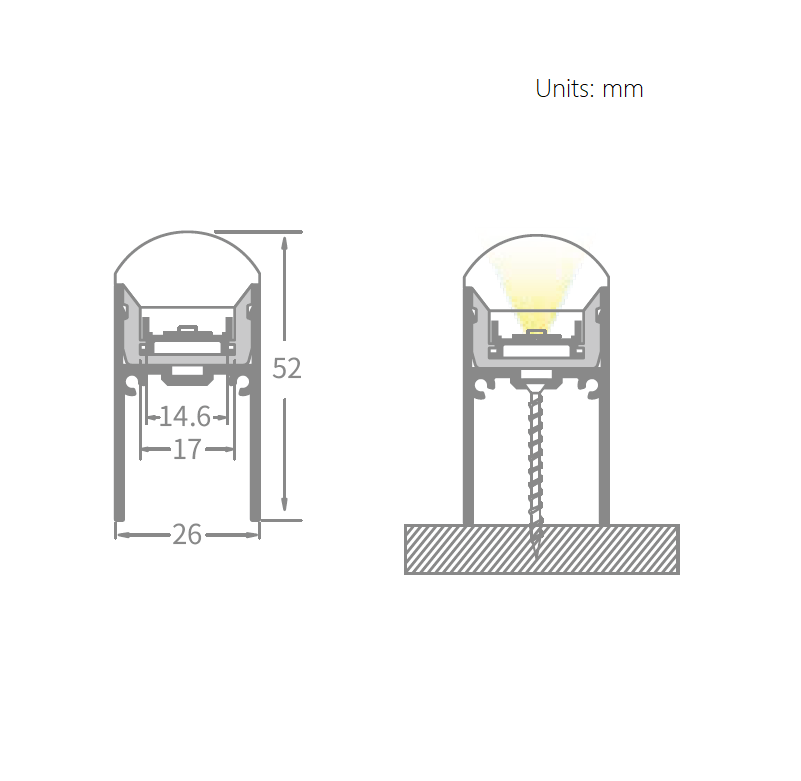

• Surface Mounted installation by aluminum mounting profile.
• Bottom or direct end entry ( to Open wires, or IP67 connectors)
• Fully PWM dimming, SPI or DMX control are available upon request.
• IP67 suitable for indoor or outdoor.
• 2 Years warranty.


Technical Parameters of Domed Opal white IP67 Surface Mounted LED Linear light:

Item Number
Length
(mm)
Control
Mode
Light Color Light Source Input Voltage
Power Consumption
(W)
Luminous Flux (LM)
IK
Rate
IP
Rate
06DL-1000 1000mm
ON/OFF,
PWM,
Single Color 120pcs×2835 SMD LED, CRI 80+ 24VDC 15W/m 850LM/meter IK10 IP67
Notes:
1. CCT(K) for single color:2200~6500K. Tunable white, RGB, RGBW are available upon request.
2. Control mode: basic ON/OFF, PWM, it is dimming with remote DALI/0-10V/DMX512/TRIAC dimming driver. Optional DMX512, SPI.
3. Specifications are subjected to change without notice.
