The COMI LANDSCAPE LIGHITNG's Variable Beam Spotlight Series has been specifically designed to finally provide the perfect spread of light required with an adjustable lens function. Simply rotate the graduated ring to spread the beam angle from a narrow 15° beam to a wide 60° beam angle.This feature finally offers the flexibility to spot of flood areas like never before. Featuring a extensive mounting accessories for options to meet a wide variety of Applications and a pan-and-tilt mounting plate for precisely aligned for projection angle. Protection class IP66 rated design is ideal for controlling light spread on internal or external columns, or wall washing lighting effect, also suitable for both indoor and outdoor architectural lighting, landscape lighting, garden lighting, or even controlling specific areas to highlight.
Features and Benefits:

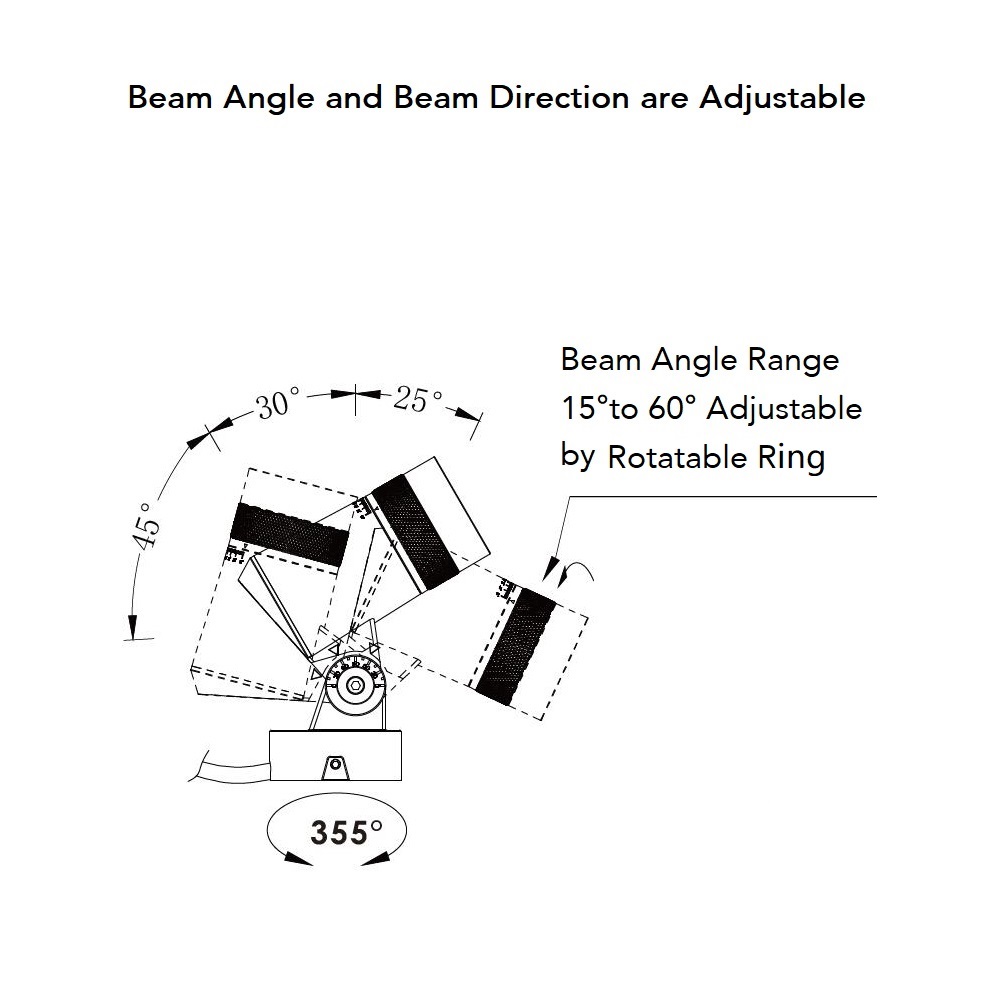

▪ Variable beam-Adjustable Outdoor LED Spotlight With Zoomable Lens:
(1) Simply rotate the graduated ring to adjust the beam angle;
(2) Narrow 15° beam to a wide 60° beam angle adjustable.
(3) Offers the flexibility to spot of flood areas.

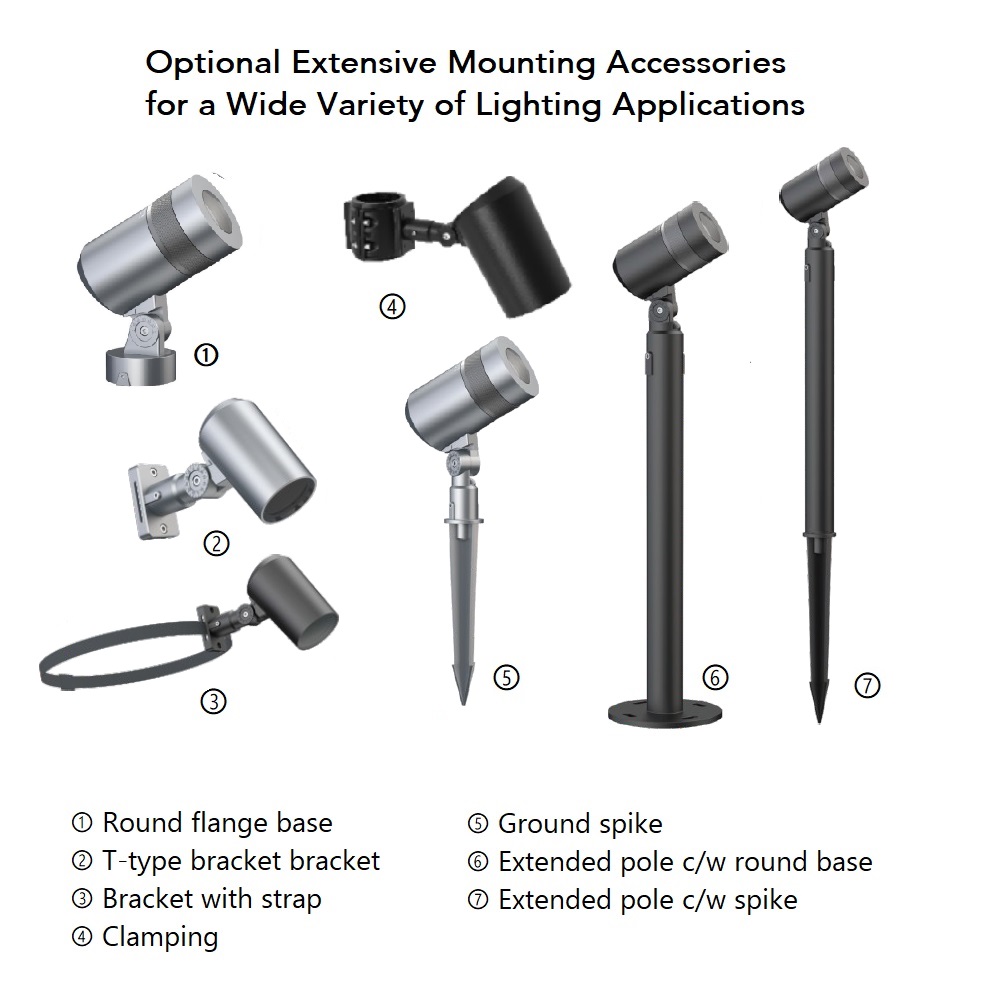

▪ Variety mounting accessories for options to meet wide range of Applications:

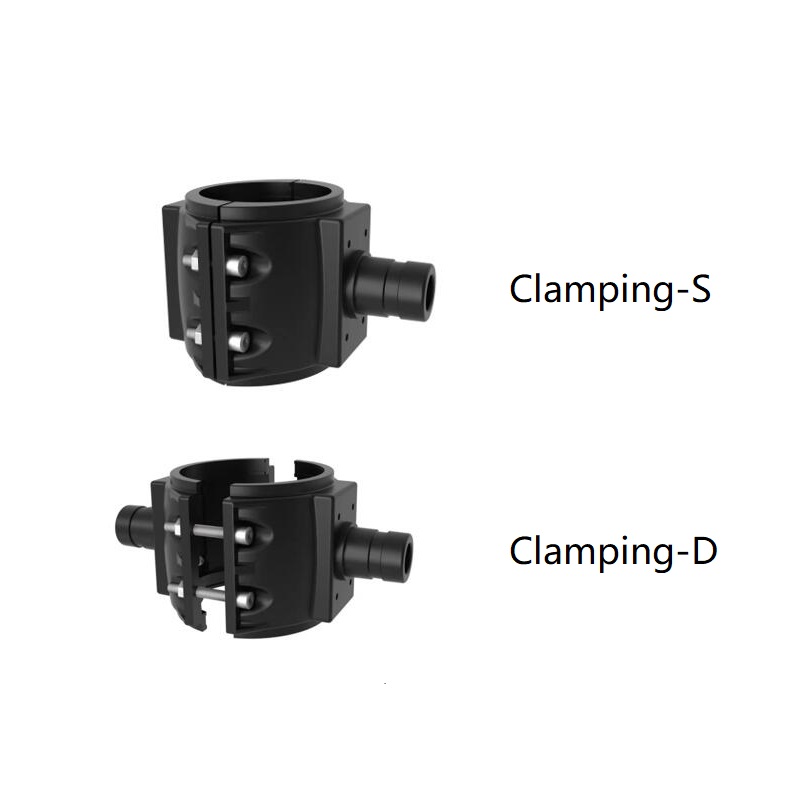

(1) Round flange base; (2) Ground spike,; (3) T-type bracket; (4) clamping;
(5) Bracket c/w strap; (6) Extended pole c/w base; (8)Extended pole c/w spike.
▪ Working voltage for Options: 24VDC,110-120V,220-240V, and 110-240V.
▪ Light source: 1 piece 8W CREE COB LED.
▪ Luminaire Power Consumption: 6W;
▪ Light efficiency: 50~80LM/W (subjected to different beam angle).
▪ Optional control mode: ON/OFF, DALI, 0-10V, DMX512, TRIAC, PWM.
▪ Optional lighting accessories: honeycomb louver, honeycomb glass and filter.
▪ Multiple direction adjustable for projection direction.
▪ With pan-and-tilt mounting plate for precisely aligned for projection angle.
▪ Finished color: Powder coated black or dark grey.
▪ IP rate and IK rate: IP66 and IK08.
▪ Ambient temperature:-20℃~+40℃.
▪ CE, RoHS certificate.
▪ 3 Years warranty.
Variable Beam Spotlight with Zoomable lens is part of a growing trend in indoor or outdoor architectural and landscape lighting that uses minimalist luminaires. Aiming to enhance rather than distort the landscape, the spotlight is small and compact and can be installed as a bollard or spotlight. The zoom system is easily adjustable for end use, and the light can accurately accentuate elements of the architecture and landscape with its integrated light optics. The light beam ranges from 15 to 60 degrees.
Materials Specifications of IP66 Waterproof Variable Beam Spotlight:
|
Housing |
12 Die-casting grey or black powder coated aluminum alloy. T=50-55μm . Adhesion of ISO class 1/ASTM class 4B |
| Light window | Clear temper glass. |
| Lens | Optical lens, efficiency ≥90% |
| LED | CREE or OSRAM COB LED |
| PCB |
Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
| Gear |
Integrated LED driver with Constant current output |
| Finish color | Powder coated: black, grey or other customized made finish color |
| Power Cable |
▪ 0.5M H05RN-F 2×1.0mm² (Low voltage) ▪ 0.5M H05RN-F 3×0.75mm² (High voltage) ▪ 0.5M H05RN-F 5×1.0+3×0.50mm² (for DALI, or DMX512) |
|
Operating Temperature |
-20℃~+40℃ |
| Mount accessory (incl.) |
Round flange base(aluminum alloy). |
| Optional Control Support | DALI, 0~10V,PWM, DMX512, TRIAC |
Notes:
1. Standard finish color is black or dark grey, if you want other finish color or customized made color, please contact us separately.
2. Please inquire us separately for other optional variety mounting accessories:
(1) Ground spike,; (2) T-type bracket; (3) clamping; (4) Bracket c/w strap; (5) Extended pole c/w base; (6)Extended pole c/w spike.
Electrical Specifications of IP66 Adjustable Beam Angle LED Spot Light:
| Item Number |
Control
Mode
|
Light Color | Light Source |
Beam Range (Ɵ:1/2)(°) |
Input Voltage |
Power |
Luminance (LM) (±10%) |
IK Rate |
| VB3QAM0110 | ON/OFF | Single Color |
1×8W
CREE COB LED,
CRI80+
|
15°~60° Variable |
24VDC
110-120VAC
220-240VAC
|
6W |
Cool White=450
Warm White=362
|
08 |
Notes:
1. Single color: 2700K, 3000K, 3300K, 4000~4300k, 5000~5300K, 6000~6500K.
2. Control Mode: standard ON/OFF, optional DALI, 0-10V, DMX512, TRIAC, please inquire separately.
3. Specifications are subjected to change without notice.
