The COMI Landscape Lighting B1Q-series is designed for wall or ceiling integration and offers various design possibilities in architectural illumination.
Features and Benefits:
▪ Square front cover, optional grey/ black/ white cover color.
▪ Light Source: 1*2W OSRAM CRI80+ or 3W RGB 3-in-1 LED.
▪ Color: Single color or RGB for options.
▪ 110~240VAC or 24VDC input.
▪ Elliptic shape light output window with Asymmetrical light output.
▪ Provides various installation methods:
(1) Ceiling recessed or wall recessed;
(2) Installation with clips embedded into sleeve,fix on the concrete wall;
or Installation with clips directly.
▪ Standard is non-dimmable.
Optional dimmable or DMX 512, DALI, 1-10 V controllable support.
▪ PVC mounting sleeve is included.
▪ IP65 and IK10 rating.
▪ 2 Years warranty.

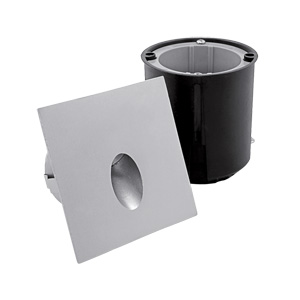

B1QS0102(Single Color) / B1QS0106 (3-in-1 RGB) IP65 Square Recessed LED Wall Lights with Back Mounting Sleeve
Material Specifications:
|
Housing |
12# Die-casting aluminum T=20-25μm.Adhesion of |
|
Light Source |
1piece 2W OSRAM CRI80+ LED or 3W RGB 3-in-1 LED. |
|
Driver |
Constant current output |
|
Operating temperature |
-20˚C~40˚C |
|
Power Cable |
▪ 1x cable 0.5meters H05RN-F 2X1.0mm² to open wires (Low voltage) ▪ 1x cable 0.5meters H05RN-F 3X0.75mm² to open wires(High voltage) ▪ 1x cable 0.5meters H05RN-F 4X0.75mm² to open wires(for RGB) |
|
Mounting Sleeve(incl.) |
Plastic |
Technical Parameters:
Note:Specification is subjected to change without notice.
Item Number
Lens
Light Source
Lens Degree
Selected(Θ1/2)
Input Voltage
(V)
Typical Operating
Current(mA)
Typical Power
Consumption(W)
Typical
Luminance(lm)
IK rate
B1QS0102
-
1x2W
Osram
80
24VDC
120/240
24V=110
120V=48
240V=28
24V=2.6
120V=3.0
240V=3.1
Cool white =75
Warm white=66
10
B1QS0106
-
1X3W
RGB 3-in-1
Full Color
80
24VDC
R=38
G=53
B=56
3.5
24
10
