The COMI Landscape lighting's D1WD-series 8W hight brightness output LED wall light & Stair light is with different light distribution and designed for wall or step integration and offers various design possibilities in architectural illumination.

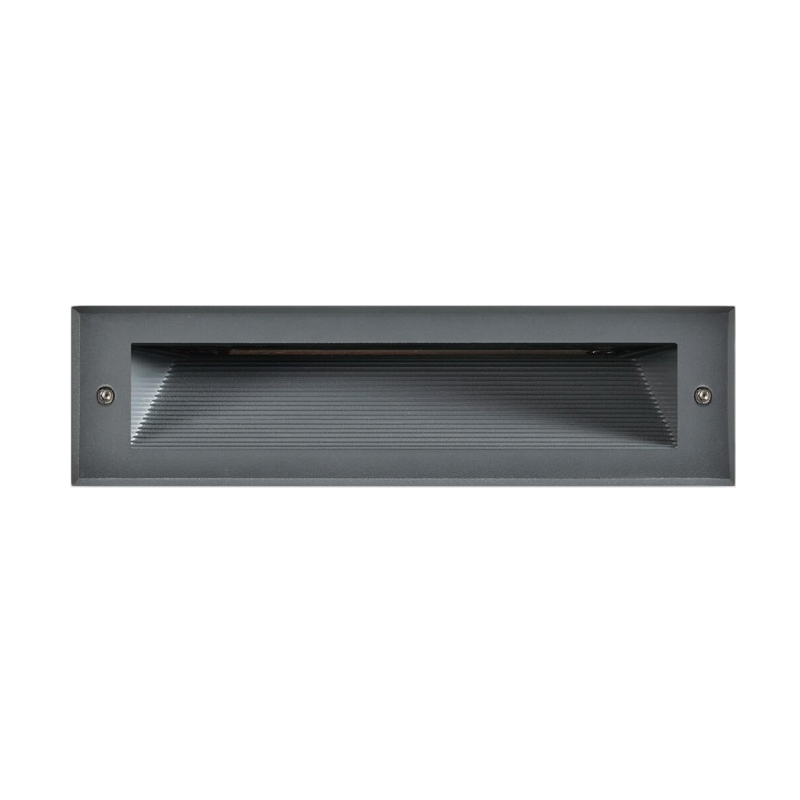

Features and benefits (Item No.: D1WDA4808):
▪ 300LM High brightness output
▪ Rectangle front cover
▪ 220-240Vac 50/60Hz input.
▪ Rated power: 8W
▪ 48pcs 2835SMD LED as light source.
▪ CRI(Ra)>80 or CRI>90 (for 2200-6500K only).
▪ Color: 2200-6500K.
▪ Asymmetrical Beam angle: 75×95°.
▪ Frosted light window glass.
▪ Optional finished color: white, grey, black.

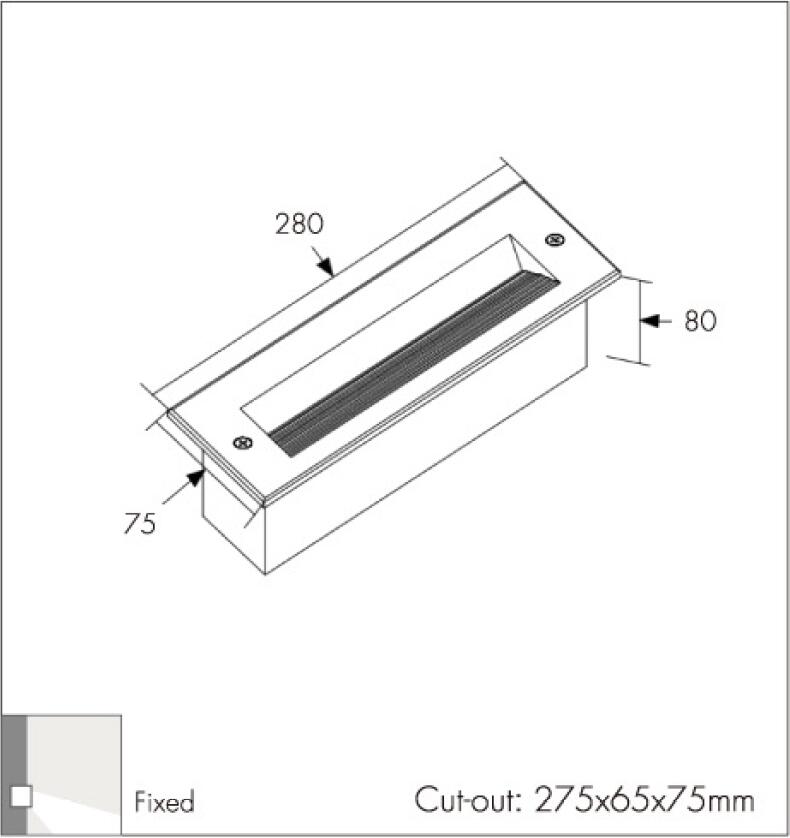

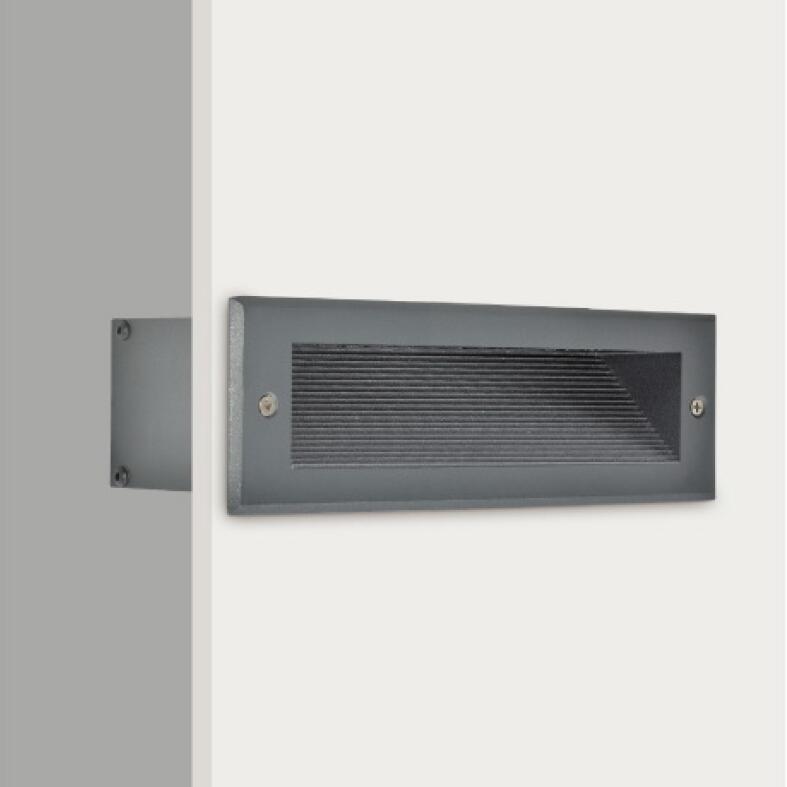

▪ Easy wall recessed install by mounting sleeve(included)
▪ IPclassification: IP65 (for outdoor use).
▪ 2 Years warranty.
Material Specifications:
| Housing |
12 Die-casting electrostatic powder coated aluminum. T=60-80μm. Adhesion of ISO class 1/ASTM class 4B |
| Front Cover |
12 Die-casting electrostatic powder coated aluminum, T=20-30μm Adhesion of ISO class 1/ASTM class 4B |
|
Cable Gland |
IP-67 copper and nickel coated |
|
Gasket |
Molding shaped silicone seal |
| LED | SMD LED |
| Driver |
Integrated constant current waterproof driver |
|
Operating Temperature |
-20℃~40℃ |
|
Power Cable |
0.5meters H05RN-F 3x0.75mm² to open wires |
| Mounting Sleeve(Incl.) | Aluminum |
Technical Specifications:
|
Item Number
|
Light Source
|
CRI(Ra)
(White color)
|
Lens
|
Beam
Angle
|
Input Voltage
(V)
|
Typical Operating
Current(mA)
|
Typical Power
Consumption(W)
|
Typical
Luminance(lm)
|
IK
Rated
|
|

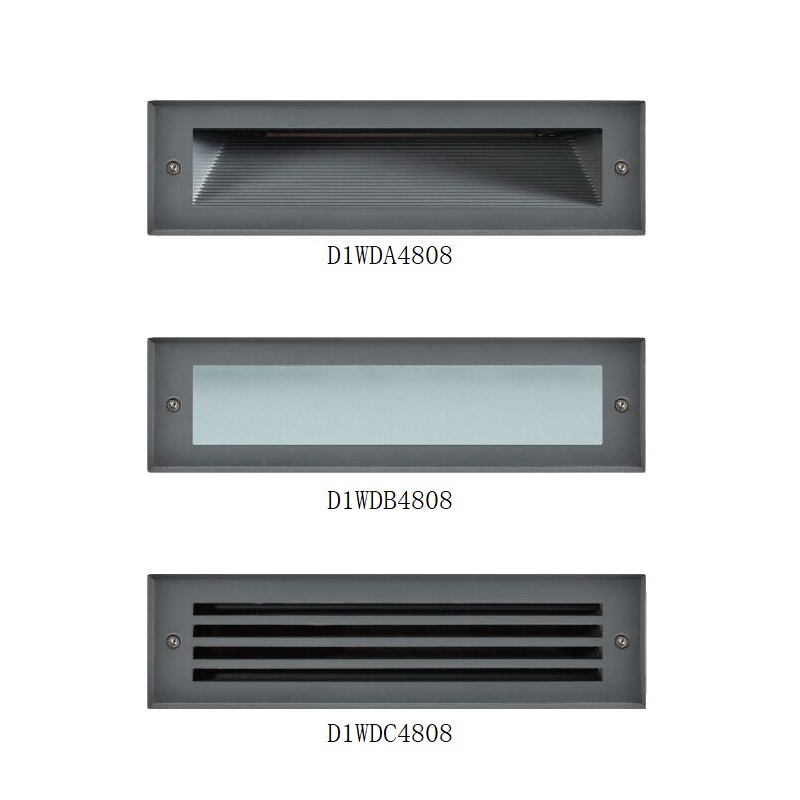

D1WDA4808
|
48×2835 SMD LED
(Single Color)
|
Ra>80
|
/
|
75×95°
|
220/240VAC
|
36
|
8
|
Cool white=366
Warm white=300
|
10
|
|
D1WDB4808 |
48×2835 SMD LED
(Single Color)
|
Ra>80 |
/ |
120° |
220/240VAC |
36 |
8 |
Cool white=621
Warm white=500
|
10 |
|

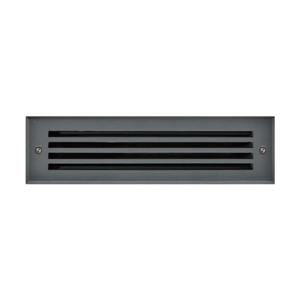

D1WDC4808 |
48×2835 SMD LED
(Single Color)
|
Ra>80 |
/ |
60×95° |
220/240VAC |
36 |
8 |
Cool white=287
Warm white=250
|
10 |
Notes:
1. Color: Mono (2000K,2400K,2700K, 3000K, 4000K, 6000K)
2. Specifications are subjected to change without notice.
