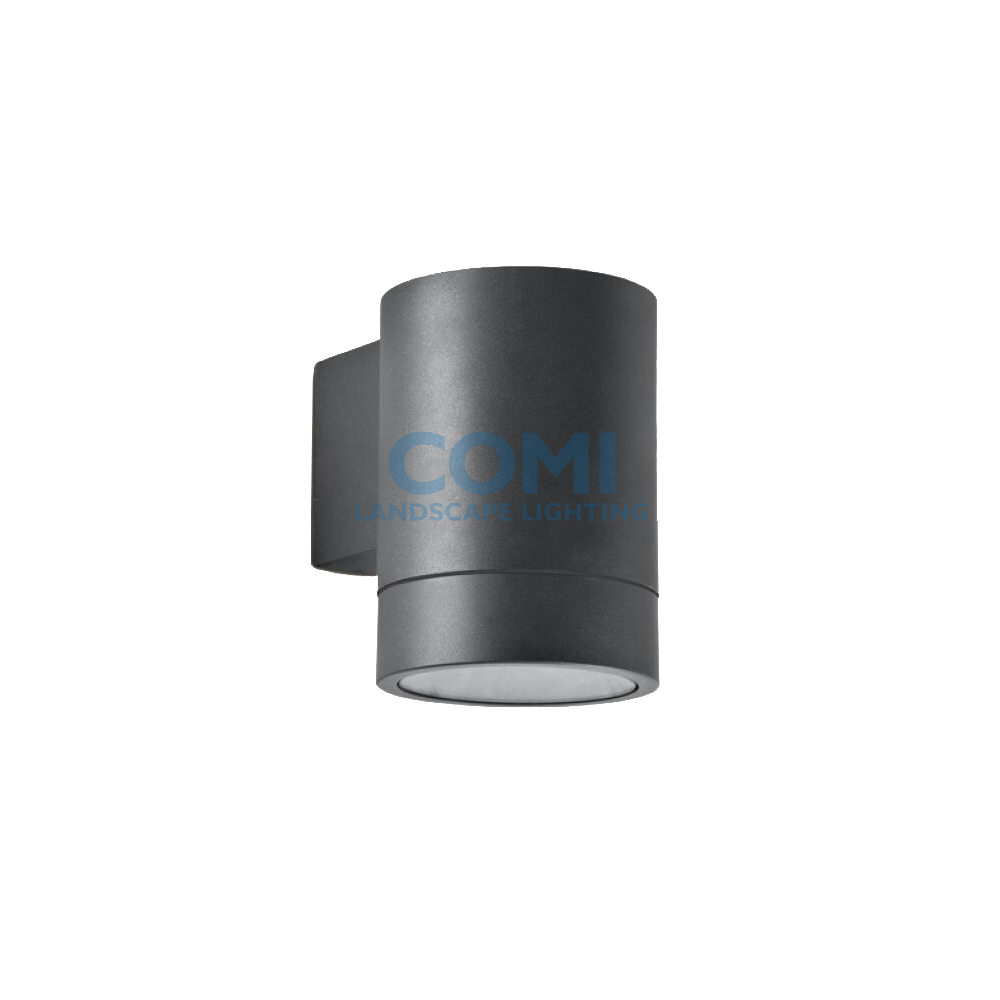

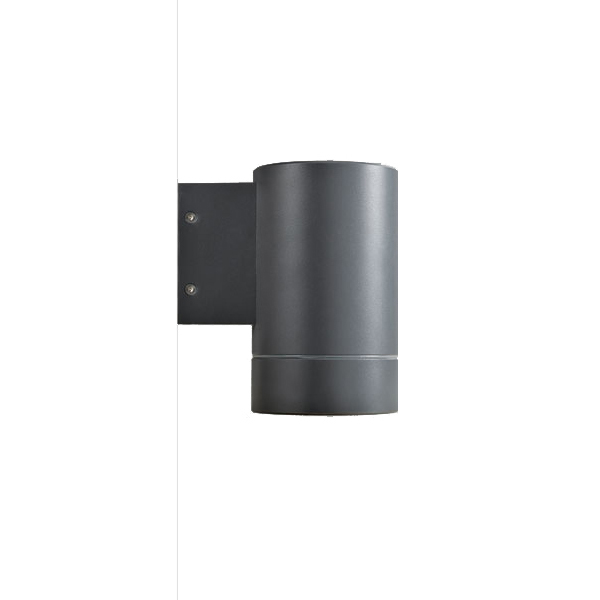

COMI Landscape Lighting 1WK-series is designed for wall surface mounted and offers various design possibilities in architectural illumination and provides even and pleasant light distribution suitable for villlas, parks, squares, garages and residential areas and etc.
Features and benefits:
▪ Wall Surface Mounted single side down or Up light.
▪ 1piece max 18W CREE chip.
▪ Color Temperature: 3000K, 4000K, 6000K.
▪ CRI: Ra>80.
▪ Input:110-240VAC
▪ Beam Angle: 20°, 38° (Full angle).
▪ Adjustability:Fixed.
▪ Average life time: 30000hurs@70% lumen depreciation.
▪ Finished: Sand grey electrostatic powder coating.
▪ Easy surface mounted and maintenance.
▪ Protection class:IP65.
▪ 2 Years warranty.
Material Specifications:
| Housing |
12 Die-casting grey powder coated aluminum. T=60-80μm. Adhesion of ISO class 1/ASTM class 4B |
| Front Cover |
12 Die-casting grey powder coated aluminum, T=20-30μm Adhesion of ISO class 1/ASTM class 4B |
|
Gasket |
Molding shaped silicone seal |
| Reflector |
Optical Reflector efficiency≥90% |
| LED | 1piece CREE COB LED |
| Gear |
Integrated Constant current LED Driver: 500mA, 36-40VDC |
|
Operating Temperature |
-20℃~45℃ |
Technical Specifications:
|
Item Number
|
Light Source
|
CRI(Ra)
(White color) |
Lens
|
Beam
Angle |
Input Voltage
(V) |
Typical Operating
Current(mA) |
Typical Power
Consumption(W) |
Typical
Luminance(lm) |
IK |
|
R1WKA0118
|
1× 18W CREE |
Ra>80
|
/
|
20°,38°
|
120/240
|
120V=164
240V=82 |
120V=18
240V=18 |
Cool white=1801
Warm white=1590 |
10
|
Notes:
1. CCT(K): 3000K, 4000K, 6000K.
2. Specifications are subjected to change without notice
