Single side LED landscape wall lamps are designed for wall surface mounted which are with up or down light output and offers various design possibilities in architectural and landscape illumination.
Features and benefits:
▪ Single side light output for down (or up) light output
▪ 2 different lamp size for different power.
▪ 1piece*7~12W, or 1piece*12~20W CREE COB LED.
▪ 110-240Vac,50/60Hz input.
▪ Typical power consumption:
(1)7W(1*7W), max 1*12W for R1YCB0110.
(2)12W(1*12W), max 1*20W for R1YCA0120.
▪ Light efficiency: 80-95LM/W
▪ CRI(Ra)>80 (for 2200-6500K only).
▪ Color: 2200-6500K.
▪ Die-casting aluminum housing, available in black, grey,or white color.
▪ Easy Vertical wall surface Mounted.
▪ IPclassification: IP65(for outdoor use).
▪ 2 Years warranty.
Technical Information:
|
Item Number
|
Dimensions(mm) |
Color
|
Beam Angle |
Light Source
|
Input Voltage
|
Typical Working |
Typical Power |
Typical Output |
IK Rate
|
|

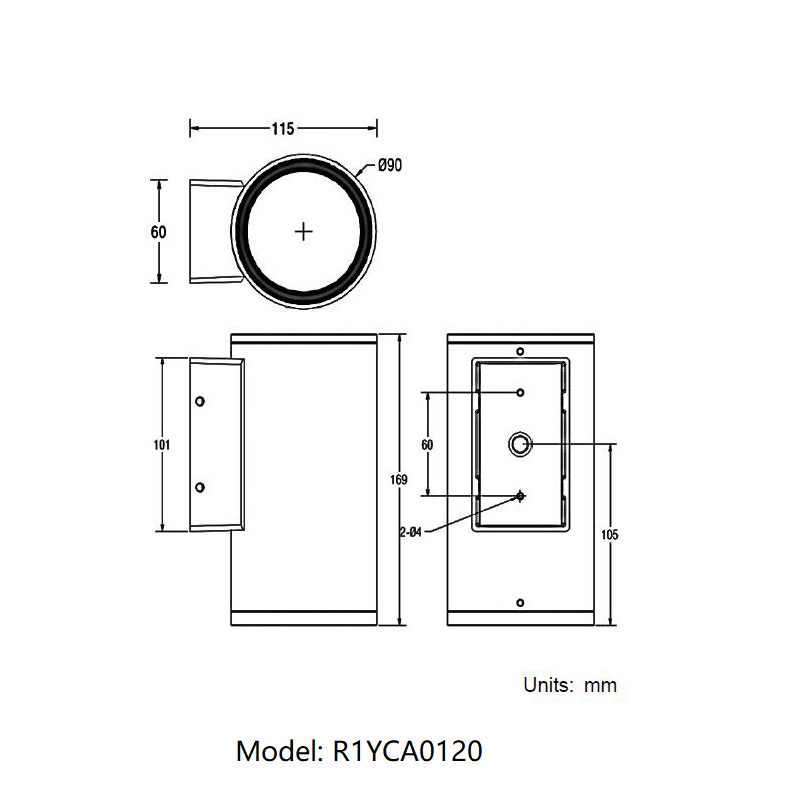

R1YCA0120
|
L169*Dia 90/W115 |
Single Color
|
12°, 22°, 26°,
45°,65°
|
1pc x (12~20W)
CREE COB LED
|
110-240VAC
|
110V=109 |
12W
(Max 20W)
|
1000lm@12W
|
10
|
|
R1YCB0110 |
L133*Dia 65/W88 |
Single Color |
25°, 36°,
50°,60°
|
1pc x (7~12W)
CREE COB LED
|
110-240VAC |
110V=64 240V=29 |
7W
(Max 12W) |
500lm@7W |
10 |
Note: Specification is subjected to change without prior to notice.
