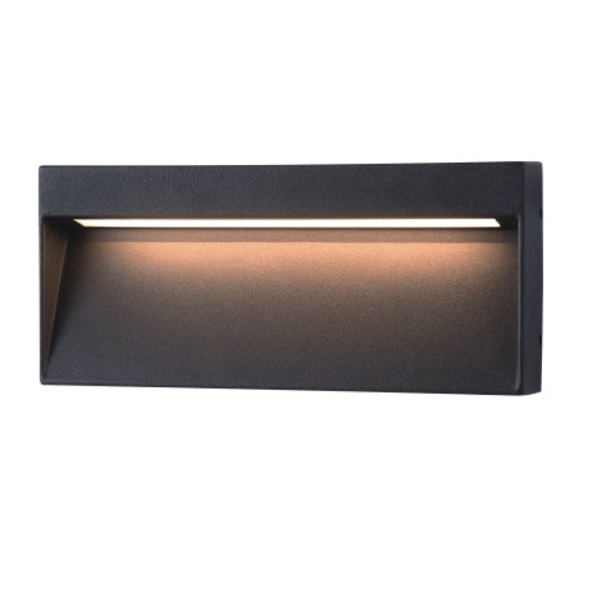

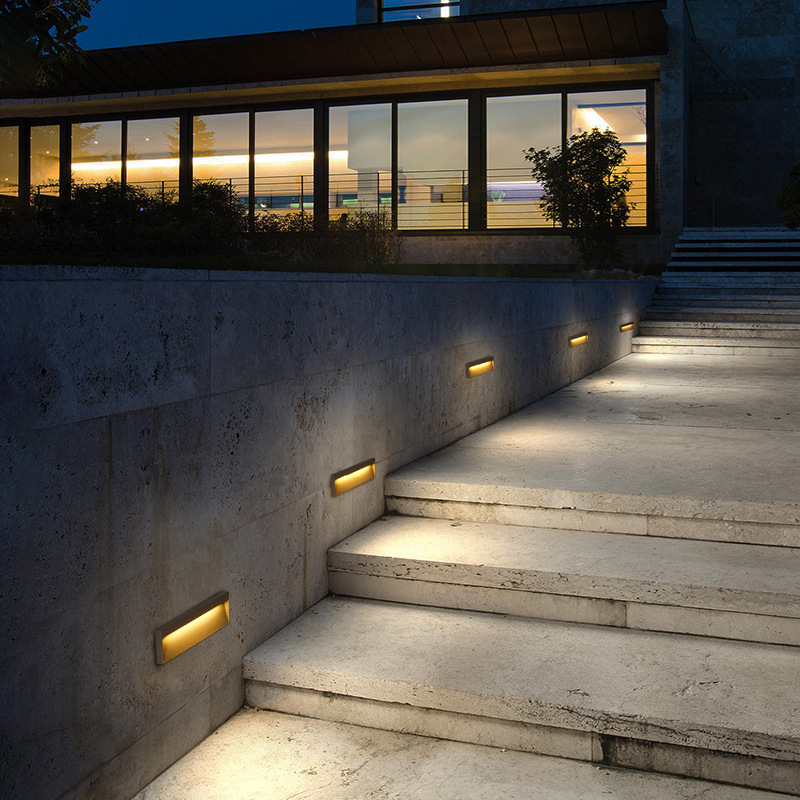

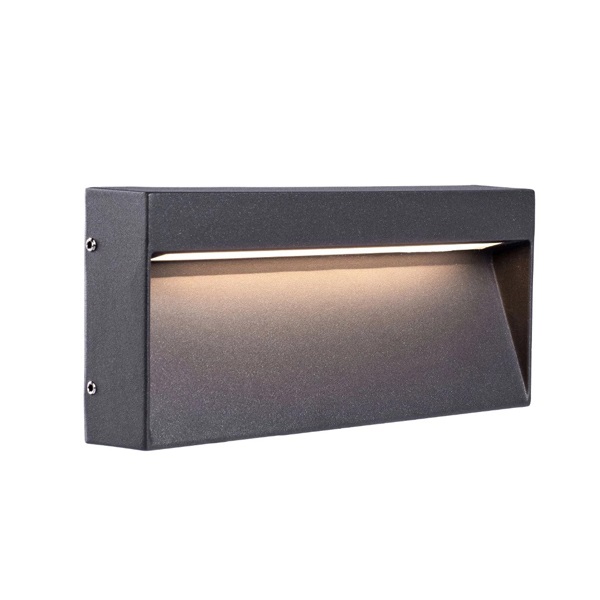

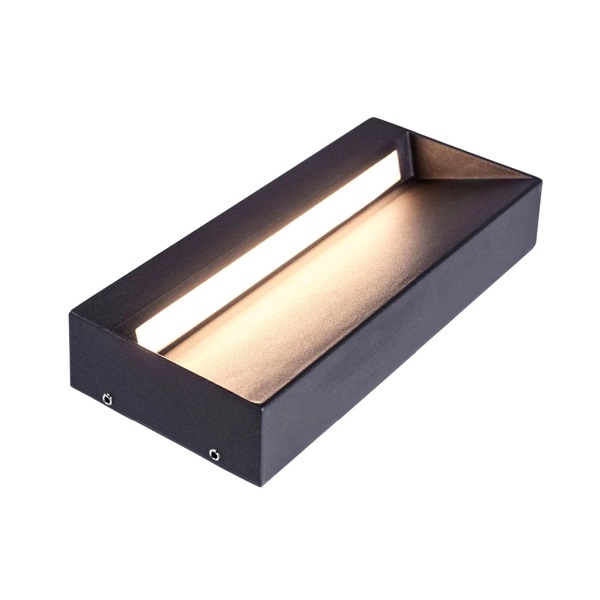

Wall surface Mounted Wall Light offers various design possibilities in architectural illumination and provides even and pleasant light distribution suitable for villlas, parks, squares, garages and residential areas and etc.
Features and benefits:
▪ Surface mounted LED wall light.
▪ Power consumption: 6W.
▪ 12pcs SMD 2835 LED.
▪ Luminous flux(LM): 480LM(@3000K) output.
▪ Color Temperature: 3000K, 4000K, 6000K.
▪ CRI: Ra>80 (CRI90+ available).
▪ Input: 220-240VAC, Integrated & Constant Current Waterproof Driver.
▪ Adjustability: Fixed.
▪ Average life time: 30000hurs@70% lumen depreciation.
▪ Finished: Optional Grey or black electrostatic powder coating.
▪ Materials: Aluminum alloy lamp housing.
▪ Easy wall surface wall mounted and maintenance.
▪ Protection class:IP65.
▪ Ambient Temperature: -20℃ ~ +45℃.
▪ 2 Years warranty.
Material Specifications for 6W IP65 Surface Mounted LED Wall Light:
|
Housing: |
12#Die-Casting grey or black powder coated aluminum. T=60-80μm Adhesion of ISO class 1/ASTM class 4B |
|
Finish: |
Options: grey, white, black |
|
Light Window: |
Frosted Temper glass |
|
Light source: |
OSRAM SMD 2835 LED |
|
Gear: |
Integrated constant current waterproof driver |
|
Installation: |
Fixed type, wall surface mounted |
Electrical Parameters for 6W Surface Mounted LED Wall Light:
|
Item Number |
Light Source |
Beam Angle |
CRI (Ra) |
Input Voltage |
Power (W) |
Luminous Flux(lm) |
IK Rate |
|
03VDR-112 |
12pcs×2835 SMD LED |
120×60° |
Ra≥80 |
220-240VAC, 50/60Hz |
6W |
480LM |
IK06 |
Notes:
1. Color temperature options: 2700K/3000K/4000K/5000K/6000K;
2. Color Rendering Index(CRI): Ra≥90 is available;
3. Customized made height is available upon request;
4. Specifications are subjected to change without notice.
