Features and Benefits:
▪ Model: CL-M687
▪ Technical information:
250V(9A)/450V(16A), PTI250, T85, IP68 at 5 bar
▪ Material Specification:
Housing: Nylon, PA66, UL94-V0
Sealing gasket: Silicon
Contact: Copper, Silver plated.
Color: Black
▪ Mechincal Specification:
Termination: Screw fixing
Wiring cable spec: Ø4-8mm, Ø8-12mm, Ø10-14mm
▪ Test Standard:
IEC60998-2-1:2004
IEC62444:2013
IEC60529:1991+A1:2000+A2:2013
▪ Warranty: 3 Years
▪ TUV CE, ROHS
Note:
Although the product is rated IP68 waterproof, it is NOT advised to use underwater.

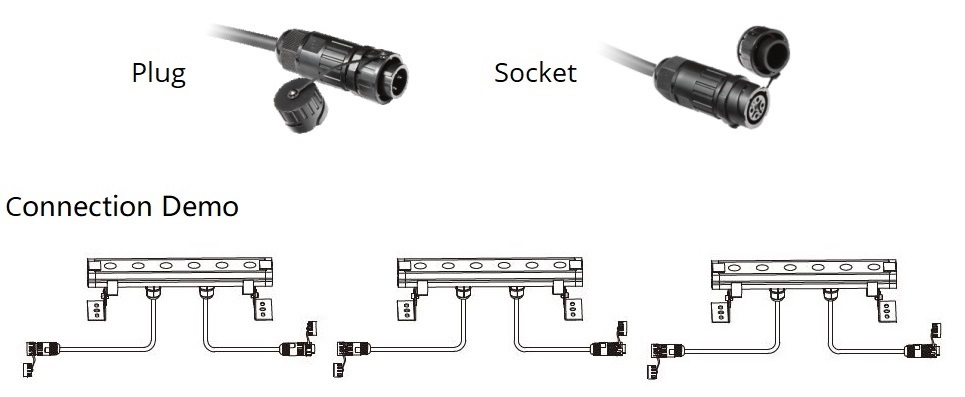

CL-M687 2/3/4/5/6Pin M20 Cable Glands Plug& Socket Waterproof Connector
▪ Model: CL-M687
▪ Technical information:
250V(9A)/450V(16A), PTI250, T85, IP68 at 5 bar
▪ Material Specification:
Housing: Nylon, PA66, UL94-V0
Sealing gasket: Silicon
Contact: Copper, Silver plated.
Color: Black
▪ Mechincal Specification:
Termination: Screw fixing
Wiring cable spec: Ø4-8mm, Ø8-12mm, Ø10-14mm
▪ Test Standard:
IEC60998-2-1:2004
IEC62444:2013
IEC60529:1991+A1:2000+A2:2013
▪ Warranty: 3 Years
▪ TUV CE, ROHS
Note:
Although the product is rated IP68 waterproof, it is NOT advised to use underwater.
