COMI Lighting Limited

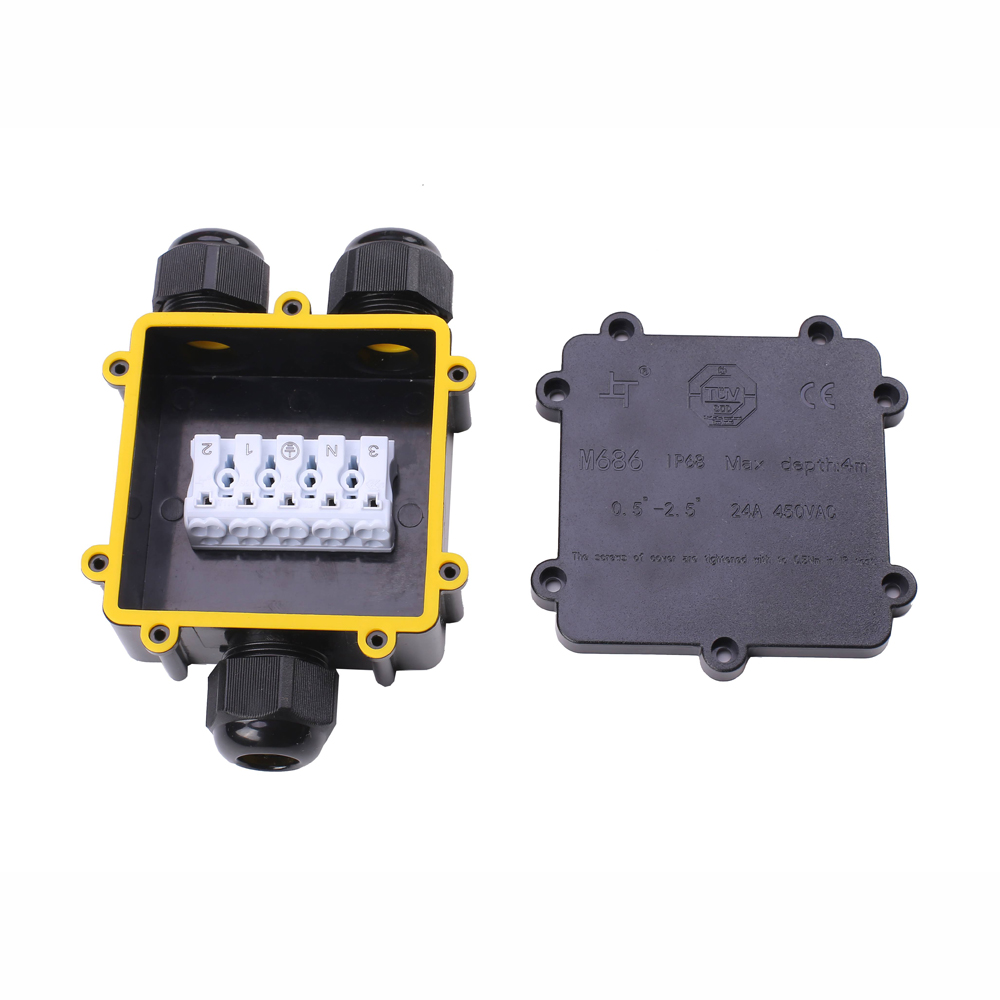

CL-M686-Y 3 Ways Distribution Waterproof Junction Box

Features and Benefits:

▪ Test Standard:

   IEC60998-2-1:2004
   IEC62444:2013
   IEC60529:1991+A1:2000+A2:2013

Technical information:
   250V(10A)/450V(24A), PTI 250, T85, IP68 at 5 bar

▪ Material Specification:
  Housing: PC-94-2 Grade
  Sealing gasket: Silicon
  Contact: Copper, nickel plated.
  Color: Black

▪ Mechincal Specification:
  Termination: Screw fixing
  Wiring cable spec: Ø4-8mm/Ø8-12mm/Ø10-14mm

▪ Working Temperature: T100

▪ Warranty: 3 Years
▪ TUV CE, ROHS
