Features and Benefits:
▪ High luminous flux and maximum visual comfort for lighting tasks in the outdoor area.
▪ With optional extensive mounting accessories:
(1) Mounting plate(round base); (2) spike; (3)tree strap; (4)U-shape bracket;
(5)pole arm mounting part; (6)Pole mounting hoop, (7)pole mounting screws fixed part.
▪ Various lens types and angles for options for different light distributions:
(1) 2.6°, 3.5°, 5°, 6°,8°,12°, 15°, 20°, 30°, 45°, 60°,15×60°,5×20°,10×70° and etc.
(2) Light distributions: narrow spot, spot, flood, wide flood, or wall wash.
▪ Light Source: CREE or Osram high power LED or COB LED.
▪ Color: 2700-6500K, RGB,RGBW and etc.
▪ High light efficiency(white): 85~110LM/W.
▪ Optional Control support: ON/OFF, 0-10V or DALI Dimming, DMX512.
▪ Degree scale hinge for precisely aligned and adjustable.
▪ 90° tilt, 300° rotation; or 120° tilt, 360° rotation.
▪ Luminaire with visor for anti-glare.
▪ Optional Honeycomb louver and other lighting accessories for anti-glare light output.
▪ Double powder-coated Corrosion-resistant Die-casting aluminum housing.
▪ Finished color: RAL9023 Pearl dark grey.
▪ IP rate: IP66 rated for outdoor use.
▪ Ambient Temperature: -25℃∽+50℃
▪ 3- or 5-years warranty.

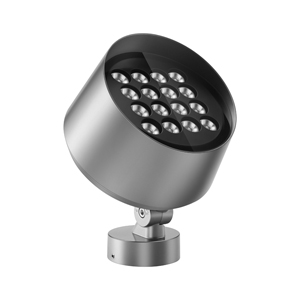

Compact and simple in appearance, but powerful and versatile in core, the Anole-X provides glare-free accent lighting, spot lighting, flood lighting, wallwashing in the outdoor lighting area.Unique appearance design, round face without screws; die casting aluminum body coated with double AkzoNobel corrosion-resistance Fluorocarbon spraying enables Anole-X a 10-years weather resistance. Integrated hood, and diverse Light control accessories provide anti-glare effects and ensure accent lighting. Same light head can be c/w optional different brackets or holders, enrich the application to facade lighting, tree lighting and street lighting. Maintenance-Free LED opto-electronics design help to reduce the operating costs.
Precise light distribution by independent lens development, from very narrow 2.6deg to extra wide 60deg, oval flood lens, and wall washing lens available. High-power or COB LED chips and various light control solutions make the Anole-X create impressive lighting effects. IP66 designed makes Anole-X is Ideal for both indoor and outdoor illuminating different kinds of buildings, street light, landscape and objects on accent lighting, architectural lighting, landscape lighting and garden lighting and etc.
Technical Parameters for IP66 Outdoor Architectural or Landscape Flood Lights:
| Item Number |
Optional
Control Methods
|
Light Source | Light Color | Optional Lens Degree (Θ1/2)(°) |
Optional Input
Voltage
|
Rated
Power
(W)
|
Luminous Flux
(LM)
|
IK
Rate
|
| B3AXD0405-X |
ON/OFF, DALI,
0-10V, DMX512
|
4pcs×5W
CREE XP-L LED
|
Single Color |
2.6°,3.5°,6°,
12°, 20°, 30°,
45°, 60°
10×70°, 5×20°
|
100-264VAC,
50/60Hz
|
20W |
Cool White=2100LM
Warm White=1880LM
|
08 |
| B3AXD0404-X |
ON/OFF, DALI,
0-10V, DMX512
|
4pcs×4W
CREE XP-G3 LED
|
Single Color |
2.6°,3.5°,6°,
12°, 20°, 30°,
45°, 60°
10×70°, 5×20°
|
100-264VAC,
50/60Hz
|
15W
|
Cool White=1424LM
Warm White=1285LM
|
08 |
| B3AXD0420-X | DMX512 /RDM |
4pcs×6W
CREE RGBW 4-in-1 LED
|
RGBW 4-in-1 Full Color |
15°, 20°, 30°,
15×60°
|
36VDC, or 100-264VAC,
50/60Hz
|
20W | 910LM | 08 |
1. Colors or CCT (K) available: Very warm white(2200K), Warm White(2700-3000K)/ Neutral White(4000-4500K)/Cool White(6000-6500K)/Red /Blue /Green/RGB/RGBW and others.
2. DMX512, DALI,0/1-10V dimming or controllable support upon request;
3. Specifications are subjected to change without notice.
Please view the video display in this link >> Portable and beam direction adjustable Ground Flood Light
Optional Accessories:
Note:
Standard products are NOT included these accessories: honeycomb louver, reeded glass(also named as stripe glass, or honeycomb glass), round-meshed grille. Please inform us if you need these optional accessories for the product in your order.
Lighting Effect and Demo:
| Light Type |
Projectors
Very narrow to wide beam, rotationally
|
Floodlights
Very wide rotationally symmetrical or
|
Lens wall washers
Asymmetrical light distribution for
|
| Light Tool |
 |
 |
|
The above is only simple description of lighting effect, For more detail introduction and light effect of narrow spot, flood and wall washing of our Anole-X series products, please go to this link in our website>> IP66 LED Projectors, Floodlights and Wall washers for Accent lighting, Architectural Lighting, Landscape lighting and Garden lighting
