The COMI Landscape Lighting's free bending structure designed flexible LED wall washing light with optical lens perfectly fit the outdoor curved surface of various arcs to achieve the effect of wall washing.
Features and Benefits:
▪ Cross sectional dimensions (W*H): 26.5mm*20.5mm.
▪ Free bending in both horizontal and vertical 360 degree directions.
▪ High brightness up to 2000LM/meter and light efficiency up to 83LM/W.
▪ Various color for options: single color, tunable white, RGB, RGBW.
▪ DMX512 pixel addressable&programmable 4pixels/meter is available.
▪ Safe low voltage 24VDC input.
▪ Power: 24W/m (single color or tunable white) or 18W/m (RGB or RGBW).
▪ Light source: SMD2835/5050 LED, 24pcs/meter.
▪ Various beam angle for different applications:
(1) Single color, tunable white, RGB: 15°, 30°, 50°, 20×35°, 18×20°, 20×55°;
(2) RGBW: 35°, 30°x45°.
▪ Bending diameter: min. Ø400mm in both vertical&horizontable direction.
▪ Max continous run length: 5meters/roll.
▪ Min. cutting unit: 250mm(6LEDs).
▪ Mounting ways: Surface mounted on ground, wall or ceiling;
▪ Mounting accessories: mounted by clips, bracket, mounting profile.
▪ Power cable entry way: Bottom entry cable connector.
▪ Materials: optical grade environmental protection silicone.
▪ Salt resistance, acid and alkali corrosion resistance, flame retardant, UV resistance;
▪ Extrusion molding process, IP65 and IK08 protection class.
▪ Ambient temerature: -25°C ~+50°C.
▪ Certificates: CE, RoHS.
▪ Warranty:3 years.
Technical Parameters of Flexible LED Wall Washing Lights:
Item Number |
Working
Mode
|
Light Color
or CCT(K)
|
Pixel
Number
(pixels/meter)
(IC Type)
|
Light Source |
Input
Voltage
|
Power
(W/M)
|
Optional
Beam Angle
|
Luminous
Flux
(LM/Meter)±8%
|
Min Cutting
Unit (mm)
|
IP&IK
Rate
|
Max Lenth
Per Piece
|
B6WL2620-XX | ON/OFF |
Single
Color
|
/ |
24pcs×2835
SMD LED
|
24VDC | 24W/M |
15°,
30°,
50°, 20×35°,
18×20°,
20×55°
|
1580LM
(3000K)
2000LM(4000K)
1800LM(6000K)
|
250mm
(6LEDs)
|
IP65,
IK08
|
5Meters |
B6WL2620-TW | ON/OFF |
Tunable
White
(2700K+6500K)
|
/ |
24pcs×2835
SMD LED
|
24VDC | 24W/M |
15°,
30°,
50°, 20×35°,
18×20°,
20×55°
|
1600LM
(@3000K)
|
250mm
(6LEDs)
|
IP65,
IK08
|
5Meters |
B6WL2620-RGB | PWM |
RGB
Full Color
|
/ | 24pcs×SMD 5050 RGB 3-in-1 LED | 24VDC | 18W/M |
15°,
30°,
50°, 20×35°,
18×20°,
20×55°
|
515LM |
250mm
(6LEDs)
|
IP65,
IK08
|
5Meters |
B6WL2620-RGBW | PWM |
RGBW
Full Color
|
/ |
24pcs×SMD5050 RGBW
4-in-1 LED
|
24VDC | 18W/M | 35°, 30°x45° | 850LM |
250mm
(6LEDs)
|
IP65,
IK08
|
5Meters |
B6WL2620-RGB-DMX | DMX512 |
RGB
Full Color
|
4Pixels/M
(IC Type: SM18522PH)
|
24pcs×SMD 5050 RGB 3-in-1 LED | 24VDC | 18W/M |
15°,
30°,
50°, 20×35°,
18×20°,
20×55°
|
515LM |
250mm
(6LEDs)
|
IP65,
IK08
|
5Meters |
B6WL2620-RGBW-DMX | DMX512 |
RGBW
Full Color
|
4Pixels/M
(IC Type: SM18522PH)
|
24pcs×SMD 5050 RGBW
4-in-1 LED
|
24VDC | 18W/M | 35°, 30°x45° | 850LM |
250mm
(6LEDs)
|
IP65,
IK08
|
5Meters |
Notes:
1. Light color or CCT(K) available:
(1) single color: 2700K, 3000K, 3300K, 4000K, 5000K, 6000K,6500K, red, blue, green and others.
(2) Tunable white (also named as adjustable color temperature): 2700K+6500K.
(3) RGB 3-in-1 full color.
(4) RGBW 4-in-1 full color.
2. The 360degree free bending flexible LED Linear wall washing lights above are working with DALI/ 0-10V/ PWM/ DMX512 dimming driver (please order dimming driver separately).
3. Specifications are subjected to change without notice.
Dimensional Drawing of 360 Degree Bending 3D Optic LED Wall Washing Light (Units:mm):

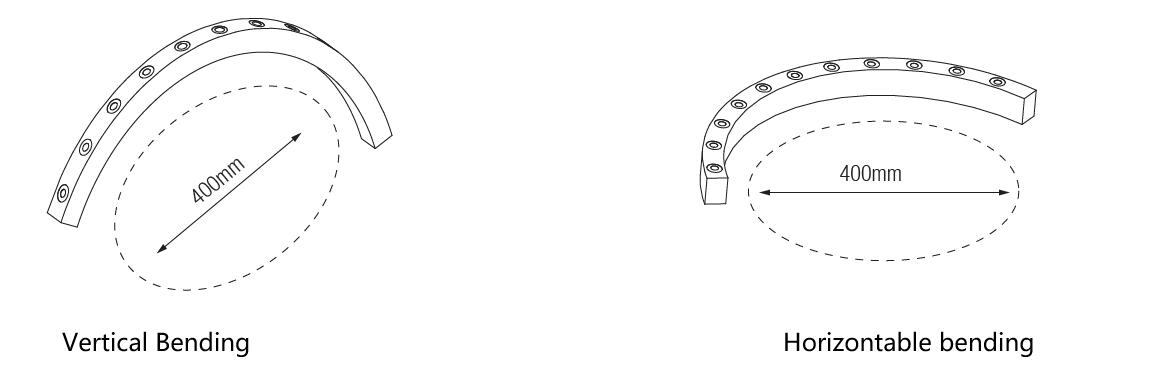

Bending Direction and Min Bending Diameter of Free Bending LED Wall Washing Light:
Mounting Accessories:
Mounting Clip
Mounting Bracket
Mounting Aluminum Profile:
