Horizontal and Vertical Direction Bendable Neon LED Wall Washer

SFW20 Series is a flexible LED wall washer and feature of being flexibly bent in both horizontal and vertical directions.Provides single color, tunable white and RGBW SPI (pixel addressable) for options. It is well designed and structured with built-in optical lens which is with different lighting beam angle for options. With the cross section of 18x18mm and IP68 rated design which enables SFW20 be widely used for various both indoor and outdoor lighting applications, especially in lighting on the curved wall and pillars.

Features and Benefits:
▪ Mini size with cross section of 18x18mm;

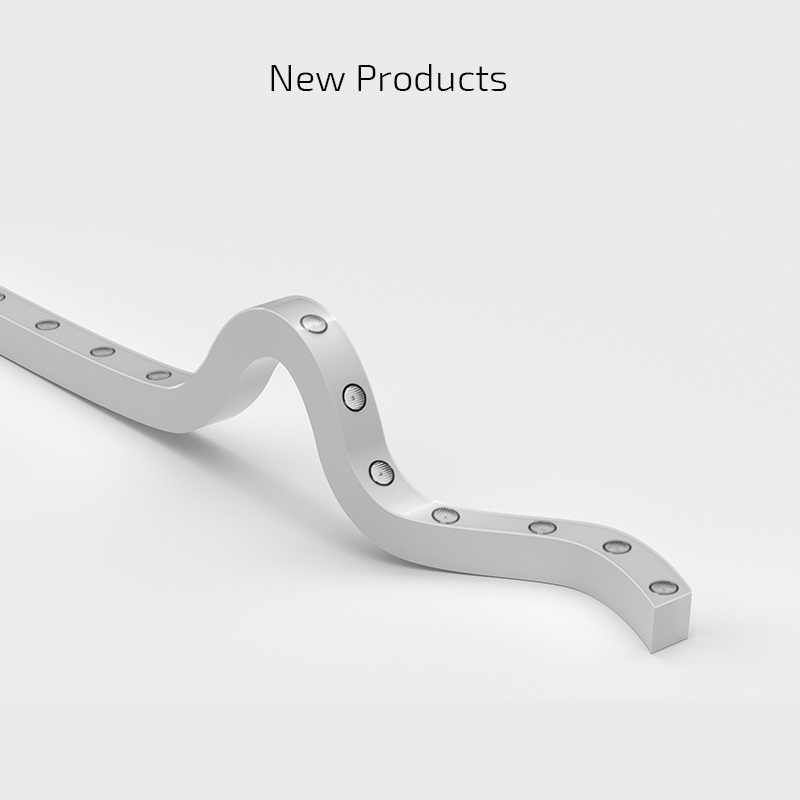

▪ Can be flexibly bent in both horizontal and vertical directions.
▪ Built-in optical lens with different beam angle:
   15°, 20°, 25°,38°, 60°, 20°x 40°.
▪ Light source:CREE or LEDil SMD3535 LED, 24pcs/Meter.
▪ Operation voltage: low voltage 24VDC.
▪ Power consumption: 18W/Meter(Mono), 19W/meter(Tunable White), 23W/meter (RGBW SPI).
▪ Light color:
(1) Single color: 2200K, 2700k, 3000K, 4000K, 5000K, 5700K, Red, Blue, Green.
(2) Tunable white:2700K+6000K.
(3) RGBW ( Control by SPI) (W available at 2700K/3000K/4000K/5000K) for options)

▪ Min cutting unit:25cm (6LEDs).
▪ Max length per piece:
  (1) Single end power feed: 5meters(16.4');
  (2) Double ends power feed: 10meters(32.8').

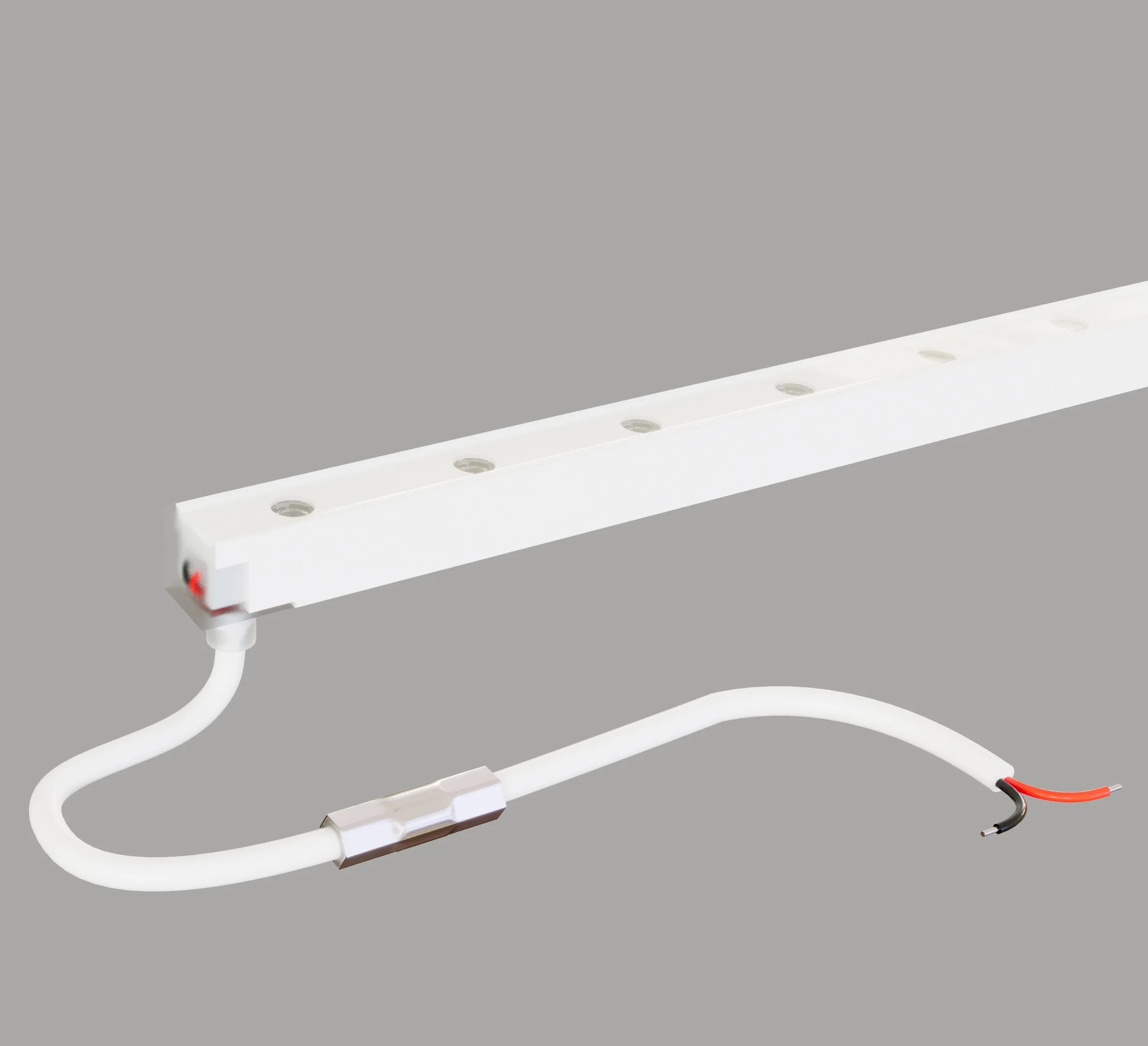

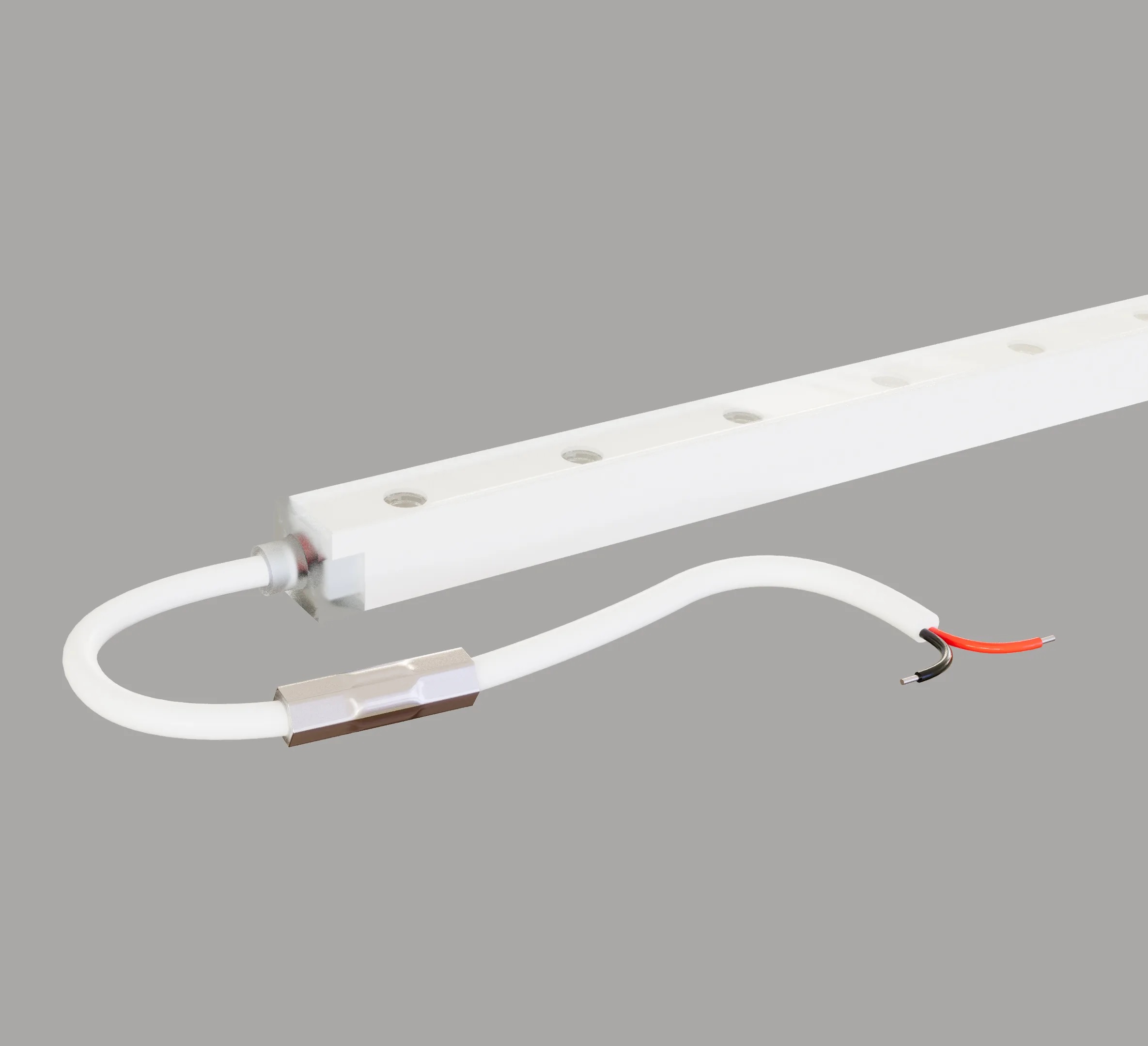

▪ Entry cable connector type: (1) Direct End entry cable connector; (2) bottom entry cable connector.
▪ Housing material: environmental friendly silicone.
▪ IP rated: IP68.
▪ 3 years or 5 years warranty.
▪ CE, RoHS compliance.

features of Mono Color Silicone Flexible LED Wall Grazer IP68 waterproof

Technical Parameters for IP68 Horizontal & Vertical Single Color, tunable white, or SPI Pixel RGBW Silicone Flexible LED Wall Grazer:

Item Number

SFW20-24V-3535-24-XX
 (Note: XX stands for different CCT or color)

SFW20-24V-3535-24-TW

SFW20-24V-3535-24-RGBW-SPI
(RGBW SPI  addressable 4pixels/meter)

Cross Sectional Diemsion 18x18mm 18x18mm
18x18mm
Light Color or CCT(K) 2200K, 2700K, 3000K, 4000K, 5000K, 5700K, Red, Blue, Green
Tunable White(2700K+6000K)
RGBW(W=2700K/3000K/4000K/5000K)
Pixel Quantity / / 4Pixels/meter
Control Method ON/OFF, PWM, DALI/0-10V/TRIAC/DMX512 dimming ON/OFF, PWM, DALI/0-10V/TRIAC/DMX512 dimming
SPI
Max Length per piece

5 meters (single end power feed) ,
10meters (Dual ends power feed)

5 meters (single end power feed) ,
10meters (Dual ends power feed)
5 meters
Input voltage 24VDC 24VDC
24VDC
Power(W/meter) 16W/Meter (max 18W/meter) 19W/meter 23W/meter
Luminous Flux(LM/M) 700LM~900LM per Meter 700LM~900LM per Meter
510LM/meter  (24.5W/meter)
Light Source CREE or LEDil 3535 SMD LED, 24LEDs/meter CREE or LEDil 3535 SMD LED, 24LEDs/meter
CREE or LEDil 3535 SMD LED, 24LEDs/meter
CRI(Ra) Ra>80 (for 2200-6000K only) Ra>80 (for 2200-6000K only)
/
Optional Beam Angle 15°, 20°, 25°,38°, 60°, 20°x 40°(standard).
15°, 20°, 25°,38°, 60°, 20°x 40°(standard).
15°, 20°, 25°,38°, 60°, 20°x 40°(standard).
Min Cutting Unit 25cm(6LEDs) 25cm(6LEDs)
25cm(6LEDs)
Min Bending Diameter 250mm, Can be Horizontal & Vertical Bending Direction 250mm, Can be Horizontal & Vertical Bending Direction
250mm, Can be Horizontal & Vertical Bending Direction
Connector Cable Entry Type Direct End entry cable connector or Bottom Entry cable connector Direct End entry cable connector or Bottom Entry cable connector
Direct End entry cable connector or Bottom Entry cable connector
Housing Material Silicone Silicone
Silicone
Mounting Way Mounted by Aluminum profile or bracket Mounted by Aluminum profile or bracket
Mounted by Aluminum profile or bracket
IP Class IP68 IP68 IP68
IK Rate IK08 IK08 IK08
Storage Temperature 0°C to 50°C
0°C to 50°C
0°C to 50°C
Operating Temperature -40°C to +55°C
-40°C to +55°C
-40°C to +55°C
Certificate CE, RoHS CE, RoHS
CE, RoHS
Warranty 3Years (standard) or 5 years 3Years (standard) or 5 years
3Years (standard) or 5 years
Note: Specifications are subjected to be changed without notice





Dimension and Bending of IP68 Mono Color Silicone Flexible LED Wall Grazer:


Bending Direction and bending diameter of ip68 single color flexible LED Wall wahser with optical lens





Light Distribution Curve of IP68 Single Color Silicone Flexible LED Wall Washer with Optical Lens:


light distribution for optical lens flexible LED WALL WASHER
