IP67 Flexible LED Wall Grazer 24W for Outdoor Linear lighting

The COMI Landscape Lighting's free bending structure designed flexible LED wall washing light with optical lens perfectly fit the outdoor curved surface of various arcs to achieve the effect of wall washing.

Features and Benefits:
▪ Cross sectional dimensions (W*H): 30mm*24mm.
▪ Free bending in both horizontal and vertical 360 degree directions.
▪ High brightness up to 2570LM/meter and light efficiency up to 110LM/W.
▪ CCT(K): 2700~6500K
▪ Safe low voltage 24VDC input.
▪ Power: 24W/m (single color).
▪ Light source: Cree or Osram SMD3535 LED, 24pcs/meter.
▪ Optional beam angle: 10°, 20°, 25°, 35°, 50°
▪ Bending diameter: min. Ø400mm in both vertical&horizontable direction.
▪ Max continous run length: 4meters/roll.
▪ Mounting accessories for options:
  (1) Flexible mounting channel with light barrier and brackets;
  (2) Flexible mounting channel for surface mounting fixed by screws
▪ Mounting ways: Surface mounted on ground, wall or ceiling;
▪ Power cable entry way: Bottom entry cable connector.
▪ Materials: optical grade environmental protection silicone.
▪ Salt resistance, acid and alkali corrosion resistance, flame retardant, UV resistance;
▪ Extrusion molding process, IP67 and IK08 protection class.
▪ Ambient temerature: -45°C ~+45°C.
▪ Certificates: CE, RoHS.
▪ Warranty:3 years.

Technical Parameters of IP67 Flexible LED Wall Grazer (Length=1000MM)

Item No. CCT(K) Light Source
Input
Voltage
Power
(W)
Beam Angle
Luminous Flux
(LM/meter)
IP
Rate
Working Temperature
FP3024 2700K, 3000K, 4000K, 5000K, 6000K, 6500K 24pcsx 1 W CREE 3535 LED, CRI 90+ 24VDC 24W 10°, 20°, 25°, 35°, 50°
Cool White=2590LM
Cool White=2150LM
IP67 -40~+45
Note:The length of flexible LED wall washer available in 1000mm, 2000mm, 3000mm, 4000mm max.

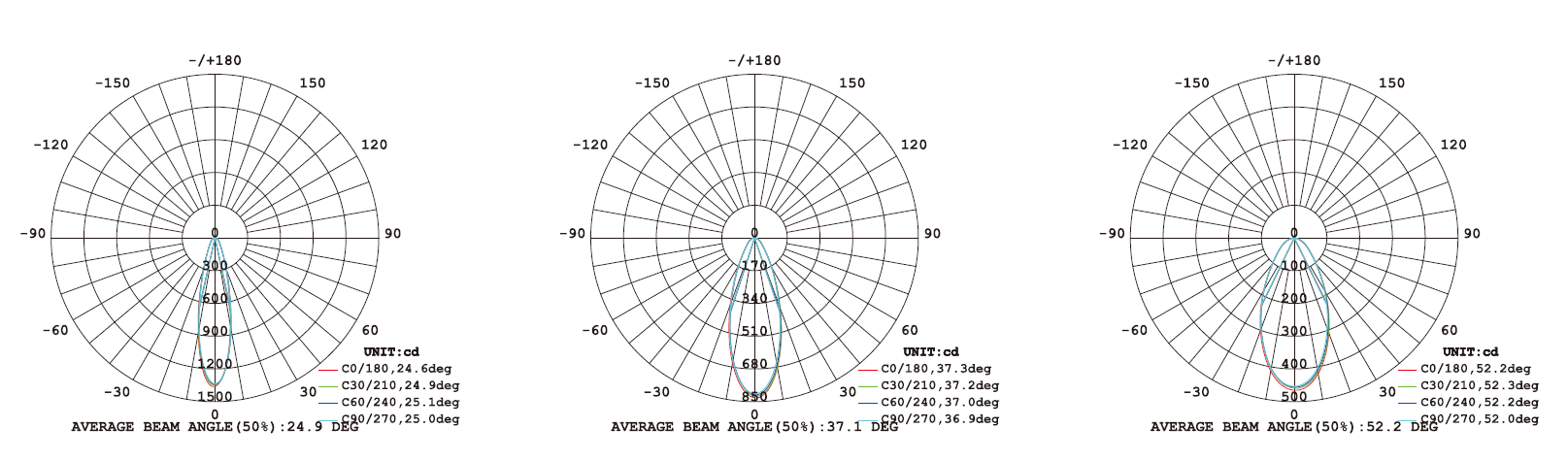

light distribution of IP67 flexible LED wall washer

WIRING DIAGRAM FOR FLEXIBLE LED WALL GRAZER
