COMI Lighting Limited

LED Landscape Lights 3x4W 0-10V DALI dimming DMX512 Control

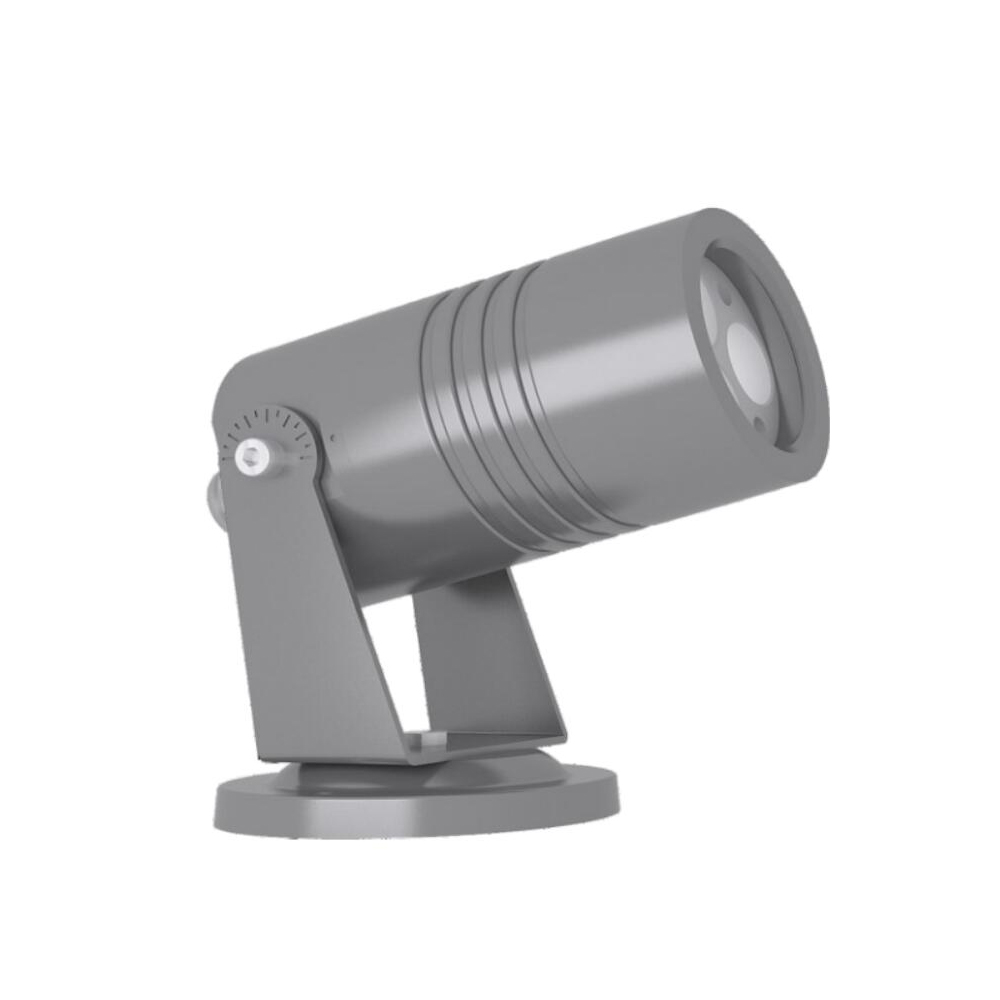

The COMI SPOT LIGHT IP66 B3C-Series is suitable for emphasis lighting indoors as well as outdoors. Combined with a round base, or ground spike, or tree light mounting straps, or glare shield, it is also perfect for plant and garden lighting.

Features and Benefits:
▪ Light source:1x10W CREE COB LED, or 3x3W or 3x4W LED
▪ Power: 12W(Mono), 9.6W(RGB 3-in-1), 12.5W (RGBW 4-in-1).
▪ Input voltage: 24VDC or 110-240Vac.
▪ Color: Mono color, RGB, RGBW.
▪  Beam angle: 8°, 10°, 15°, 30°,45°, 60°.
▪  Materials: Aluminum alloy
▪ Project angle Up to down adjustable and horizontal 360° rotatable.
▪ Installation by Round base.
  Optional accessory: Ground spike(PVC), tree strap, glare shield(visor).
▪ Optional housing color: Black,anodized aluminum, matt silver, copper.
▪ Optional DALI, 1-10 V, PWM, TRIAC or DMX 512 controllable support.
▪ IP66 and IK04 rating.
▪ 2 Years warranty.

IP66 LED Landscape Spotlight with Base,Spike,Visor, or tree light mounting straps


Technical Specifications of LED Landscape Spotlights:

Item Number Light Source Color
Lens Degree
(Θ1/2)(°)
CRI
(Ra)
Input Voltage(V)
Typical Operating
(mA)
Typical Power
(W)
Luminance
(lm)
IK
Rate
Optional Mounting
Accessories
B3CX0305
3×4W
CREE or OSRAM LED
Single
Color
8°,15°, 25°, 40°, 60° Ra>80
24VDC
110-120V
220-240V
24V=525mA
110V=115mA
240V=53mA
12.6W 882 04
Round Base,
Spike,
Tree Strap
B3CX0110
1×11W
CREE COB LED
Single
Color
15°,25°,
40°, 56°,
10x60°,
20x30°
Ra>80
24VDC
110-120V
220-240V
24V=520mA
110V=111mA
240V=51mA
12.2W 892 04
Round Base,
Spike,
Tree Strap
B3CX0318
3×3W
RGB 3-in-1 full color LED
RGB
Color
13°,25°,
40°, 60°
/ 12/24VDC
766mA
(12VDC)
9.2W 184 04
Round Base,
Spike,
Tree Strap
B3CX0320
3×4W
RGBW 4-in-1 full color LED
RGBW
Color
13°,25°,
40°, 60°
/ 12/24VDC
508mA
(24VDC)
12.2W 366 04
Round Base,
Spike,
Tree Strap
Notes:

1. "X" in item number stands for mounting accessories for IP66 outdoor led flood spot lights:

X Mounting Accessories Mounting Method
M Round base Surface mount on ground, wall, or ceiling
B Spike Ground
T Tree Strap Tree mounted by strap

2. Color: Single color 2000,2400K, 2700K, 3000K, 4000K,6000K, Red, Blue, Gree, RGB, RGBW
3. Specifications are subjected to change without notice.


Finished Body color options for IP65 / IP66 LED Garden Spotlights

Body color available: black, dark grey, silver, white,copper and etc.

Finished Body color options for IP65 IP66 LED garden spotlights.jpg
