The COMI SPOT LIGHT IP66 B3D-Series is suitable for emphasis lighting indoors as well as outdoors. Combined with a round base, or ground spike, or tree light mounting straps, or glare shield, it is also perfect for plant and garden lighting.
Features and Benefits:
▪ Light source:1x20W CREE COB LED, or 4x3W or 4x4W LED
▪ Power: 16W(Mono), 12W(RGB 3-in-1), 16W (RGBW 4-in-1).
▪ Input voltage: 24VDC or 110-240Vac.
▪ Color: Mono color, RGB, RGBW.
▪ Beam angle: 8°, 10°, 15°, 30°,45°, 60°.
▪ Materials: Aluminum alloy.
▪ Body finished color for options: dark grey, black, silver, white and etc.
▪ Project angle Up to down adjustable and horizontal 360° rotatable.

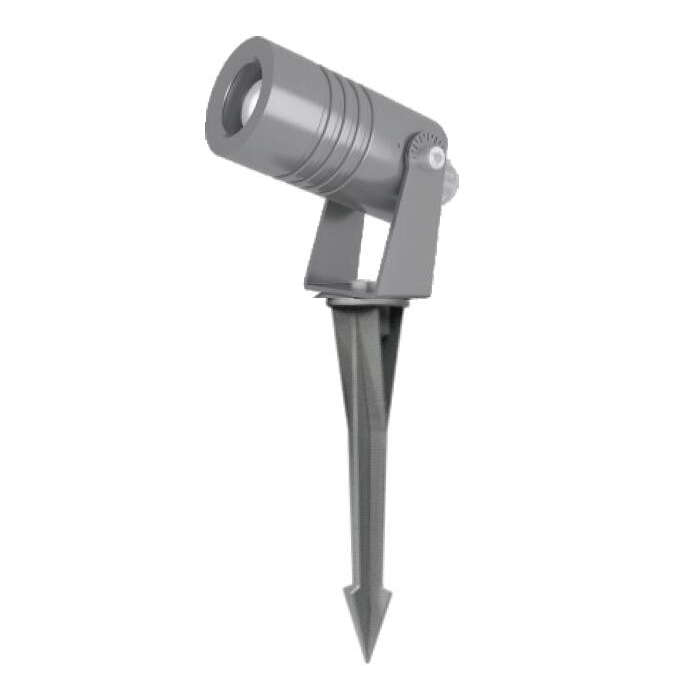

▪ Installation by spike.

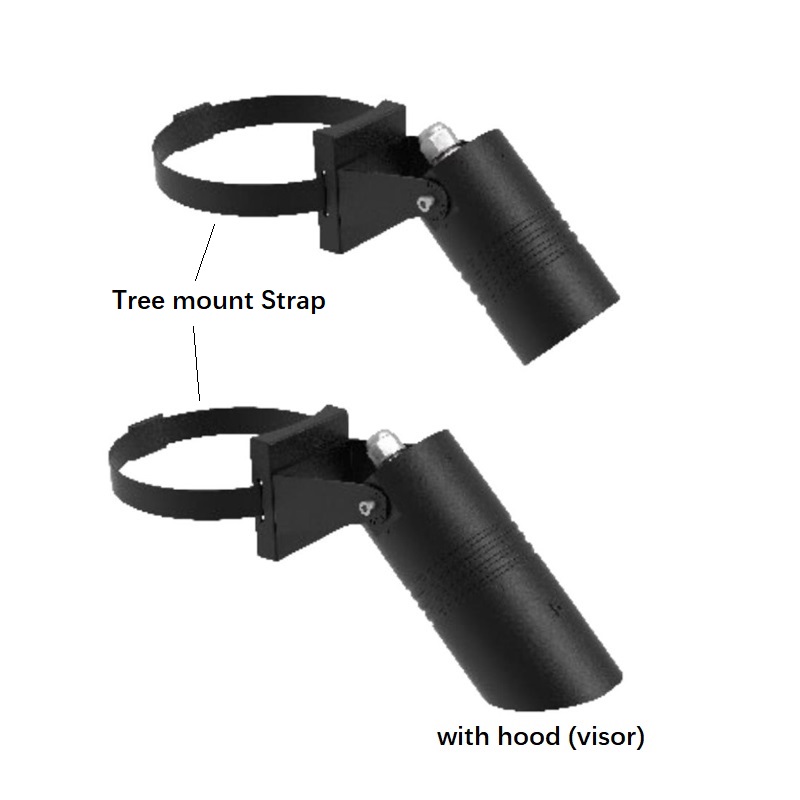

Optional accessory: round base, tree strap, glare shield(visor).
▪ Optional housing color: Black,anodized aluminum, matt silver, copper.
▪ Optional DALI, 1-10 V, PWM, TRIAC or DMX 512 controllable support.
▪ IP66 and IK04 rating.
▪ 2 Years warranty.
IP66 LED Landscape Spotlight with Base,Spike,Visor, or tree light mounting straps
Technical Specifications of LED Landscape Spotlights:
| Item Number | Light Source | Color |
Lens Degree
(Θ1/2)(°)
|
CRI
(Ra)
|
Input Voltage(V)
|
Typical Operating
(mA)
|
Typical Power
(W)
|
Luminance
(lm)
|
IK
Rate
|
Optional Mounting
Accessories
|
| B3DX0405 |
4×4W
CREE or OSRAM LED
|
Single
Color
|
8°,15°, 25°, 40°, 60° | Ra>80 |
24VDC
110-120V
220-240V
|
24V=525mA
110V=115mA
240V=53mA
|
15W | 1123 | 04 |
Round Base,
Spike,
Tree Strap
|
| B3DX0120 |
1×20W
CREE COB LED
|
Single
Color
|
15°,25°,
40°, 56°,
10x60°,
20x30°
|
Ra>80 |
24VDC
110-120V
220-240V
|
24V=520mA
110V=111mA
240V=51mA
|
16W (max 20W) |
1160 | 04 |
Round Base,
Spike,
Tree Strap
|
| B3DX0418 |
4×3W
RGB 3-in-1 full color LED
|
RGB
Color
|
13°,25°,
40°, 60°
|
/ | 12/24VDC |
766mA
(12VDC)
|
12W | 222 | 04 |
Round Base,
Spike,
Tree Strap
|
| B3DX0420 |
4×4W
RGBW 4-in-1 full color LED
|
RGBW
Color
|
13°,25°,
40°, 60°
|
/ | 12/24VDC |
508mA
(24VDC)
|
16W | 480 | 04 |
Round Base,
Spike,
Tree Strap
|
Notes:
1. "X" in item number stands for mounting accessories for IP66 outdoor led flood spot lights:
| X | Mounting Accessories | Mounting Method |
| M | Round base | Surface mount on ground, wall, or ceiling |
| B | Spike | Ground |
| T | Tree Strap | Tree mounted by strap |
2. Color: Single color 2000,2400K, 2700K, 3000K, 4000K,6000K, Red, Blue, Gree, RGB, RGBW
3. Specifications are subjected to change without notice.
Finished Body color options for IP65 / IP66 LED Garden Spotlights
Body color available: black, dark grey, silver, white,copper and etc.
