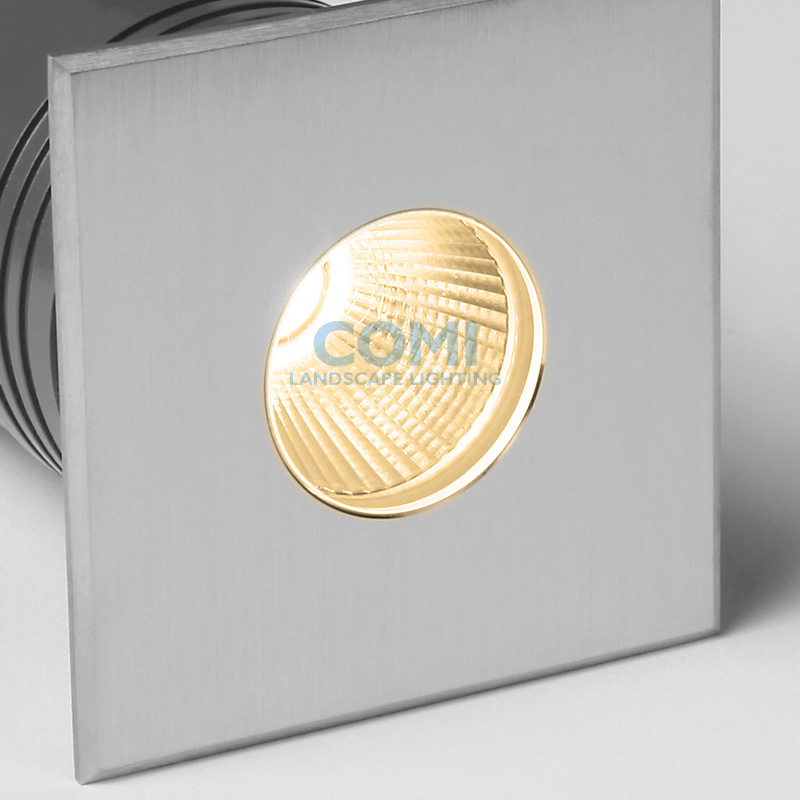

The COMI LANDSCAPE LIGHITNG R2I-series COB inground light is designed for floor integration and offers various design possibilities in architectural illumination.
Features and Benefits:
▪ 1piece 5W COB or 3W RGB or 6W RGBW LED.
▪ Input voltage 24VDC and 110~240VAC for options.
▪ Symmetrical light output.
▪ SUS 316 stainless steel square front ring and aluminum lamp body.
▪ Full area glass pressure capacity more than 780KGs.
▪ Basic is Non-dimmable by PWM, 0/1-10V .
(Optional PWM, 0/1-10V, DALI dimmable support).

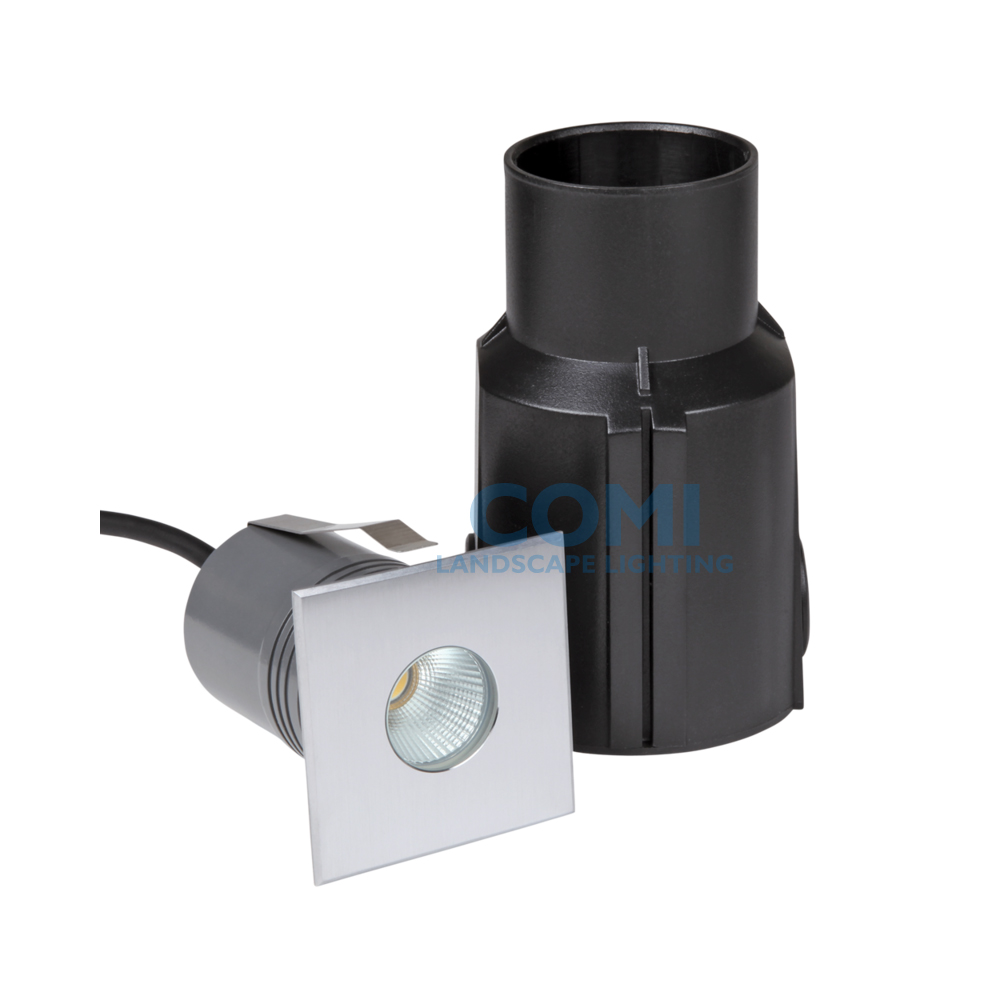

▪ Easy install by plastic sleeve(included) or clip.
▪ IP classification IP67 for outdoor use.
▪ 2 Years warranty.
Material Specifications
| Housing |
12# Die-casting grey powder coated aluminum. T=60-80μm Adhesion of ISO class 1/ASTM class 4B |
| Front Cover |
Stainless steel SUS 316# |
| Light Window Glass |
Step tempered glass.T=7mm |
| LED |
Multi chip on board LED (Single color), RGB 3-in-1 or RGBW 4-in-1 |
| Cable Gland | IP-68 PG-9 PVC |
| Glass pressure capacity |
Full area=783kgs |
| Gasket |
Molding shaped silicone seal |
| Reflector | Optical Reflector efficiency≥90% |
| Operating Temperature |
-20˚C~40˚C |
| Electrical Connection |
▪ 1x cable 0.5meters H05RN-F 2X1.0mm² to open wires (low voltage) ▪ 1x cable 0.5meters H05RN-F 3X0.75mm² to open wires(high voltage) ▪ 1x cable 0.5meters H05RN-F 4X0.75mm² to open wires(for RGB) |
| Dimmable Support | PWM, 0/1-10V, DALI Optional. |
| Mounting Sleeve(Included) | Black plastic |
Technical Specificaitons
|
Item Number
|
Light Source
|
CRI(Ra)
(White color) |
Lens
|
Selected Lens
Degree (Θ1/2) |
Input Voltage
(V) |
Typical Operating
Current(mA) |
Typical Power
Consumption(W) |
Typical
Luminance(lm) |
IK |
|
R2IS0125
|
1×5W CREE |
Ra>80
|
R7
|
24°
|
24VDC
120/240 |
24V=230
120V=50 240V=25 |
24V=5.5
120V=5.6 240V=5.6 |
Cool white=335
Warm white=294 |
08
|
|
B2IS0118
|
1×3W 3-IN-1
RGB Full Color |
/
|
B34D
|
30°
|
24VDC
|
133
|
3.2
|
68
|
08
|
|
B2IS0122
|
1×6W 6W RGBW 4-IN-1 Full Color |
Ra>80 |
B33 | 30° |
24VDC |
284
|
6.8
|
198 |
08 |
Notes:
1. Color: Mono (2000K,2400K,2700K, 3000K, 4000K, 6000K, Red,Green, Blue and etc.) , RGB and RGBW,
2. Specifications are subjected to change without notice.
