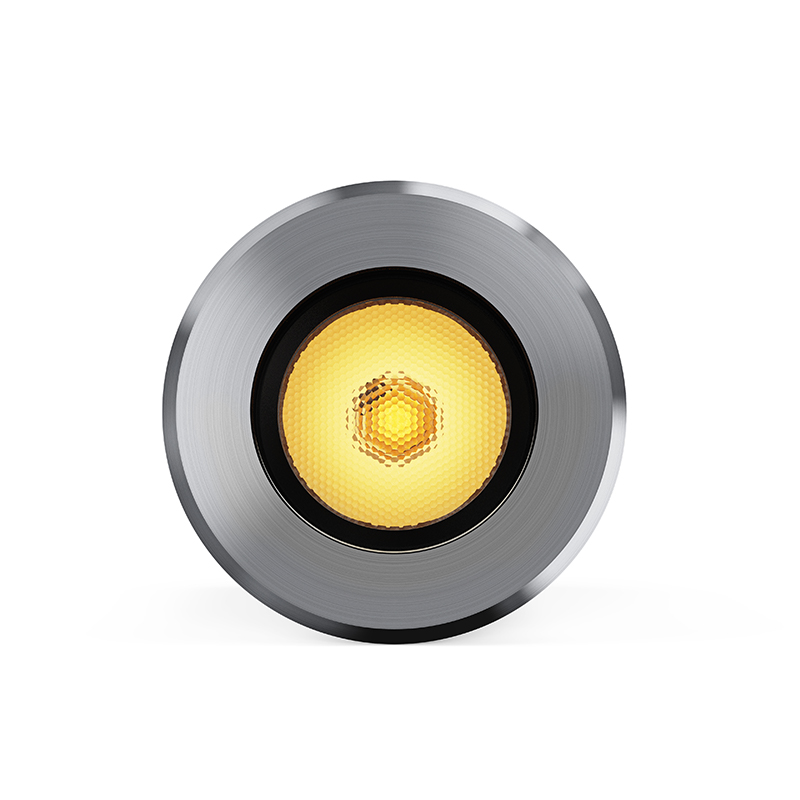

6W LED Underground Up Light Mounted by O-Ring or Spring

The COMI LANDSCAPE LIGHITNG  inground uplighter is designed for ground or floor integration and offers various design possibilities in architectural illumination.

Features and Benefits:
• Dimension: Dia.60xH84mm.
• Front cover: Round cover (Optional square cover).
• Light Source:1piece 6W CREE COB LED single color LED.
• Input voltage: 24VDC, 110-120VAC, 220-240VAC
• Light color or CCT(K): Single color, RGB, RGBW and etc.
• Light Efficiency: 60~85LM/W (Vary from different CCK, lens angle, CRI and etc.).
• CRI: Standard CRI80+, Optional CRI70+, CRI90+.
• Output Light type: Symmetrical light output.
• Materials: SUS 316 stainless steel front ring and Die-casting aluminum housing.
• Optional accessory:Honeycomb louver, used for anti-glare light.
• Dimming and control methods:
   (1) Basic ON/OFF and Non-dimmable.
   (2) Optional dimming with remote 0/1-10V, DALI,DMX dimming driver support.
• Installation: Easy recessed installation by rubber O-ring or stainless steel spring.
• Mounting accessory: aluminum mounting sleeve (included)
• IP rate: IP67 waterproof for outdoor use.
• IK rate: IK08.
• Warranty: 2 Years warranty.
• Certificates:CE, RoHS
..

ce rohs dimming rgb single color inground light

Material Specifications:

Housing 12 Die-casting black powder coated aluminum .
T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
Front Ring Stainless Steel SUS316#
Lens Optical lens, efficiency85%
Light Window Step temper glass. T=7MM
Glass pressure capacity Fulll area=1106 KGs
LED Osram, CREE LED
Driver Integral driver with constant current output
Gasket Molding shaped silicone seal
Operating temperature -20~+40
Power Cable 0.5m H05RN-F 2×1.0 mm² (24VDC, single color)
0.5m H05RN-F 3×0.75 mm² (110-240VAC)
0.5m H05RN-F 4×0.75 mm² (24VDC, RGB)
0.5m H05RN-F 2×1.0+5×0.5 mm² (24VDC, RGBW)
Mounting part Rubber O-ring, or stainless steel spring piece
Mounting Sleeve Aluminum alloy



Technical Parameters of IP67 Outdoor LED Underground Up Lights:

Item Number Light Color Light Source
Beam
Angle
Input
Voltage
Typical
Power
Typical Luminance
(LM)±5%
IK
Rate
B2QCR0106
Single
Color
1x6W
Cree COB
LED, CRI 80+
15°, 25°,
 40°, 60°
12/24VDC
120/240VAC
6.3W
Cool White=455
Warm White=385
08
B2QCR0118
RGB
Full Color
1x3W RGB
3-IN-1 LED
15°, 25°,
 40°, 60°
24VDC 3.2W 68 08
B2QCR0120
RGBW
Full Color
1x4W RGBW
4-IN-1 LED
15°, 25°,
 40°, 60°
24VDC 4.2W 147 08
Notes:
1. Single color:  2700K, 3000K, 4000K, 6000K, 6500K,and others; RGBW :W=3000K, 4000K, 6000K.
2. Specification is subjected to change without notice.
