The COMI LANDSCAPE LIGHITNG D2YB-series inground light is designed for wall recessed, floor integration and offers various design possibilities in architectural illumination.
Features and Benefits:
▪ With Soft light distribution creates comfortable environment.

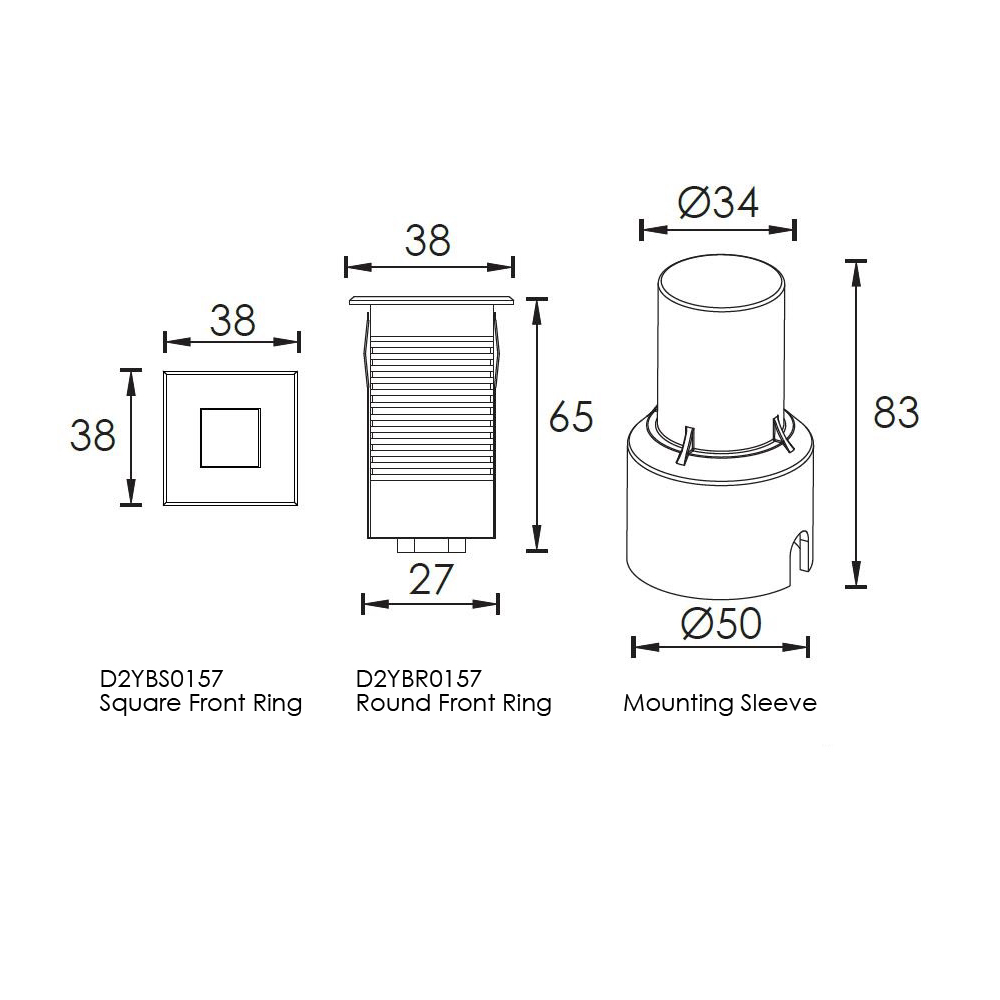

▪ Mini size lamp body L38xW38xH65mm.
▪ 1x2W Osram or 3W RGB 3-in-1 LED.
▪ Input voltage 12/24VDC or 110/240VAC.
▪ SUS 316 stainless steel front ring and aluminum lamp body.
▪ Full area glass pressure capacity more than 250KGs.
▪ Basic is Non-dimmable by PWM, 0/1-10V .
(Optional PWM, 0/1-10V, DALI dimmable support).

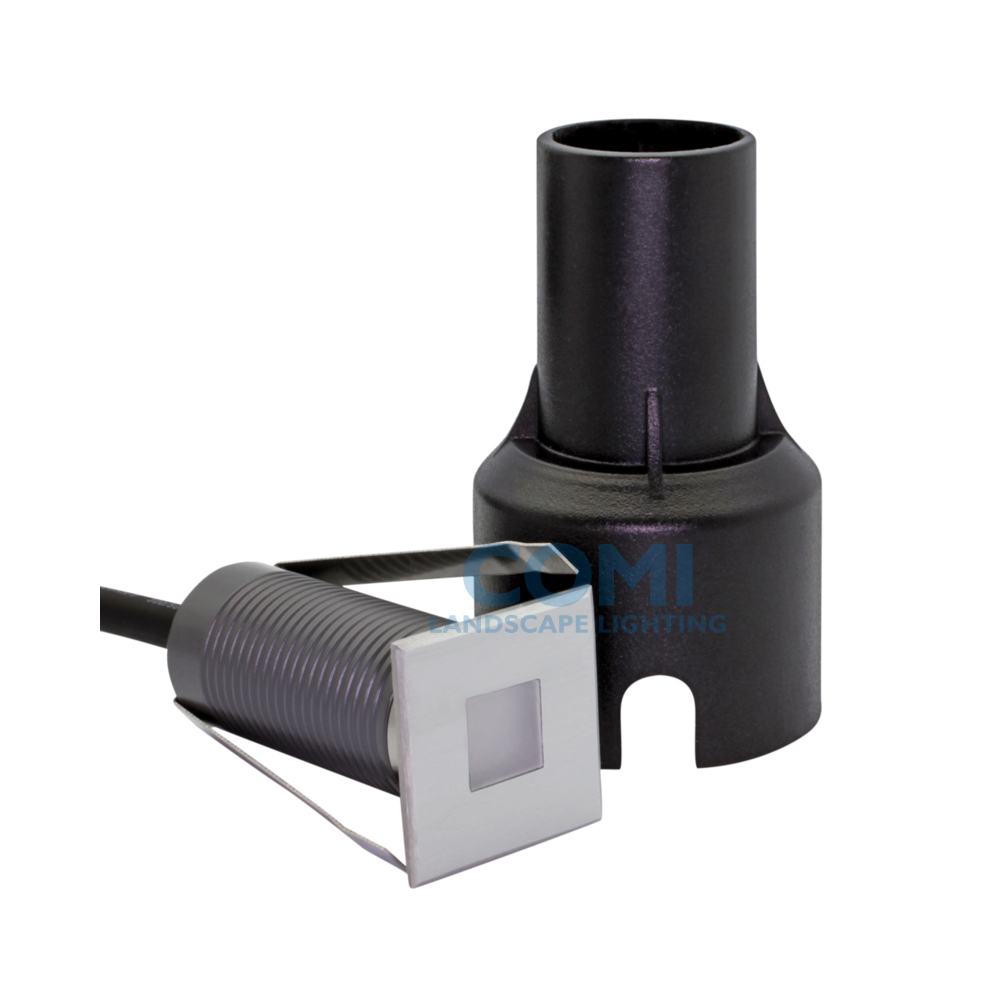

▪ Easy install by plastic sleeve(incl.) or clip.
▪ IP classification IP67 for outdoor use.
▪ 2 Years warranty.
Material specifications
|
Housing |
12# Die-casting grey powder coated aluminum. T=60-80μm Adhesion of ISO class 1/ASTM class 4B |
|
Front Cover |
Stainless steel SUS 316# |
|
Light Window Glass |
Frosted step tempered glass.T=5mm |
|
Glass Pressure Capacity |
Full area=254kgs |
|
Operating Temperature |
-20˚C~40˚C |
|
Power Cable |
▪ 1x cable 0.5meters H05RN-F 2X1.0mm² to open wires (Low voltage) ▪ 1x cable 0.5meters H05RN-F 3X0.75mm² to open wires(High voltage) ▪ 1x cable 0.5meters H05RN-F 4X0.75mm² to open wires(for RGB) |
|
Mounting sleeve(Included) |
PVC |
Technical Parameters:
|
Item Number
|
Light source
|
Lens Degree
Selected (Θ1/2) |
Input Voltage
(V) |
Typical Operating
Current(mA) |
Typical Power
Consumption(W) |
Typical
Luminance (lm) |
IK Rating
|
|
D2YS0157
|
1x2W
Osram
|
120
|
24VDC
120/240
|
24V=110
120V=48
240V=28
|
24V=2.6
120V=3.0
240V=3.1
|
Cool white =31
Warm white=25
|
08
|
|
D2YS0157
|
1X3W
RGB 3-in-1
Full Color
|
120
|
24VDC
|
R=38
G=53
B=56
|
3.5
|
16
|
08
|
Note: Specification is subjected to change without notice.
