Curved-shaped IP67 LED Inground Lights 24VDC 220V 6x3W or 9x3W

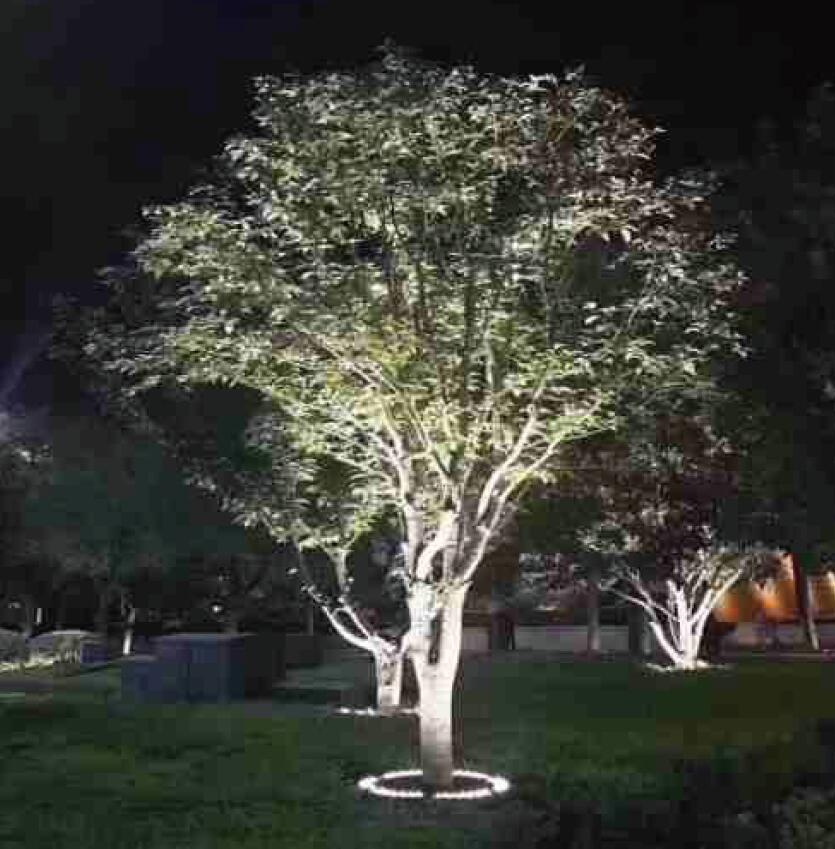

The COMI LANDSCAPE LIGHTING'S symetrical (B2FL) and asymmetrical (C2FL series) curved-type INGROUND LIGHTs are designed for inground integration and offers various design possibilities in architectural illumination, espcially for recessed mounting inground lights to surround round cylindrical pillar, or encircle tree or small flower nursery or parterre.

Features and benefits:
▪ Curved-shape or circular shaped designed for encircling lighting for tree or round pillar.
▪ Symmetrical light and asymmetrical light (35°|45°) for options.
▪ 6pcs or 9pcs 2W Osram LED/3W RGB LED.
▪ 24VDC, or 110-120Vac, or 220-240Vac 50/60Hz input.
▪ CRI(Ra)>80 (for 2200-6500K only).
▪ Color: 2200-6500K, Red,Green,Blue,Yellow and RGB.
▪ SUS316 stainless steel front cover and aluminum housing.
▪ Standard is non-dimmable by PWM, DALI, 0/1-10V.
  Optional dimmable DALI, 0/1-10V support.
▪ Easy Vertical wall recessed install by mounting sleeve.
▪ Black back Plastic mounting sleeve included.
▪ IPclassification: IP67.
▪ 2 Years warranty.

Material Specifications

Housing 12# Die-casting grey powder coated aluminum.
T=60-80μm Adhesion of ISO class 1/ASTM class 4B
Front Cover SUS 316 Stainless steel
Light Window Glass Step tempered glass.T=8mm
Cable Gland
IP-68 PG-9 PVC
Gasket
Tooling shaped seal
Driver Constant current output
Operating Temperature
-20˚C~40˚C
Power Cable ▪ 1x cable 0.5meters H05RN-F 2X1.0mm² to open wires (Low voltage)
▪ 1x cable 0.5meters H05RN-F 3X0.75mm² to open wires(High voltage)
▪ 1x cable 0.5meters H05RN-F 4X0.75mm² to open wires(for RGB)
Mounting sleeve(Included)
PVC
Dimmable Support
TRIAC(High Voltage), Optional:DALI/ 0~10V/ PWM(Low voltage).



Technical Specifications

Item Number
Length
Light Source
CRI
Lens Degree
(Θ1/2)
Input voltage
(V)
Typical Operating
Current(mA)
Typical Power
Consumption(w)
Typical
Luminance (lm)
IK
Rating
B2FR0657
373mm
6×2W
Osram

Ra>80
30°
24VDC
120/240
24V=437
120V=107
240V=55
24V=10.5
120V=11.8
240V=12.1
Cool white=871
Warm white=566
09
B2FR0618
373mm
6×3W
RGB 3in1
Full color
/
30°
24VDC
R=200
G=250
B=250
17
262
09
B2FR0957
428mm
9×2W
Osram

Ra>80
30°
24VDC
120/240
24V=670
120V=164
240V=82
24V=16.2
120V=18
240V=18
Cool white=875
Warm white=570
09
B2FR0918
428mm
9×3W
RGB 3in1
Full color
/
30°
24VDC
R=270
G=400
B=400
27
268
09

Notes:
1. Color: Mono (2000K,2400K,2700K, 3000K, 4000K, 6000K, Red,Green, Blue and etc.) , RGB.
2. The above items are with symmetrical light output, for asymmetrical light output types or frosted glass with soft light output type, please inquire separately.
3. Specifications are subjected to change without notice.
