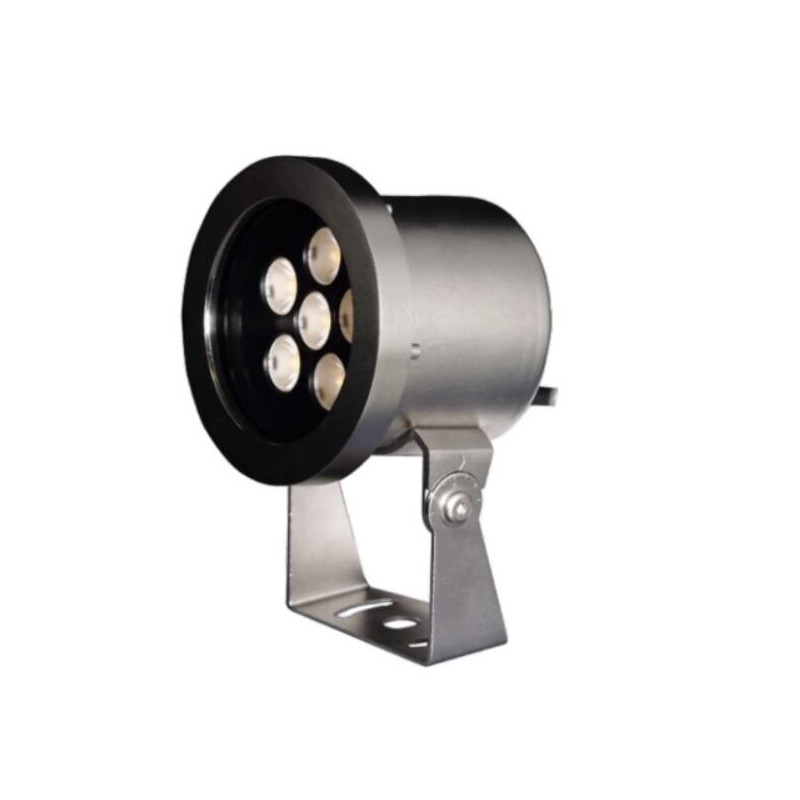

IP68 LED Underwater Pond Spot Lights SUS316 Stainless Steel

The COMI LANDSCAPE LIGHTING SUS 316 stainless steel IP68 underwater pond light is suitable as underwater flood lights or underwater spotlight for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.

Features and Benefits:
▪  Light source: 6pcsx2W/3W/4W, 1piece 15W COB LED
▪  Single color, RGB, RGBW available.
▪  Input voltage: 24VDC (12VDC available).
▪  Underwater ground and wall surface mount by bracket.
▪  Projection angle adjustable.
▪  Completely stainless steel SUS 316 housing & accessory
▪  Standard non-dimmable. Optional DALI, 1-10 V, PWM Dimmable or DMX 512 controllable.
▪  IP68 waterproof,underwater installation in depth less than 1meter.
▪  Use the silicone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture.
▪  SUS 316 stainless steel bracket included.
▪  2 Years warranty.

Warning notes for comi landscape lighting's IP68 LED pool lightWarning:
▪  This IP68 luminaire (swimming pool lights underwater) is all made of SUS 316 stainless steel, so it must be installed underwater to prevent the light from burning up because of over-heating.

Technical Parameters of LED Underwater Lights:

Item No. Control Mode Color Light Source
Beam Angle
(Θ1/2)(°)
Input Voltage
Rated
Power
Luminous Flux
(lm)±10%
IK Rate
B5BE0115 ON/OFF
Single Color
2700-10000K

1×15W
Cree COB LED

15°,25°,36° 24VDC 15W 900 IK10
B5BE0657 ON/OFF
Single Color
2700-6500K

6pcs×3W
Osram LED

5°, 15°,25°
,36°,60°

24VDC 16W 850 IK10
B5BE0618 PWM RGB 6×3W
RGB 3-in-1
Full Color LED
25°, 40°,60° 24VDC 18W 380 IK10
B5BE0620 PWM RGBW

6×4W
RGBW 4-in-1
Full Color LED

25°, 40°,60° 24VDC 18W 542 IK10

Notes:
1. Optional PWM, 0-10V, DALI, DMX512 control;
2. Specifications of IP68 24V or 12V LED waterproof lights are subjected to change without notice.



Light Distribution Curve of swimming pool lights underwater:

light distribution curve for swimming pool lights underwater



Applications of marine underwater lights:

IP68 underwater light show are suitable for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.

applications for marine underwater lights
