12x3W 1x20W LED Underwater Light Surface Mount Installation

The COMI LANDSCAPE LIGHTING SUS 316 stainless steel IP68 LED Underwater Flood lights is suitable as underwater flood lights for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.

Features and Benefits:
▪  High power 20-36W and with High brightness Output
▪  Light source: 12pcsx2W/3W/4W, 1piecex20W COB LED
▪  Single color, RGB, RGBW available.
▪  Input voltage: 24VDC (12VDC available).
▪  Underwater ground and wall surface mount by bracket.
▪  Projection angle adjustable.
▪  Completely stainless steel SUS 316 housing & accessory
▪  Standard non-dimmable. Optional DALI, 1-10 V, PWM Dimmable or DMX 512 controllable.
▪  IP68 waterproof,underwater installation in depth less than 1meter.
▪  Use the silicone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture.
▪  SUS 316 stainless steel bracket included.
▪  2 Years warranty.

Warning notes for comi landscape lighting's IP68 LED pool lightWarning:
▪  This IP68 luminaire (submersible pool lights) is all made of SUS 316 stainless steel, so it must be installed underwater to prevent the light from burning up because of over-heating.

Technical Parameters of LED Underwater Lights:

Item No. Control Mode Color Light Source
Beam Angle
(Θ1/2)(°)
Input Voltage
Rated
Power
Luminous Flux
(lm)±10%
IK Rate
B5BE0120 ON/OFF
Single Color
2700-6500K

1×20W
Cree COB LED

15°,25°,36° 24VDC 20W 1440 IK10
B5BE1257 ON/OFF
Single Color
2700-10000K
12×3W Osram LED

5°, 15°,25°
,36°,60°

24VDC 24W 1680 IK10
B5BE1218 PWM RGB 12×3W
RGB 3-in-1
Full Color LED
25°, 40°,60° 24VDC 36W 648 IK10
B5BE1220 PWM RGBW

12×4W
RGBW 4-in-1
Full Color LED

25°, 40°,60° 24VDC 36W 1081 IK10

Notes:
1. Optional PWM, 0-10V, DALI, DMX512 control;
2. Specifications of IP68 underwater pond lights are subjected to change without notice.

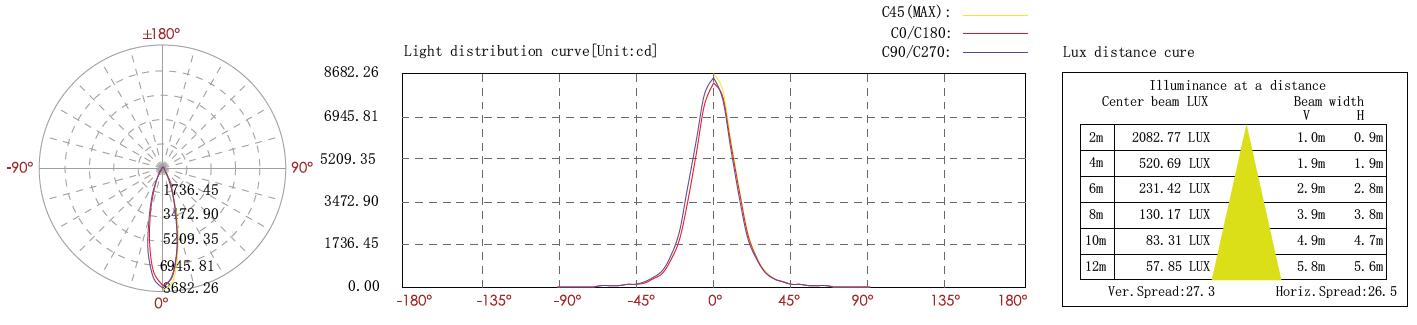

Light Distribution Curve of IP68 waterproof LED lights for pools:

light distribution curve for underwater flood lights for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting



Applications of underwater LED pool lights:

IP68 submersible pool lights are suitable for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.

Applications of underwater LED pool lights
