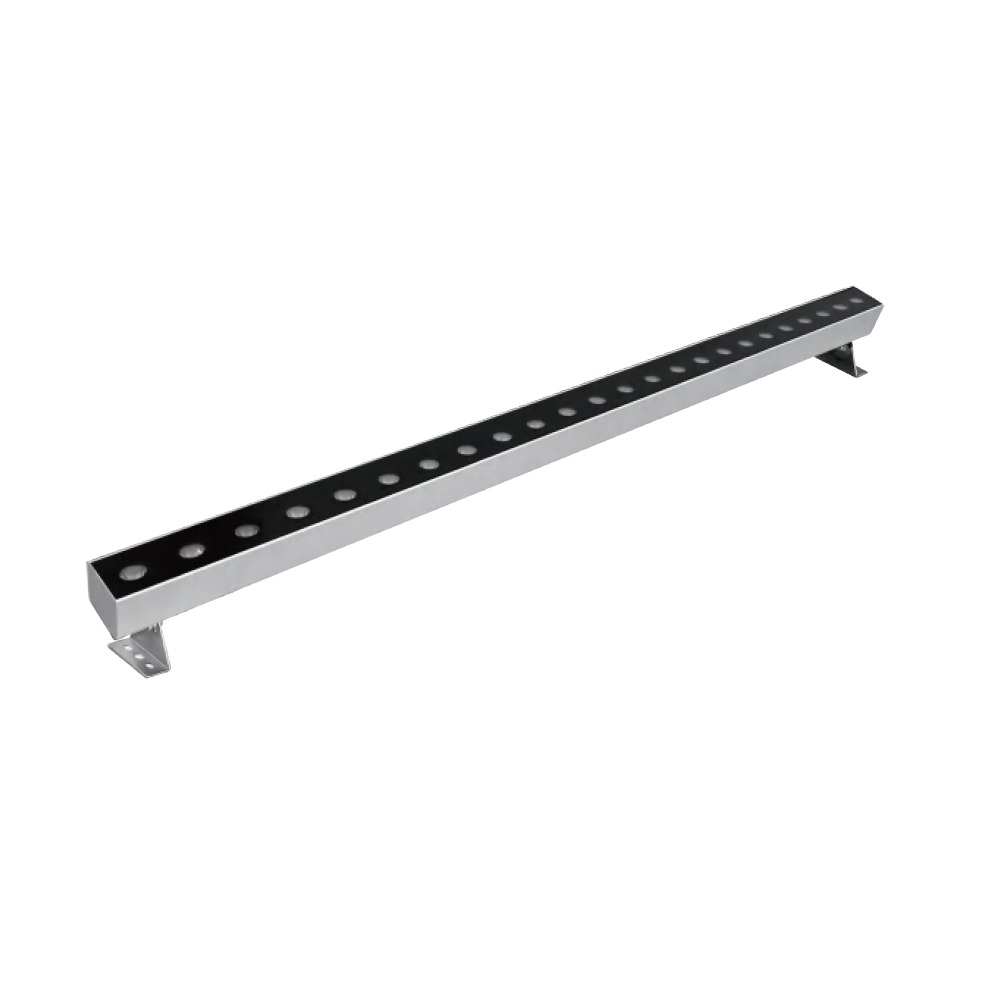

316 Stainless Steel LED Underwater Linear Light with bracket IP68

The COMI LANDSCAPE LIGHTING surface mounted SUS 316 stainless Steel IP68 LED underwater linear light with an adjustable bracket is a durable and versatile lighting option for underwater applications such as fountains, pools, ponds, and water gardens.

Features and Benefits:
▪  Length Options: 275mm, 500mm, and 1000mm.
▪  Corrosion-Resistant Housing:
   (1) The lamp housing is made of SUS316 stainless steel and temper glass;
   (2) highly resistant to corrosion, ensuring longevity and durability in underwater environments or other outdoor harsh conditions.
▪  LED Quantity: The linear light features 24pcs of 1W LEDs per meter.
▪  Power: 6W(6LEDs, 275mm), 12W(12LED, 500mm), 24W(24LEDs, 1000mm).
▪  Various single-color for options:
   (1) CCT(K) including 2100K, 2700K, 3000K, 4000K, 5000K, and 6000K;
   (2) Allowing you to create the desired ambiance.
▪  The light operates on a 24VDC low voltage input, making it safe and energy-efficient.
▪  Beam Angle Options: 10°, 15°, 25°, 37°, 60°, 1015°, 10x30°, 10x45°, and 10x60°.
▪  IP68 Rated: The light is IP68 rated, indicating its high level of waterproofing and suitability for underwater use.
▪  About Connection for this surface mounted IP68 LED underwater lamp:
   Connect the IP68 LED linear lights to power supply in parallel is advised.
▪  IP68 rating,installed underwater at depths of less than 1 meter.
▪  Installation: Surface mounted by adjustable bracket(included) on ground/wall/ceiling.
▪  Compliance:CE, RoHS.
▪  Warranty:2 Years.

Warning:
It is important to note that this IP68 SUS316 stainless steel luminaire must be installed underwater to prevent the light from overheating and burning out.

ce rohs cri 80 ip68 surface mounted sus 316 stainless steel led underwater linear wall washer

 Technical Parameters of IP68 SUS 316 Stainless Steel LED Underwater Linear Flood Lights:

Item Number
Light
Color
Light Source
Beam
Angle
Inpu Voltage
Typical
Power
Luminous Flux
(lm)±5%
IP
Rate
IK
Rate
B4LA0656
Single
Color
6pcs×1W
Osram LED
10°, 15°,
25°, 37°,
60°,
10x15°,
10x30°, 10x45°,  10x60°
24VDC 6W
Cool white=420LM
Warm white=360LM
IP68 08
B4LA1256
Single
Color
12pcs×1W
Osram LED
24VDC 12W
Cool white=840LM
Warm white=720LM
IP68 08
B4LA2456
Single
Color
24pcs×1W
Osram LED
24VDC 24W
Cool white=1700LM
Warm white=1400LM
IP68 08
Notes:
1. Color: Mono color : 2000K,2400K,2700K, 3000K, 4000K, 6000K, Red,Green, Blue and etc.
2. Specifications are subjected to change without notice.
