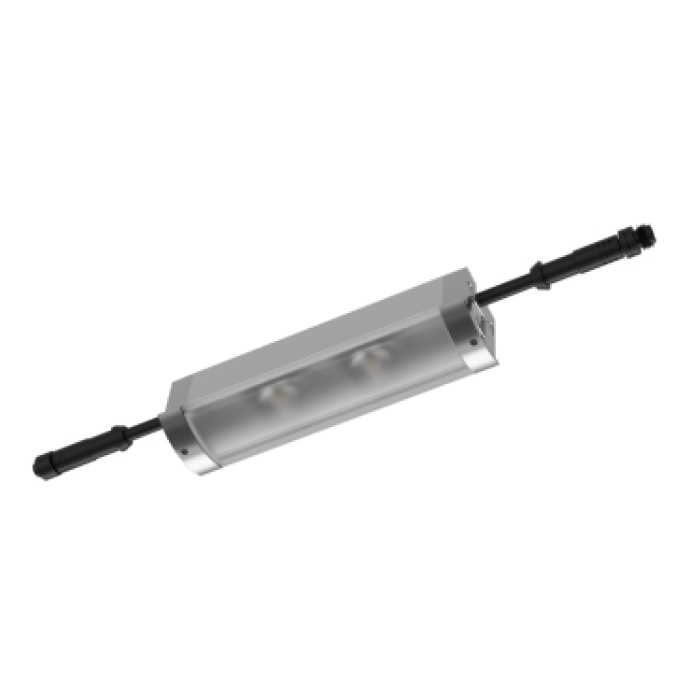

5W IP67 Linear Handrail System Asymmetric or Symmetric light

The 5W Linear LED handrail lighting system is designed for recessed mounted into round shaped surface stainless steel or aluminum alloy handrail tube for under handrail lighting , IP67 rated design and offers various design possibilities in architectural illumination and provides even and pleasant light distribution suitable for both indoor and outdoor, such as villas, parks, squares, garages and residential areas and etc.

Features and benefits:

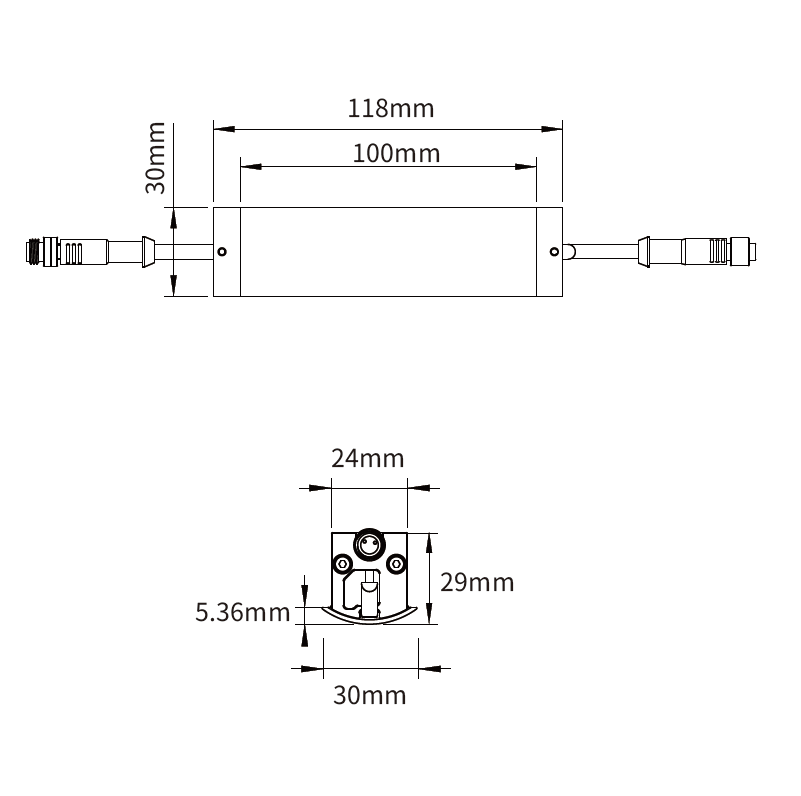

▪ Dimensions: L118*W30*H29mm.
▪ Curve front ring suitable for round handrail tube.

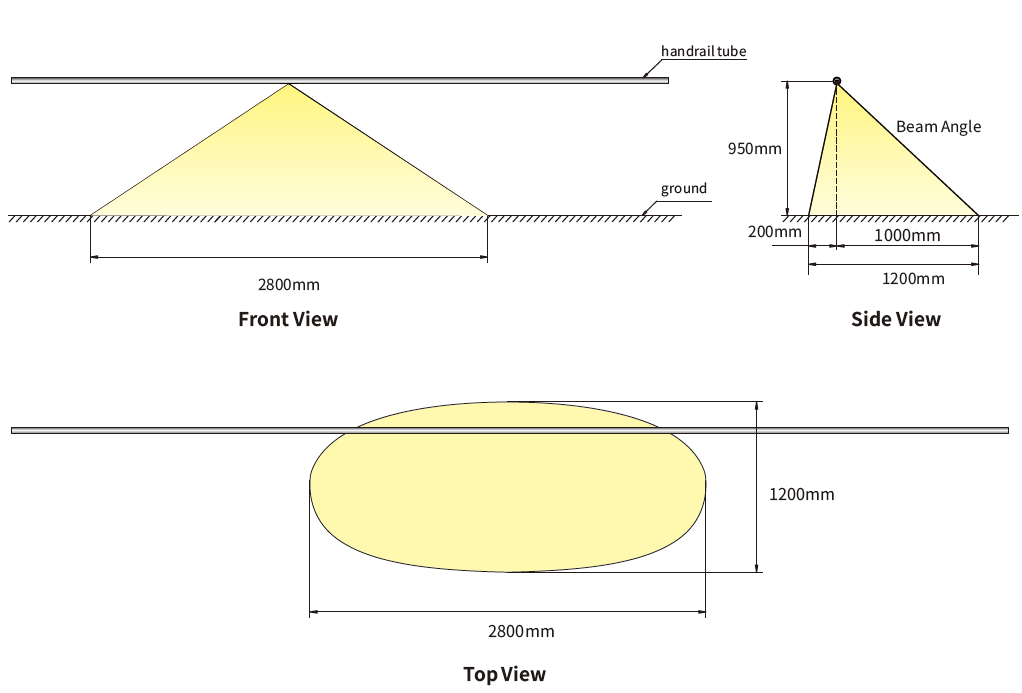

▪ Beam angle for options: Symmetric 90° x 135° , Asymmetric 65° x 125°;
▪ Working voltage: 24VDC
▪ Power: 5W
▪ Light source: 2PCS 2.5W CREE SMD LED.
▪ Luminous Flux: >460LM@3000K.
▪ Light color:single color (2700~6500K).
▪ CRI: Ra>80 (CRI90+ available).
▪ Materials: Aluminum alloy housing, Clear PMMA diffuser.
▪ Easy recessed mounted and maintenance.
▪ Suitable for Suit for ∅48-52mm round handrail tube with wall thickness 1-2mm.

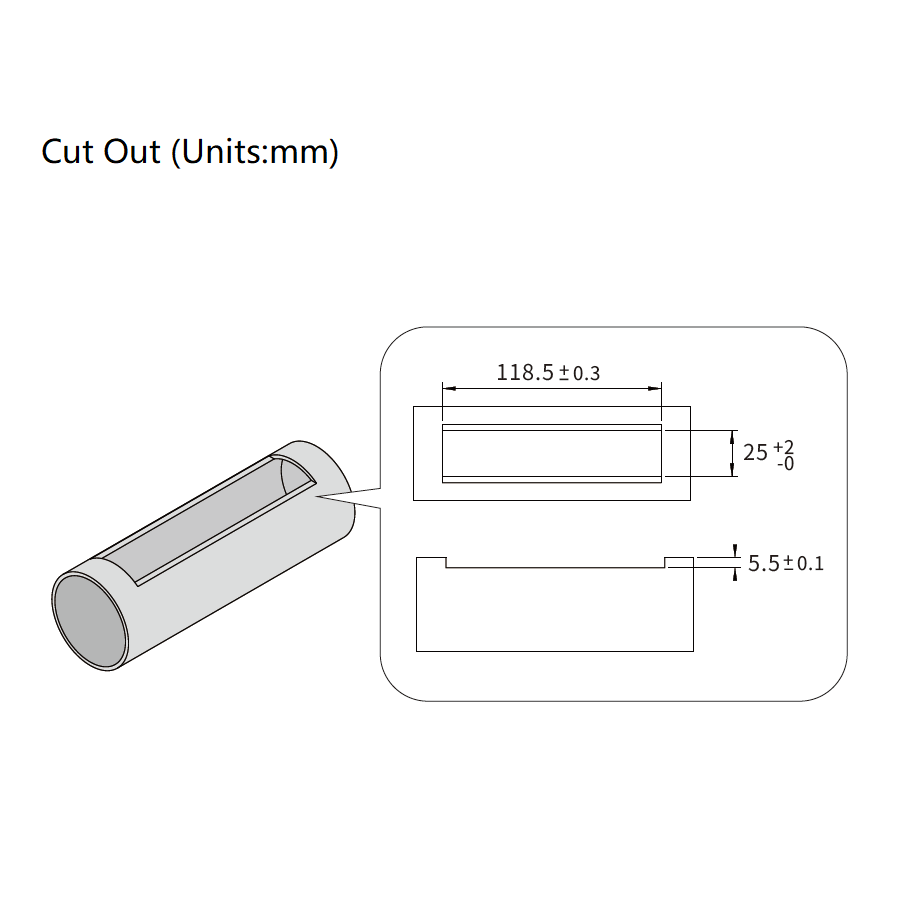

▪ Cut out: L118.5*W25MM.
▪ Maximum connected power no more than 100W.
▪ Average life time: 30000 hours@70% lumen depreciation.
▪ IP Rate: IP67 Waterproof (don't submerse into water).
▪ Ambient Temperature: -20℃ ~ +45℃.
▪ Warranty: 2 Years warranty.
