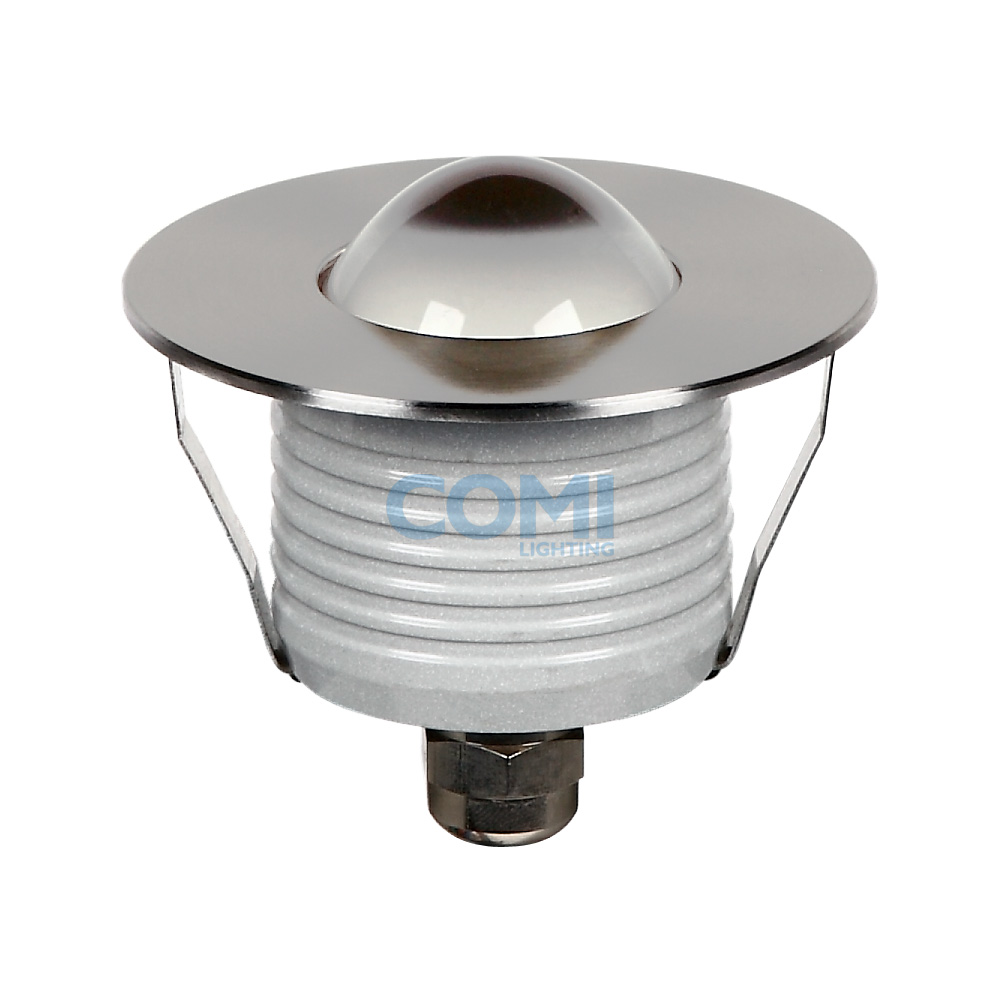

D1UA and D1UB Series Recessed LED Wall Recessed Outline Lights

The COMI Landscape lighting's D1U-series LED wall light & Outline Light is designed for wall or ceiling and offers various design possibilities in architectural illumination.

Features and benefits:
▪ 45°  spherical lens.
▪ RGB,RGBW or Single color are available.
▪ Weather-resistant painting ensures the high maintenace of the fitting.
▪ Front ring with or without screws holes for options.
▪ Offers various installation methods
(1) Installation with mounting sleeve(in thick wall).
(2) Installation with clips, fix on the ceiling.
(3) Installation without mounting sleeve(in thick wall) by screws.
▪ Black back Plastic mounting sleeve included.
▪ IPclassification: IP65 (for outdoor use).
▪ 2 Years warranty.


D1UA and D1UB LED wall recessed Outline Lights


Material Specifications:

Housing 12# Die-casting grey powder coated aluminum.
T=60-80μm Adhesion of ISO class 1/ASTM class 4B
Front Ring Staines steel SUS 316#
Lens Optical Glass
Operating Temperature
-20˚C~40˚C
Waterproof Seal
Rubber seal
Mounting Sleeve(Included) PVC



Technical Specifications:

Item No.
Light Source
Lens Degree
Selected(Θ1/2)
Input voltage
(V)
Typical Operating
Current(mA)
Typical Power
Consumption(W)
Typical
luminance(LM)
IK
Rate
D1UA0102
1×3W
45
24VDC
120/240
24V=110
120V=48
240V=28
24V=2.6
120V=3.3
240V=3.3
Cool white=31
Warm white=27
09
D1UA0106

1×3W
RGB 3in1
Full color

45
24VDC
R=38
G=53
B=54
3.5
46
09
D1UB0102
1×3W
45
24VDC
120/240
24V=110
120V=48
240V=28
24V=2.6
120V=3.3
240V=3.3
Cool white=31
Warm white=27
09
D1UB0106
1×3W
RGB 3in1
Full color
45
24VDC
R=38
G=53
B=54
3.5
46
09
Notes:
1. Color: Mono (2000K,2400K,2700K, 3000K, 4000K, 6000K, Red,Green, Blue and etc.) , RGB, RGBW
2. Specifications are subjected to change without notice.


Installation Methods for D1U series LED Wall recessed outline lights
