Features:

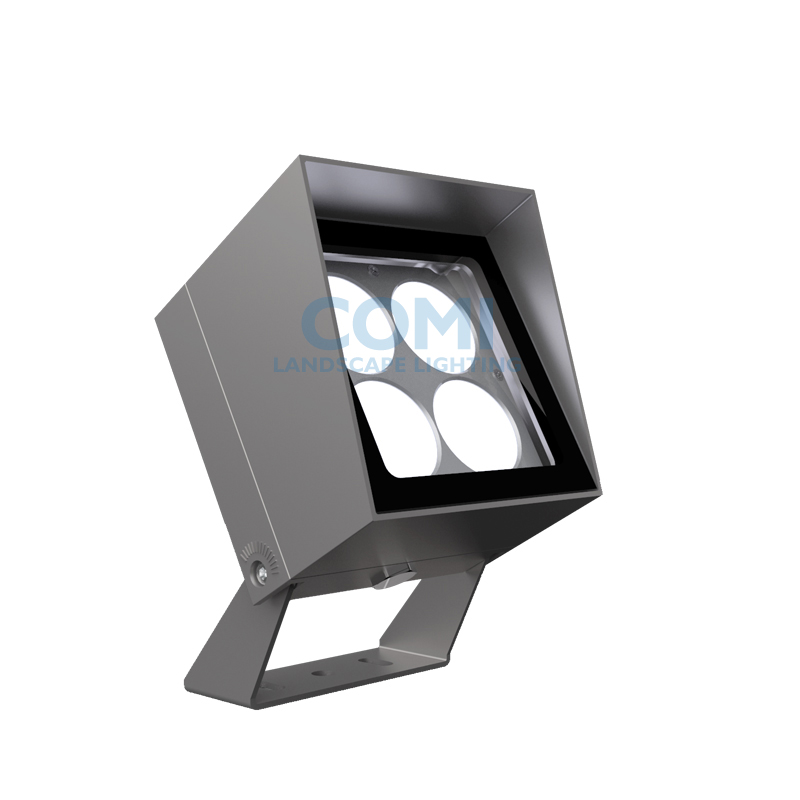

▪ Flood light with hood (also named as light shield, light barrier, or Light visor);
▪ Optional function: lighting beam angle and brightness adjusted by touch screen.
▪ Uniform light spot, no hollow, no edge yellow spots.
▪ Color: single color, RGBW (Tunable white or RGB are available).
▪ High light efficiency: 80~100LM/W.
▪ Ultra narrow beam angle to wide beam angle for options:
2.5°, 4.5°, 6°, 8°, 12°, 20°, 30°, 45°, 60°,10X70°,5X20°,15X60° and etc.
▪ Vertical lighting projection direction adjustable.
▪ Smart Product parts can be quickly disassembled and exchanged:
(1) to meet different kinds lighting application installation requirement;
(2) It is convenient for long-distance upgrade and maintenance.
▪ Optional smart Product parts:
(1) Round base; (2) Spike (Stake); (3)U-shape Bracket; (4) Pole mounted hoop;
(5) Dia. 48 lamp arm; (6) Bracket with Tree strap; (7) Pole mounted screw Fixed parts.
(8) Honeycomb louver for anti-glare light output.
▪ Optional ON/OFF(CC), 0-10V, DALI, DMX 512/RDM Control Support.
▪ Protection grade IP66, suitable for outdoor harsh environments.
▪ Materials: Aluminum alloy.
▪ Ambient Temperature: -25℃∽+50℃
▪ Ambient Humidity: 10%∽90%
▪ 3- or 5-years warranty.
Technical Specifications:
| Item No. | Control Mode | Color | Light Source |
Beam Angle
(Θ1/2)(°)
|
Input Voltage |
Rated
Power
|
Luminous Flux
(lm)
|
IK Rate |
|
B3ZC04020H-X |
CC, DALI,
0-10V |
Single Color |
4pcs Cree
or Osram LED
|
2.5°, 4.5°, 8°, 12°,
20°, 30°, 45°, 60°
,10×70°, 5×20°
|
100-264VAC
50/60Hz
|
20W
|
1800~2000LM | IK10 |
| B3ZC04030H-X |
DMX512/
RDM
|
RGBW
4-in-1
Full Color
|
4pcs Cree
4-in-1 LED
|
8°, 15°, 20°,30°,
15×60°
|
24VDC
|
30W
|
1050LM | IK10 |
| B3ZC04030H-X |
DMX512/
RDM
|
RGBW
4-in-1
Full Color
|
4pcs Osram
4-in-1 LED
|
3.5° |
24VDC
|
30W
|
1050LM | IK10 |
|
B3ZC08020H-X |
CC, DALI, |
Single Color |
8pcs
Osram LED
|
6°, 15°, 20°,
30°, 45°,
20×40°, 15×25°
|
24VDC, or
100-240VAC
50/60Hz
|
20W
|
1800~2000LM | IK10 |
| Z3ZC16018H-X |
Touch Screen
|
Single Color |
16pcs
Cree LED
|
7～36°
Photoelectron
zoom
|
24VDC, or
100-305VAC
50/60Hz
|
18W | 1600~1800LM | IK10 |
| B3ZC01020H-X |
CC, DALI,
|
Single Color |
1pcs
20W Cree COB LED |
12° , 24° , 38° , 45° ,60° |
100-264VAC
50/60Hz
|
20W | 1800~2000LM | IK10 |
Notes:
1. (U) in rated power stands for "U-shape bracket model only";
About Photoelectron zoom functional Zoomdim series LED Flood light with 4-in-1 modular lens and touch panel&screen, please view details in this link>> Zoomdim Series LED Flood Lights with Photoelectron zoom function
Item Number named method:
| B | 3 | Z | C | 4 | 020 | H or Blank | -X |
|
Lens Type: B-Symmetrical Lens Z: 4-in-1 modular lens for Photoelectron zoom |
Series-3:
LED Architecture and |
Zoomdim Series |
Code No. for lamp housing |
LED Quantity | Power of lighting fixture |
H: Flood lights with Hood (light shield/ visor) |
Installation Mode/ Part |
Zoomdim LED Flood light with various Parts for options for installation (X) to meet different applications:
| Picture |
 |
 |
 |
 |
 |
 |
 |
| Name of Parts |
Round base |
U-shape Bracket |
Spike (stake) |
Dia. 48mm arm |
Pole hoop |
Screws fixed type base |
Tree strap |
| Installation modes | Surface Mount on the ground, wall or Ceiling |
Surface Mount on the ground, wall or Ceiling |
On Ground mount by spike (stake) |
Installed onto dia. 48mm pole arm | Pole Mount by hoop | Pole mount by screws fixed type base& screws | LED floodlight mount on tree or pole by strap. |
| Code No. for Parts | B | U | S | A | H | L | T |
Applications:
The LED flood lighting fixture is designed and suitable for outdoor lighting for park, hotel, villa, plaza, museum, stadium, sculpture, monument, tree, temple, church, mountain and etc.
