IP65 6x3W or 4W Dimming LED Landscape Accent Light with Spike

3QB-series product is a high power LED architectural & landscape spot light with small size which is discreet and place the focus on the light itself and particularly advantageous in compact room situations. This 3QB-series product not only provides standard arm with optional round base or with ground spike, but also offers extensive mounting accessories enables the luminaire to install in a wide variety of outdoor applications. single color, RGB or RGBW color are available. The product is optional non-dimmable, PWM, 0/1-10V, DALI, TRIAC dimmable or DMX512 support. IP65 designed is ideal solutions for outdoor applications.

Features and benefits:
▪ Small luminaire is discreet and place the focus on the light itself which particularly advantageous in compact room situations.
▪ Standard concealed cable type round base or spike:
  (1) Round base for wall, ground or ceiling surface mounting.
  (2) Ground spike for ground mounting.
▪ Light distributions: narrow spot, spot, flood, wide flood, extra wide flood or wall-wash.
▪ Optional light accessories for soft light: honey comb louver, honeycomb glass and filter.
▪ Optional lamp body color: grey and black.
▪ With optional other extensive mounting accessories enables the luminaire to install in a wide variety of outdoor applications.
  (1) Screw fixed pole mounting Bracket;
  (2) Mounting Bracket with stainless steel tree strap;
  (3) Extended pole(300/500/800/1000mm) with round base (fixed by screws) or spike.
▪ Multiple direction adjustable for projection direction.
▪ Standard input voltage is 24Vdc or 220-240Vac (110-120Vac is available).
▪ Die-cast aluminum lamp housing and spike.
▪ Optional 0/1-10V, DALI, DMX 512, TRIAC dimming or controllable support.
▪ IP65 grade, Dust-tight and water jet-proof.
▪ 3 years warranty (5 years warranty is available upon request).

CE ROHS IP65 single color RGB RGBW LED projector lights


Material Specifications:

Housing 12 Die-casting grey or black powder coated aluminum.
T=50-55μm . Adhesion of ISO class 1/ASTM class 4B
Light Window Clear Temper glass.
Lens Optical lens, efficiency≥90%
LED CREE, OSRAM, EPISTAR and etc LED
PCB Excellent heat conductivity aluminum, coefficient of
Heat Conductivity≥2.0w/mk
LED Driver Integrated  LED driver with Constant current output
Power Cable

▪ 0.5meters H05RN-F 2-core*1.0mm² to open wires (Low voltage)
▪ 0.5meters H05RN-F 3-core*0.75mm² to open wires(High voltage, or Tunable white)
▪ 0.5meters H05RN-F 4-core*0.75mm² to open wires(for RGB)
▪ 0.5meters H05RN-F 5-core*0.50mm² to open wires(for RGBW, or DMX512)

Operating Temperature
-20℃~+40℃
Round Base (included)
Aluminum
Support DALI, 0~10V,PWM, DMX512 control support upon request.





Technical Specifications:

Item Number

Control
Method
Light Source CRI


Optional  Beam
Angle(°)


Input Voltage

Typical Power

Typical Luminous
Flux(lm)
IK
Rate
B3QCB0658
ON/OFF
6×3W
CREE LED
Single Color
Ra>80
6°, 12°,
25°,40°, 60°
24VDC
110-120VAC
220-240VAC
24V=11.6
110V=12.8
240V=12.8
Cool White=861
Warm White=696
IK06
B3QCB0618
PWM
6×3W
RGB 3-in-1
Full Color
/
6°, 12°,
25°,40°, 60°
24VDC 12.6
278 IK06
B3QCB0618DMX
DMX
6×3W
RGB 3-in-1
Full Color
/
6°, 12°,
25°,40°, 60°
24VDC
12.6
278 IK06
B3QCB0620
PWM
6×4W
RGBW 4-in-1
Full Color
/
6°, 12°,
25°,40°, 60°
24VDC
16.5 398
IK06
B3QCB0620DMX
DMX
6×4W
RGBW 4-in-1
Full Color
/
6°, 12°,
25°,40°, 60°
24VDC
16.5 398
IK06
B3QCB0125
ON/FF
1×25W
CREE COB LED
Single Color

Ra>80
18°, 24°,
38°, 60°
24VDC
110-120VAC
220-240VAC
24V=18.2
110V=18.2
240V=18.2
Cool White=881
Warm White=706
IK06

Notes:
1. Optional color or Color Temperature for single color:
   Very warm white(2200k), Warm White(2700-3000K)/ Neutral White(4000-4500K)/Cool White(6000-6500K)/Red /Blue /Green and others.
2. 12VDC working voltage is available;
3. DMX512, TRIAC, PWM, DALI,0/1-10V dimming or controllable support upon request;
4. Specifications are subjected to change without notice.



Optional Various Optical Accessories for 0/1-10V, DALI,TRIAC,PWM dimming or DMX512 control Mono/ RGB/ RGBW LED Architectural and Landscape Flood / Spotlights:

Optional Various Optical Accessories for 0-10v DALI TRIAC PWM dimming or DMX512 control architectural and landscape flood or spotlights

Note:
These lighting accessories enables the luminaire with soft light or anti-glare light output.




Optional extensive mounting accessories enables the luminaire to install in a wide variety of outdoor applications:

Comi landscape Lighting_optional extensive mounting accessories enables the luminaire to install in a wide variety of outdoor applications

(1) (2) Round base: for ground/wall/ceiling surface mounting.
(3) Extended pole(300/500/800mm) with round base (fixed by screws)
(4)(5) Ground spike: ground mounting.

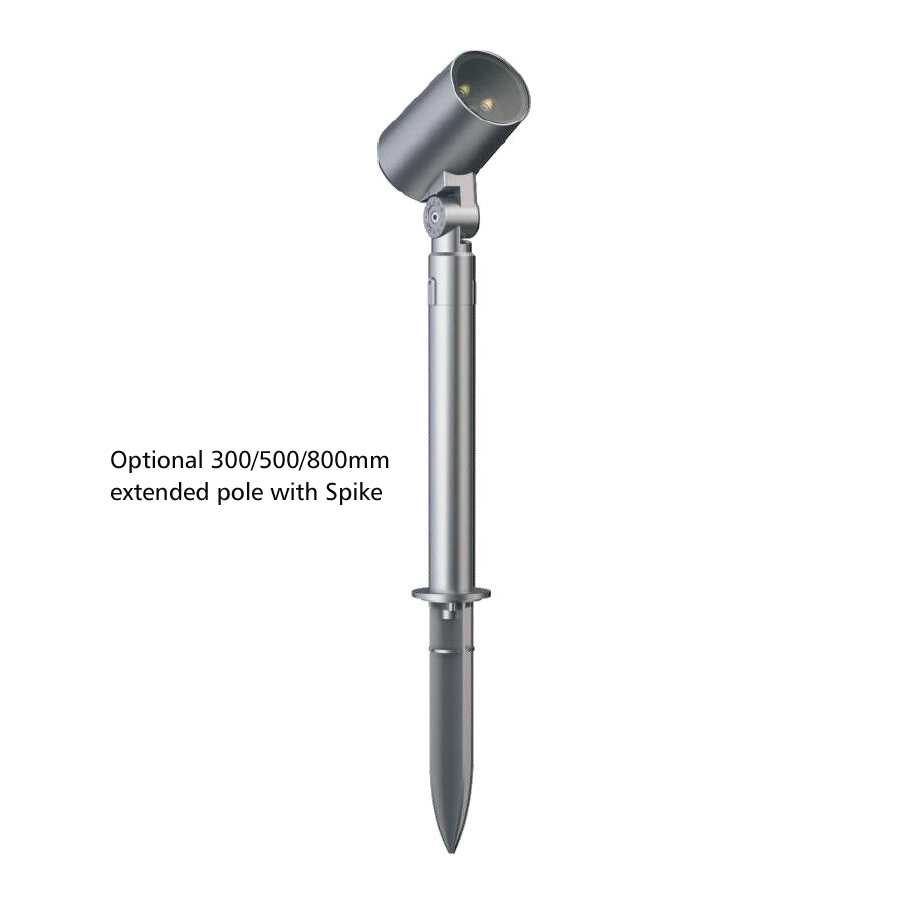

(6) Extended pole(300/500/800mm) with ground spike
(7) Mounting Bracket with stainless steel tree strap: for mounted on tree.
(8) Screw fixed pole mounting Bracket: mounted on pole.
